9 | Software Operation

9.10.6.1 Export as JSON

196 / 319

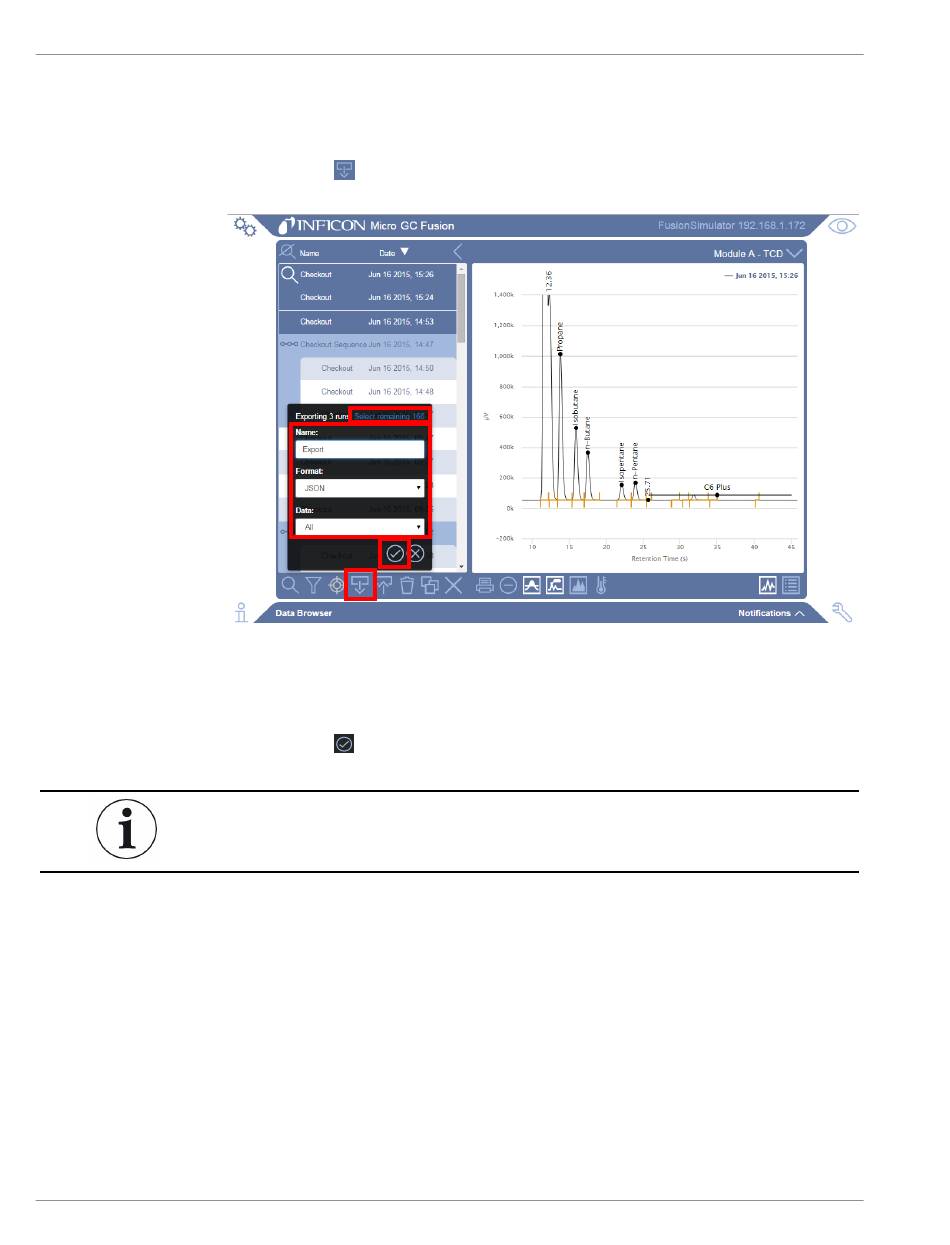

1 Select the run(s).
2 Click the icon. The export dialog box allows the user to export all of the runs
stored on the instrument by clicking Select remaining link in the top right corner.
3
Type the file name in the Name: field. This name is saved onto the computer.
4
From the Format: shortcut menu, select JSON.
5
From the Data: shortcut menu, select All or Compound Trend.
6
Click the icon. The file(s) are downloaded to the browser's default downloads
folder.
A single file has a .fusion-data extension. Multiple files download as a .zip file
containing multiple files with a .fusion-data extension.
