INFICON
9.7.4 Viewing Coordinates
074-594-P1H Micro GC Fusion Operating Manual

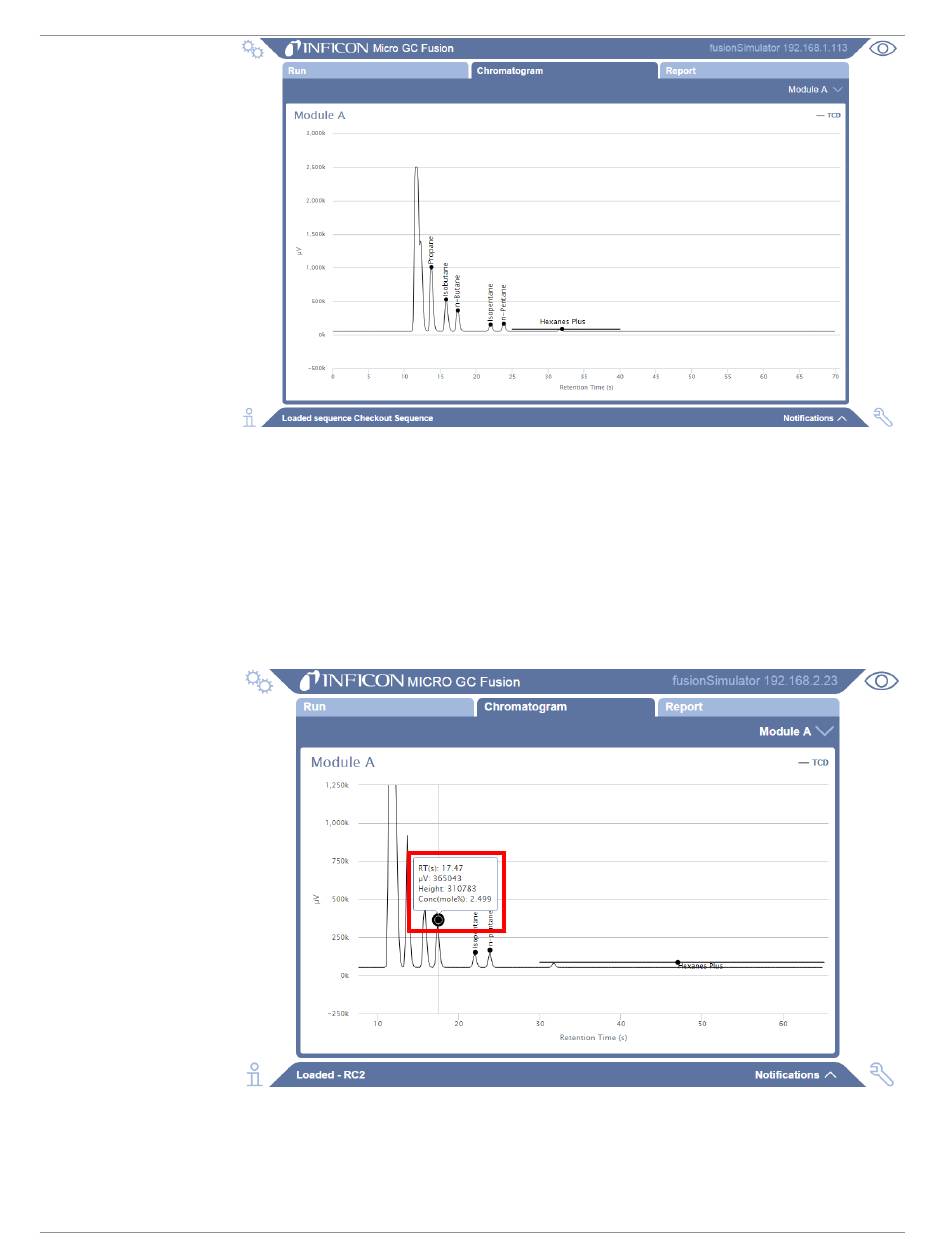

Hover the mouse over a region of the chromatogram to display a rolling black ball and
a legend displaying x and y coordinates points on the chromatogram. The x axis is the
retention time in seconds. The y axis is the peak height in µV.
If hovering over a named peak, the RT(s) and the Height in µV are displayed.
If the peak has been calibrated, Conc (mol%) or Conc (ppm) are displayed.
Software Operation | 9
181 / 319
