7 | Connecting to a Sample

7.6.1 Sample Bag Sampling Kits

7.6.2 Installing a SS Adapter onto a Sample Bag

144 / 319

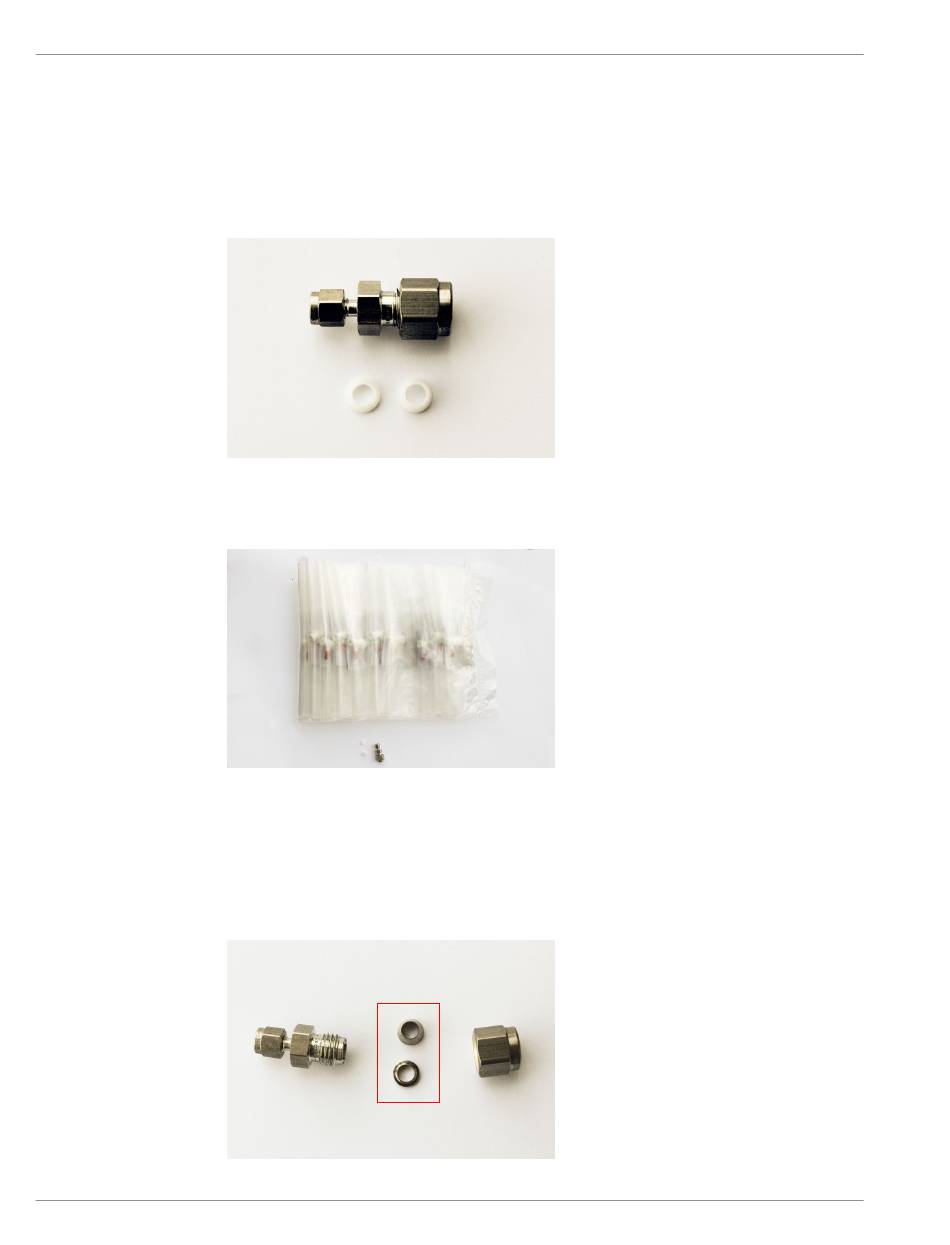

The Ship Kit - SS Adapter for Sample Bag (PN 952-026-G1) includes a 3/16 in. to 1/16
in. stainless steel reducing union (PN 059-0298), a Teflon front ferrule (PN 059-0263)
and a Teflon back ferrule (PN 059-0264) to adapt the polypropylene tube fitting on a
sample bag to a 1/16 in. stainless steel sample line.
The Ship Kit - SS Adapter and 10/Pack 3L Sample Bag (PN 952-027-G1) includes one
Ship Kit - SS Adapter for Sample Bag (PN 952-026-G1) and ten 3 L sample bags with
polypropylene screw cap valve (PN 070-1726).
1
Remove the 3/16 in. nut from the reducing union (PN 059-0298).
2
Remove the stainless steel front and back ferrules from the 3/16 in. stainless
steel nuts.
