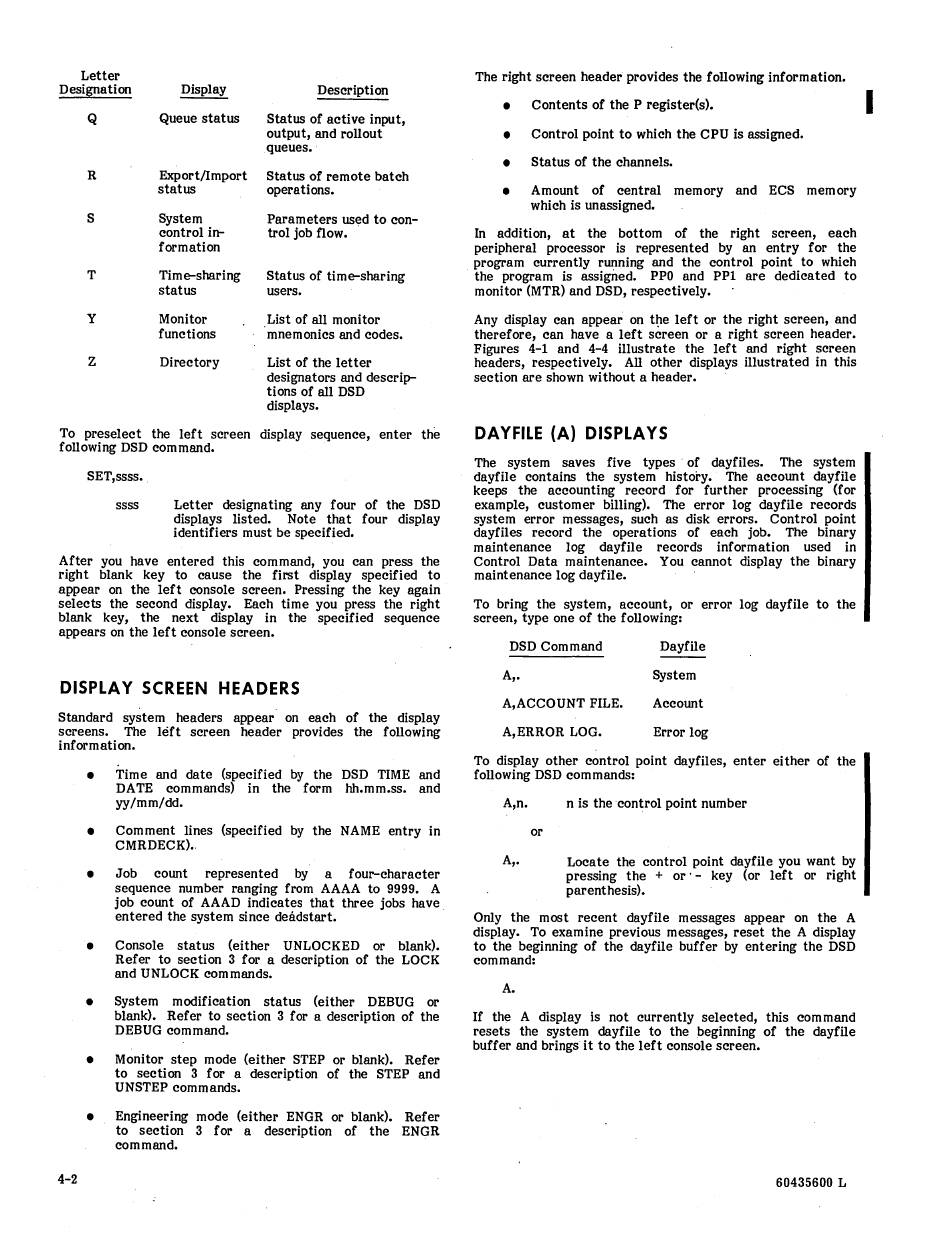

Letter
Designation Display
Description
Q Queue status
Status of active input,
output, and rollout
queues •.
R Export/lmport
Status of remote batch
status
operations.
S
System Parameters used to con-
control in-
trol job flow.
formation
T Time-sharing
Status of time-sharing
status
users.
y
Monitor
List of all monitor
functions mnemonics and codes.
Z Directory List of the letter
designators and descrip-
tions of all DSD
displays.
To preselect the left screen display sequence, enter the
following DSD command.
SET,ssss.
ssss Letter designating any four of the DSD
displays listed. Note that four display
identifiers must be specified.
After you have entered this command, you can press the
right blank key to cause the first display specified to
appear on the left console screen. Pressing the key again
selects the second display. Each time you press the right
blank key, the next display in the specified sequence
appears on the left console screen.
DISPLAY SCREEN HEADERS
Standard system headers appear on each of the display
screens. The left screen header provides the following
information.
• Time and date (specified by the DSD TIME and
DATE commands) in the form hh.mm.ss. and
yy/mm/dd.
• Comment lines (specified by the NAME entry in
CMRDECK) •.
• Job count represented by a four-character
sequence number ranging from AAAA to 9999. A
job count of AAAD indicates that three jobs have.
entered the system since deadstart.
• Console status (either UNLOCKED or blank).
Refer to section 3 for a description of the LOCK
and UNLOCK commands.
• System modification status (either DEBUG or
blank). Refer to section 3 for a description of the
DEBUG command.
• Monitor step mode (either STEP or blank). Refer
to section 3 for a description of the STEP and
UNSTEP commands.
• Engineering mode (either ENGR or blank). Refer
to section 3 for a description of the ENGR
command.
The right screen header provides the following information.
• Contents of the P register(s).
• Control point to which the CPU is assigned.
• Status of the channels.
• Amount of central memory and ECS memory
which is unassigned.
In addition, at the bottom of the right screen, each
peripheral processor is represented by an entry for the
program currently running and the control point to which
the program is assigned. PPO and PP1 are dedicated to
monitor (MTR) and DSD, respectively.
Any display can appear on tl)e left or the right screen, and
therefore, can have a left screen or a right screen header.
Figures 4-1 and 4-4 illustrate the left and right screen
headers, respectively. All other displays illustrated in this
section are shown without a header.
DAYFILE (A) DISPLAYS
The system saves five types' of dayfiles. The system
dayfile contains the system history. The account dayfile
keeps the accounting record for further processing (for
example, customer billing). The error log dayfile records
system error messages, such as disk errors. Control point
dayfiles record the operations of each job. The binary
maintenance log dayfile records information used in
Control Data maintenance. You cannot display the binary
maintenance log dayfile.
To bring the system, account, or error log dayfile to the
screen, type one of the following:
DSD Command
A,.
A,ACCOUNT FILE.
A,ERROR LOG.
Dayfile
System
Account
Error log
To display other control point dayfiles, enter either of the
following DSD commands:
A,n. n is the control point number
or
A,. Locate the control point dayfile you want by
pressing the
+
or' - key (or left or right
parenthesis).
Only the most recent dayfile messages appear on the A
display. To examine previous messages, reset the A display
to the beginning of the dayfile buffer by entering the DSD
command:
A.
If
the A display is not currently selected, this command
resets the system dayfile to the beginning of the dayfile
buffer and brings it to the left console screen.
