DIS JOB STATUS (B) DISPLAY

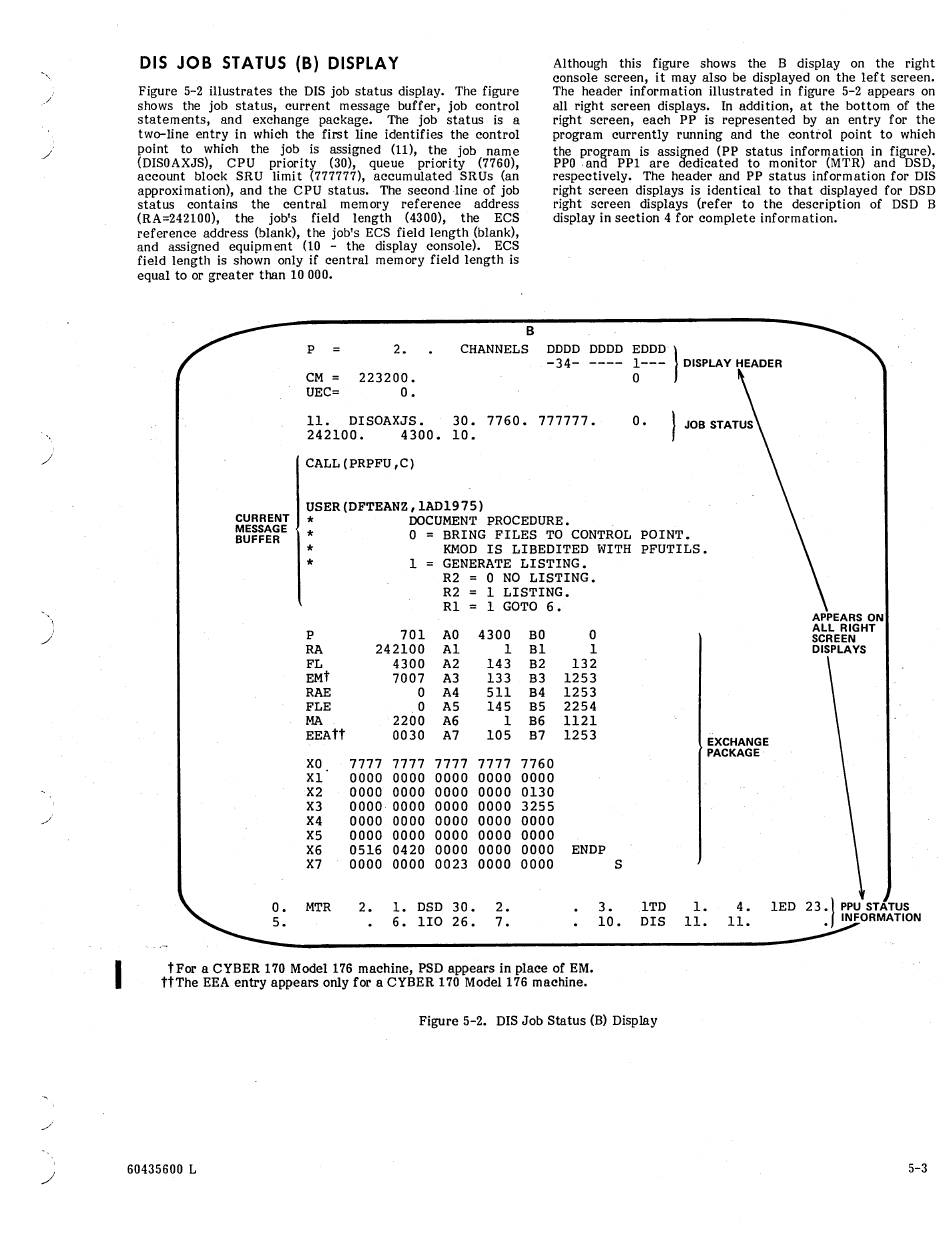

Figure 5-2 illustrates the DIS job status display. The figure
shows the job status, current message buffer, job control
statements, and exchange package. The job status is a
two-line entry in which the first line identifies the control
point to which the job is assigned (11), the job name
(DISOAXJS), CPU priority (30), queue priority (7760),
account block SRU limit
(777777),
accumulated SRUs (an
approximation), and the CPU status. The second line of job
status contains the central memory reference address
(RA=242100), the job's field length (4300), the ECS
reference address (blank), the job's ECS field length (blank),
and assigned equipment (10 - the display console). ECS
field length is shown only if central memory field length is
equal to or greater than 10000.
P
CM
UEC=
2.
223200.
O.
B
CHANNELS
Although this figure shows the B display on the right
console screen, it may also be displayed on the left screen.
The header information illustrated in figure 5-2 appears on
all right screen displays. In addition, at the bottom of the
right screen, each PP is represented by an entry for the
program currently running and the control point to which
the program is assigned (PP status information in figure) •
PPO ·ana PP1 are dedicated to monitor (MTR) and DSD,
respectively. The header and PP status information for DIS
right screen displays is identical to that displayed for DSD
right screen displays (refer to the description of DSD B
display in section 4 for complete information.
DDDD DDDD EDDD
I
-34- ~---
DISPLAY HEADER
11. DISOAXJS. 30. 7760. 777777.
o.
242100. 4300. 10.
CALL (PRPFU,C)
USER(DFTEANZ,IADI975)
CURRENT
*
DOCUMENT PROCEDURE.
MESSAGE
BUFFER
* 0
BRING FILES TO CONTROL
*
KMOD IS LIBEDITED WITH
*
1 GENERATE LISTING.
R2
o
NO LISTING.
R2
=
1 LISTING.
Rl
=
1 GOTO 6.
P 701 AO 4300 BO 0
RA 242100 Al 1 B1 1
FL 4300 A2 143 B2 132
EMt
7007 A3 133 B3
1253
RAE 0 A4 511 B4 1253
FLE 0 AS 145 B5 2254
MA
2200 A6 1 B6 1121
EEAtt
0030 A7 105 B7
1253
XO 7777 7777 7777 7777 7760
Xl 0000 0000 0000 0000 0000
X2 0000 0000 0000 0000 0130
X3 0000 0000 0000 0000 3255
X4 0000 0000 0000 0000 0000
X5 0000 0000 0000 0000 0000
X6 0516 0420 0000 0000 0000 ENDP
X7 0000 0000 0023 0000 0000
S
MTR 2. I. DSD 30. 2. 3.
6. 110 26. 7. 10.
tFor a CYBER 170 Model 176 machine, PSD appears in place of EM.
ttThe EEA entry appears only for a CYBER 170 Model 176 machine.
POINT.
PFUTILS.
ITO I.
DIS
II.
Figure 5-2. DIS Job Status (B) Display
60435600 L
APPEARS ON
ALL RIGHT
SCREEN
DISPLAYS
EXCHANGE
PACKAGE
4. lED 23.}
PPU STATUS
II.
• INFORMATION
5-3
