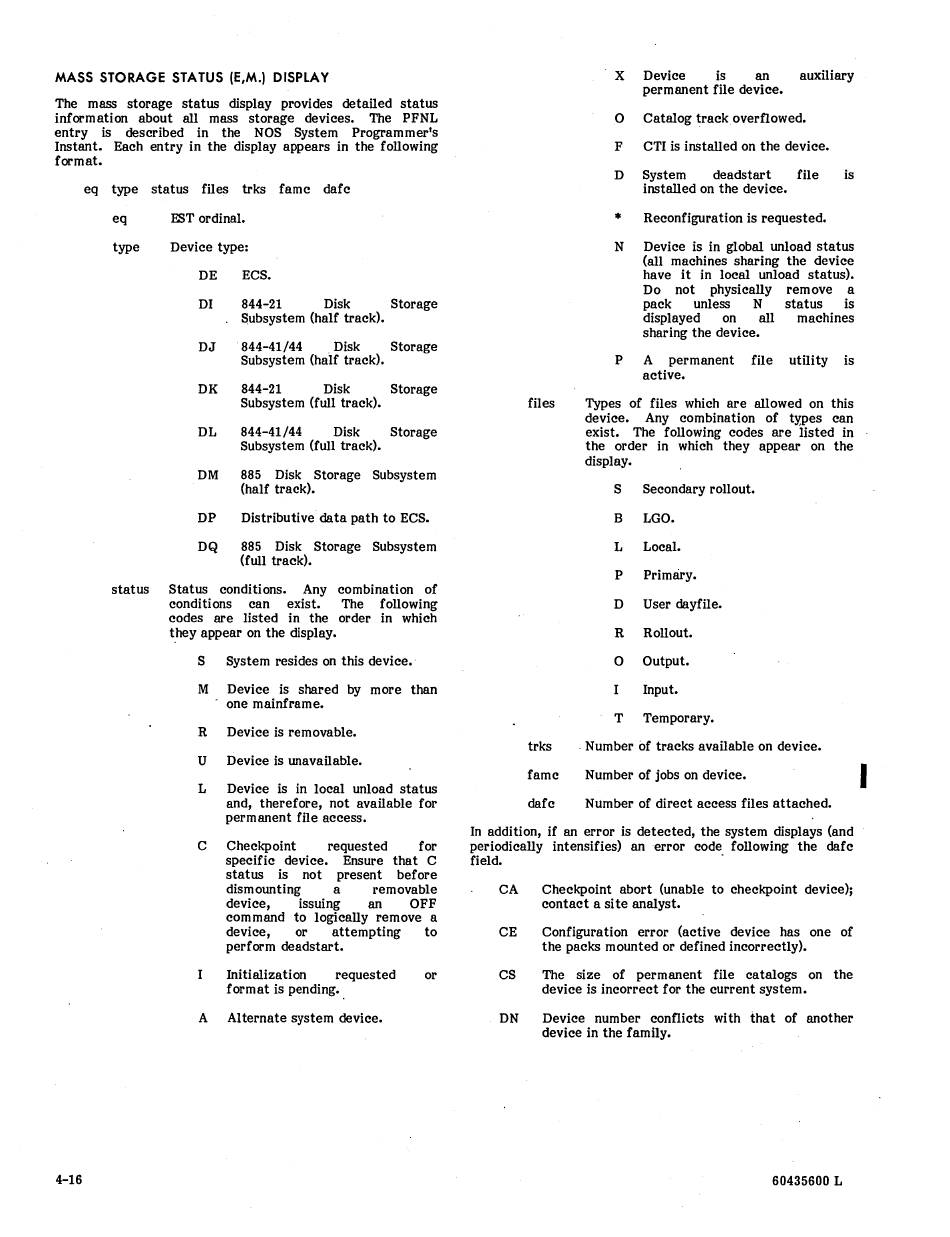

MASS STORAGE STATUS (E,M.) OISPLA Y
The mass storage status display provides detailed status
information about all mass storage devices.
The PFNL
entry is described in the NOS System Programmer's
Instant. Each entry in the display appears in the following
format.
4-16
eq type status files trks famc dafc
eq
type
EST ordinal.
Device type:
DE
ECS.
DI
844-21
Disk
Storage
Subsystem (half track).
DJ
·844-41/44
_
Disk
Storage
Subsystem (half track).
DK
844-21
Disk
Storage
Subsystem (full track).
DL
844-41/44
Disk
Storage
Subsystem (full track).
DM
885
Disk Storage Subsystem
(half track).
DP
Distributive data path to ECS.
DQ
885
Disk Storage Subsystem
(full track).
status
Status conditions.
Any combination of
conditions
can
exist.
The
following
codes are listed in the order in which
they appear on the display.
S
System resides on this device.-
M
Device is shared by more than
one mainframe.
R
Device is removable.
U
Device is unavailable.
L
Device is in local unload status
and, therefore, not available for
permanent file access.
C
Checkpoint
requested
for
specific device.
Ensure that C
status is not
present before
dismounting
a
removable
device,
issuing
an
OFF
command to logically remove a
device,
or
attempting
to
perform deadstart.
Initialization
requested
or
format is pending.
A
Alternate system device.
files
X
Device
is
an
auxiliary
permanent file device.
o
Catalog track overflowed.
F
CTI is installed on the device.
D
System
deadstart
file
is
installed on the device.
*
Reconfiguration is requested.
N
Device is in global unload status
(all machines sharing the device
have it in local unload status).
Do not
physically remove
a
pack
unless
N
status
is
displayed
on
all
machines
sharing the device.
P
A permanent
file
utility
is
active.
Types of files which are allowed on this
device.
Any combination of types can
exist. The following codes are listed in
the order in which they appear on the
display.
S
Secondary rollout.
B
LGO.
L
Local.
P
Primary.
D
User dayfile.
R
Rollout.
0
Output.
Input.
T
Temporary.
trks
-Number of tracks available on device.
famc
Number of jobs on device.
dafc
Number of direct access files attached.
In addition, if an error is detected, the system displays (and
periodically intensifies) an error code following the dafc
fi~~
-
CA
Checkpoint abort (unable to checkpoint device);
contact a si te analyst.
CE
Configuration error (active device has one of
the packs mounted or defined incorrectly).
CS
The size of permanent file catalogs on the
device is incorrect for the current system.
DN
Device number conflicts with that of another
device in the family.
60435600 L
