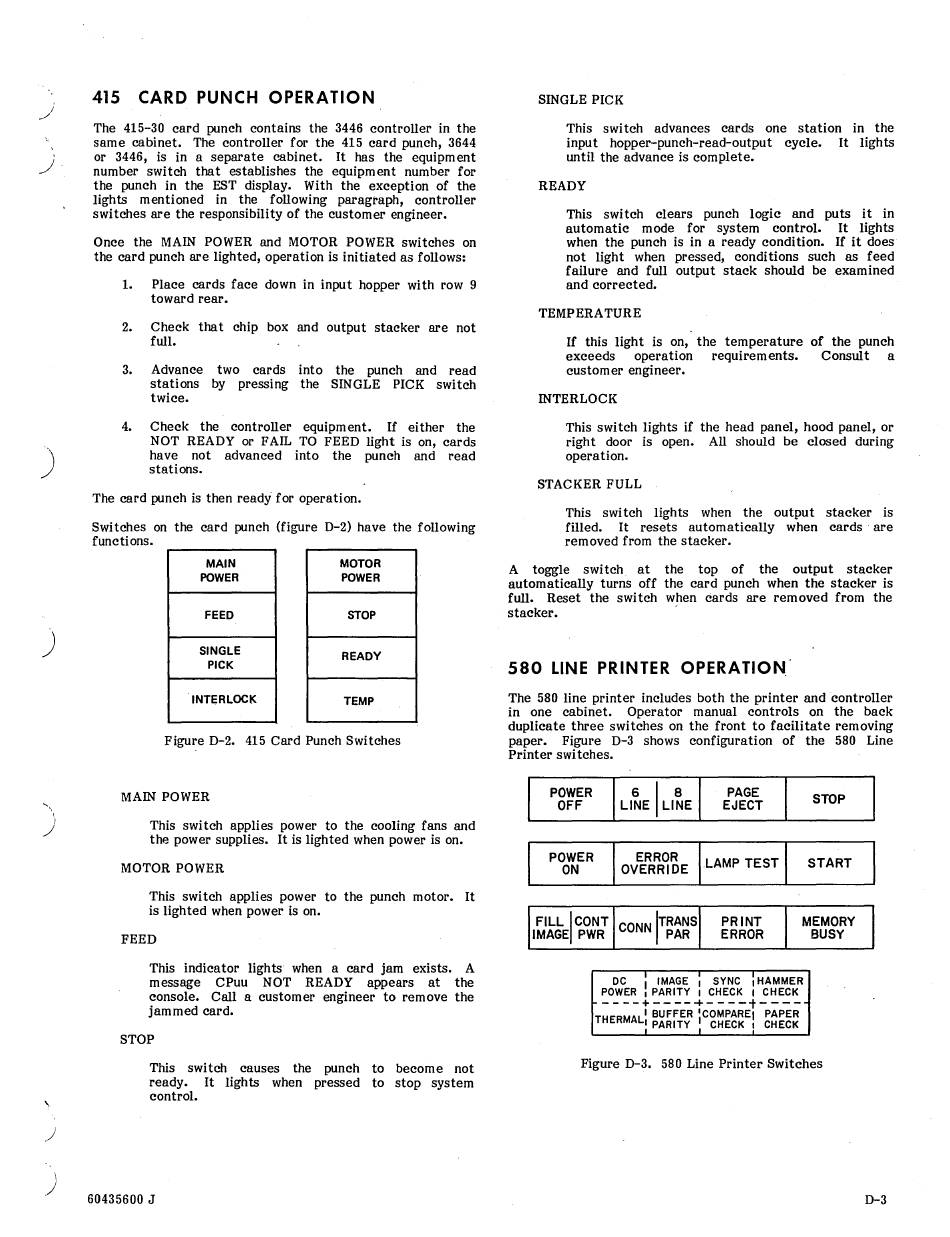

415 CARD PUNCH OPERATION
The 415-30 card punch contains the 3446 controller in the
same cabinet. The controller for the 415 card punch, 3644
or 3446, is in a separate cabinet.
It
has the equipment
number switch that establishes the equipment number for
the punch in the EST display. With the exception of the
lights mentioned in the following paragraph, controller
switches are the responsibility of the customer engineer.
Once the MAIN POWER and MOTOR POWER switches on
the card punch are lighted, operation is initiated as follows:
1. Place cards face down in input hopper with row 9
toward rear.
2. Check that chip box and output stacker are not
full.
3. Advance two cards into the punch and read
stations by pressing the SINGLE PICK switch
twice.
4. Check the controller equipment. If either the
NOT READY or FAIL TO FEED light is on, cards
have not advanced into the punch and read
stations.
The card punch is then ready' for operation.
Switches on the card punch (figure D-2) have the following
functions.
MAIN
POWER
FEED
SINGLE
PICK
INTERLOCK
MOTOR
POWER
STOP
READY
TEMP
Figure D-2. 415 Card Punch Switches
MAIN POWER
This switch applies power to the cooling fans and
the power supplies.
It
is lighted when power is on.
MOTOR POWER
This switch applies power to the punch motor.
It
is lighted when power is on.
FEED
This indicator lights when a card jam exists. A
message CPuu NOT READY appears at the
console. Call a customer engineer to remove the
jam m ed card.
STOP
This switch causes the punch to become not
ready.
It
lights when pressed to stop system
control.
60435600 J
SINGLE PICK
This switch advances cards one station in the
input hopper-punch-read-output cycle. It lights
until the advance is complete.
READY
This switch clears punch logic and puts it in
automatic mode for system control.
It
lights
when the punch is in a ready condition. If it does
not light when pressed, conditions such as feed
failure and full output stack should be examined
and corrected.
TEMPERATURE
If this light is on, the temperature of the punch
exceeds operation requirements. Consult a
customer engineer.
INTERLOCK
This switch lights if the head panel, hood panel, or
right door is open. All should be closed during
operation.
STACKER FULL
This switch lights when the output stacker is
filled. It resets automatically when cards are
removed from the stacker.
A toggle switch at the top of the output stacker
automatically turns off the card punch when the stacker is
full. Reset the switch when cards are removed from the
stacker.
580 LINE PRINTER OPERATION.
The 580 line printer includes both the printer and controller
in one cabinet. Operator manual controls on the back
duplicate three switches on the front to facilitate removing
paper. Figure D-3 shows configuration of the 580 Line
Printer swi tches.
STOP
MEMORY
BUSY
DC
I
IMAGE : SYNC : HAMMER
POWER! PARITY I CHECK I CHECK
----+----+----t----
THERMALI BUFFER :COMPAREI PAPER
: PARITY
I
CHECK
I
CHECK
Figure D-3. 580 Line Printer Switches
