Panel Settings for Coldstart of 7152 Tape Controller:·
from Tape Unit!
I
The specific function of the deadstart program during
coldstart from a tape unit is as follows:
• Identifies the channel and unit number of the tape
unit on which the controlware tape is mounted and
to be read.
• Reads the controlware tape which loads the tape
controller.
The tape unit and the channel used to access the unit are
identified by setting the switches shown in the unshaded
area of the deadstart panel illustrated in figure 2-4. The
tape unit number must be between 10 and 17 and the unit
must be on a channel withouta PP (for example, channel 12
or 13). Refer to appendix H to determine the channels
without a PP at your site.
Binary Octal
1
75tt
2 3615
3 1014
4
1701
5 0576
6 77tt
7
OOuut
10 0300

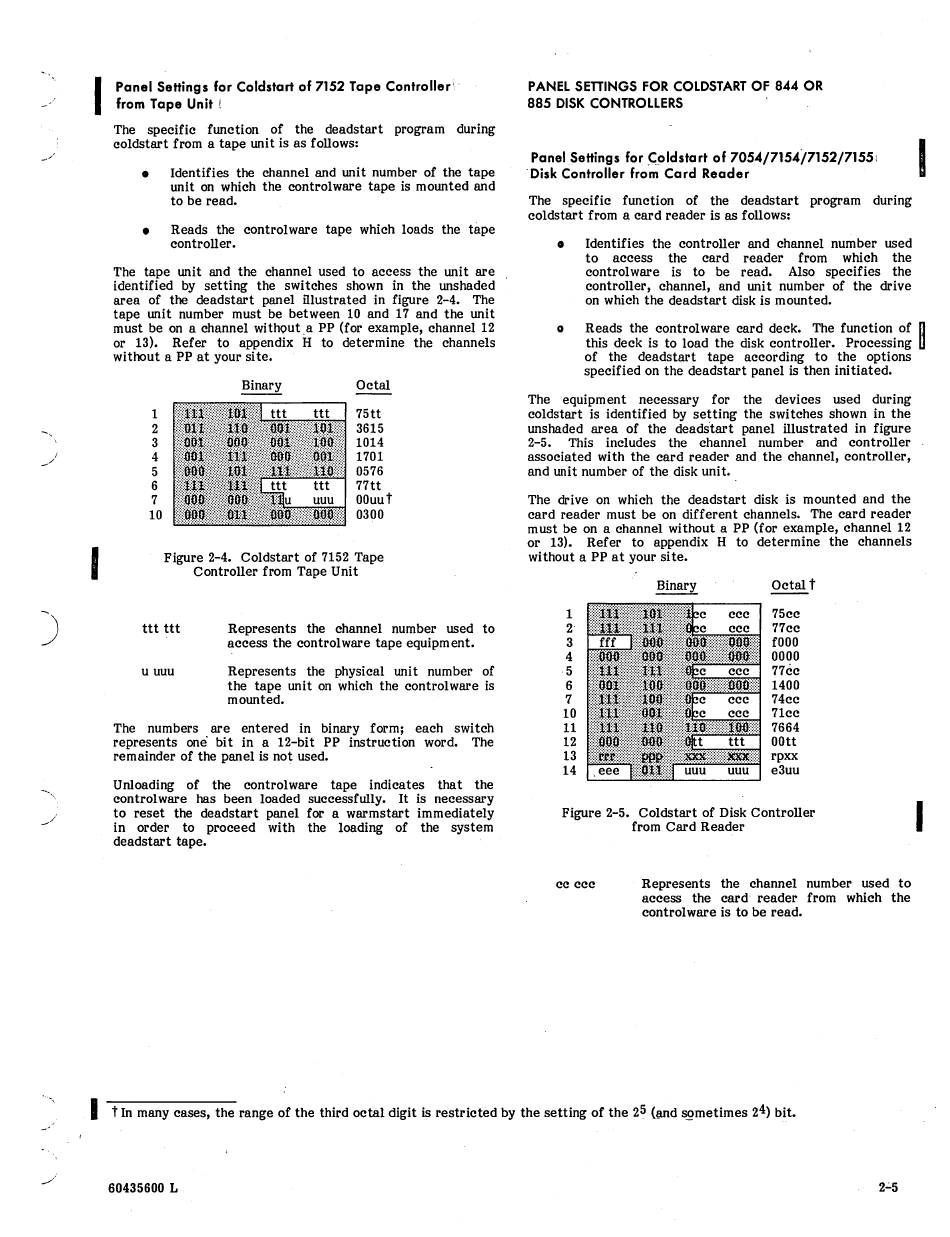

Figure 2-4. Coldstart of 7152 Tape
Controller from Tape Unit
ttt ttt
u uuu
Represents the channel number used to
access the controlware tape equipment.
Represents the physical unit number of
the tape unit on which the controlware is
mounted.
The numbers are entered in binary form; each switch
represents one' bit in a 12-bit PP instruction word. The
remainder of the panel is not used.
Unloading of the controlware tape indicates that the
controlware has been loaded successfully.
It
is necessary
to reset the deadstart panel for a warmstart immediately
in order to proceed with the loading of the system
deadstart tape.
PANEL SETIINGS FOR COLDSTART OF 844 OR
885 DISK CONTROLLERS
Panel Settings for
_C.~ldstart
of 7054/7154/7152/71551
I
. Disk Controller from Card Reader
The specific function of the deadstart program during
coldstart from a card reader is as follows:
•
Identifies the controller and channel number used
to access the card reader from which the
control ware is to be read. Also specifies the
controller, channel, and unit number of the drive
on which the deadstart disk is mounted.
o Reads the control ware card deck. The function of
0
this deck is to load the disk controller. Processing
U
of the deadstart tape according to the options
specified on the deadstart panel is then initiated.
The equipment necessary for the devices used during
coldstart is identified by setting the switches shown in the
unshaded area of the deads'tart panel illustrated in figure
2-5. This includes the channel number and controller
associated with the card reader and the channel, controller,
and unit number of the disk unit.
The drive on which the deadstart disk is mounted and the
card reader must be on different channels. The card reader
must be on a channel without a PP (for example, channel 12
or 13). Refer to appendix H to determine the channels
without a PP at your site.
Binary Octal t
1 75cc
2· 77cc
3 fOOO
4
0000
,5
77cc
6
1400
7
74cc
10
71cc
11
7664
12 OOtt
13 rpxx
14
e3uu
Figure 2-5. Coldstart of Disk Controller
from Card Reader
cc ccc
Represents the channel number used to
access the card reader from which the
controlware is to be read.
I
I
t In many cases, the range of the third octal digit is
restricted by the setting of the 2 5 (and s-2metimes 24) bit.
