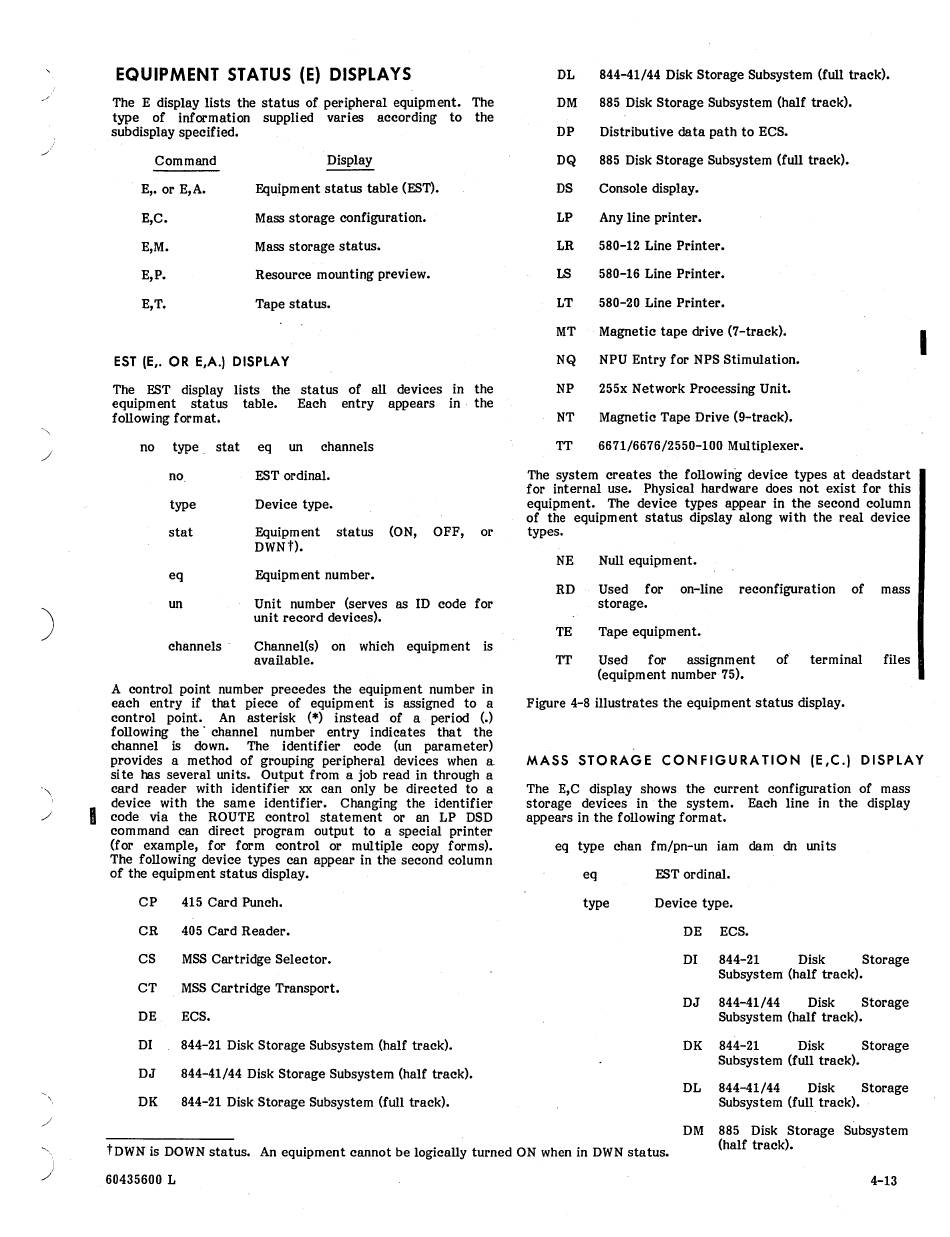

EQUIPMENT STATUS (E) DISPLAYS
The E display lists the status of peripheral equipment. The
type of information supplied varies according to the
sub display specified.
Command
Display
Equipment status table (EST).
E,. or E,A.
E,C. Mass storage configuration.
E,M.
Mass storage status.
E,P.
Resource mounting preview.
E,T. Tape status.
EST (E,. OR E,A.) DISPLAY
The EST display lists the status of all devices in the
equipment status table. Each entry appears in· the
following format.
no type _ stat eq un channels
no
type
stat
eq
EST ordinal.
Device type.
Equipment status (ON, OFF, or
DWNt).
Equipment number.
un Unit number (serves as ID code for
unit record devices).
channels' ChanneI(s) on which equipment is
available.
A control point number precedes the equipment number in
each entry if that piece of equipment is assigned to a
control point. An asterisk
(*)
instead of a period (.)
following the' channel number entry indicates that the
channel
is
down. The identifier code (un parameter)
provides a method of grouping peripheral devices when a.
si te has several units. Output from a job read in through a
card reader with identifier
xx
can only be directed to a
I
device with the same identifier. Changing the identifier
code via the ROUTE control statement or an LP DSD
command can direct program output to a special printer
(for example, for form control or multiple copy forms).
The following device types can appear in the second column
of the equipment status display.
CP 415 Card Punch.
CR 405 Card Reader.
CS MSS Cartridge Selector.
CT MSS Cartridge Transport.
DE ECS.
Dl 844-21 Disk Storage Subsystem (half track).
DJ 844-41/44 Disk Storage Subsystem (half track).
DK 844-21 Disk Storage Subsystem (full track).
OL 844-41/44 Disk Storage Subsystem (full track).
OM 885 Disk Storage Subsystem (half track).
OP Distributive data path to ECS.
OQ 885 Disk Storage Subsystem (full track).
OS Console display.
LP Any line printer.
LR 580-12 Line Printer.
18 580-16 Line Printer.
LT 580-20 Line Printer.
MT Magnetic tape drive (7-track).
NQ NPU Entry for NPS Stimulation.
NP
NT
TT
255x Network Processing Unit.
Magnetic Tape Drive (9-track).
6671/6676/2550-100 Multiplexer.
The system creates the followin'g device types at deadstart
for internal use. Physical hardware does not exist for this
equipment. The device types appear in the second column
of the equipment status dipslay along with the real device
types.
NE Null equipment.
RD Used for on-line reconfiguration of mass
storage.
TE Tape equipment.
IT
Used for assignment of terminal files
(equipment number 75).
Figure 4-8 illustrates the equipment status display.
I
MASS STORAGE CONFIGURATION (E,C.) DISPLAY
The E,C display shows the current configuration of mass
storage devices in the system. Each line in the display
appears in the following format.
eq type chan fm/pn-un iam dam
dn
uni ts
eq EST ordinal.
type Device type.
DE ECS.
Dl 844-21 Disk Storage
Subsystem (half track).
DJ 844-41/44 Disk Storage
Subsystem (half track).
DK 844-21 Disk Storage
Subsystem (full track).
DL 844-41/44 Disk Storage
Subsystem (full track).
tDWN is DOWN status. An equipment cannot be logically turned ON when in DWN status •
DM 885 Disk Storage Subsystem
(half track).
60435600 L
4-13
