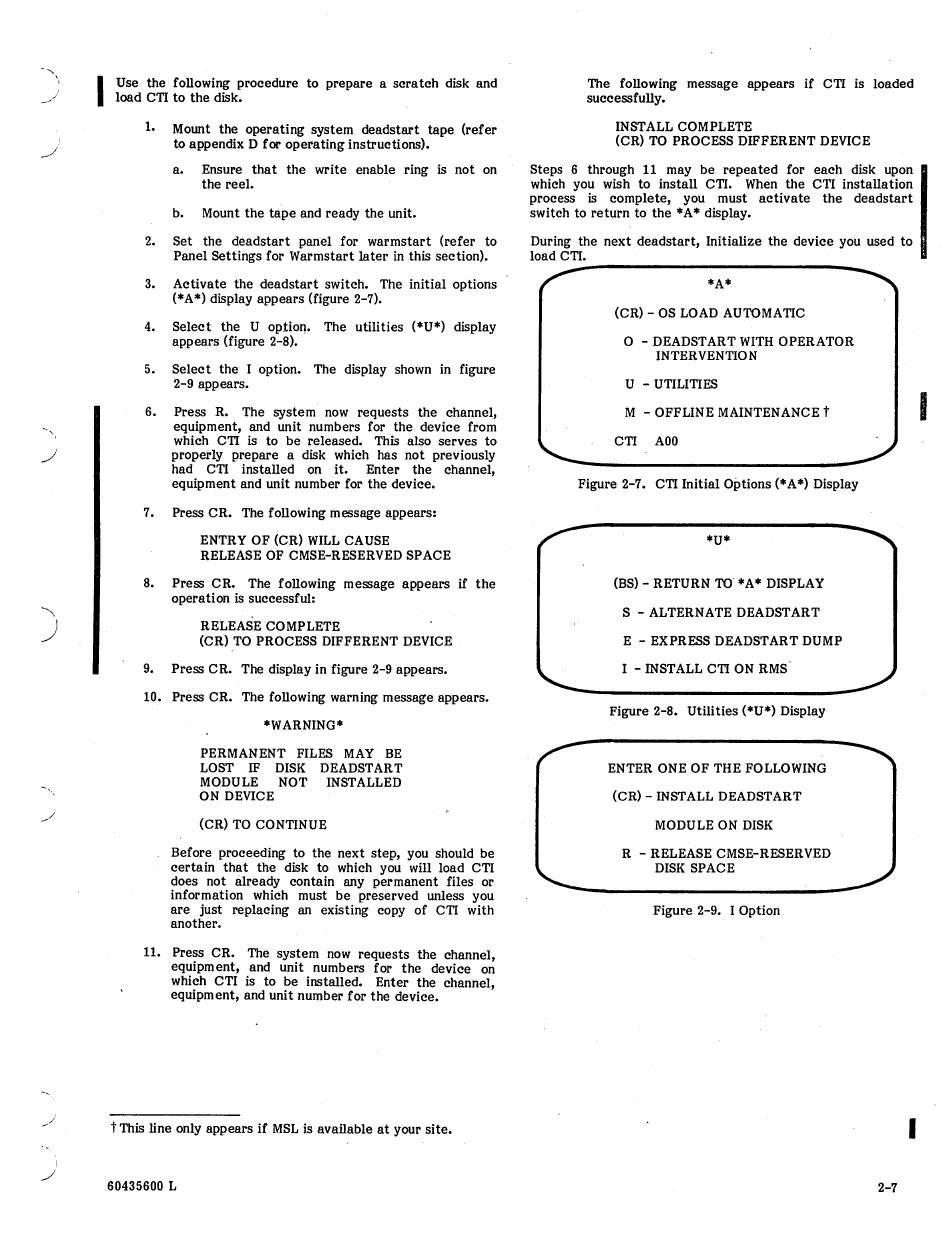

Cti Initial Options (* A *) Display - Control Data Corporation CYBER 170 Series Operator's Manual

../
)
I
./
I
Use the following procedure to prepare a scratch disk and
load CTI to the disk.
1. Mount the operating system deadstart tape (refer
to
appendix D for operating instructions).
2.
3.
4.
5.
6.
7.
8.
9.
a. Ensure that the write enable ring is not on
the reel.
b. Mount the tape and ready the unit.
Set the deadstart panel for warmstart (refer to
Panel Settings for Warmstart later in this section).
Activate the deadstart switch. The initial options
(*A*) display appears (figure 2-7).
Select the U option. The utilities (*U*) display
appears (figure 2-8).
Select the I option. The display shown in figure
2-9 appears.
Press R. The system now requests the channel,
equipment, and unit numbers for the device from
which CTI is to be released. This also serves to
properly prepare a disk which has not previously
had CTI installed on it. Enter the channel,
equipment and unit number for the device.
Press CR. The following message appears:
ENTRY OF (CR) WILL CAUSE
RELEASE OF CMSE-RESERVED SPACE
Press CR. The following message appears if the
operation is successful:
RELEASE COMPLETE
(CR) TO PROCESS DIFFERENT DEVICE
Press CR. The display in figure 2-9 appears.
10. Press CR. The following warning message appears.
*WARNING*
PERMANENT FILES MAY BE
LOST IF DISK DEADSTART
MODULE NOT INSTALLED
ON DEVICE
(CR) TO CONTINUE
Before proceeding to the next step, you should be
certain that the disk to which you will load CTI
does not already contain any permanent files or
information which must be preserved unless you
are just replacing an existing copy of CTI with
another.
11. Press CR. The system now requests the channel,
equipment, and unit numbers for the device on
which CTI is to be installed. Enter the channel,
equipment, and unit number for the device.
t
This line only appears if MSL is available at your site.
60435600 L
The following message appears if CTI is loaded
successfully.
INSTALL COMPLETE
(CR) TO PROCESS DIFFERENT DEVICE
Steps 6 through 11 may be repeated for each disk upon
I
which you wish to install CTI. When the CTI installation
process is complete, you must activate the deadstart
switch to return to the *A* display.
During the next deadstart, Initialize the device you used to
load CTI.
*A*
(CR) - OS LOAD AUTOMATIC
o -
DEADSTART WITH OPERATOR
INTERVENTIO N
U - UTILITIES
M - OFFLINE MAINTENANCE
t
CTI AOO
Figure 2-7. CTI Initial Options (* A *) Display
*U*
(BS) - RETURN TO" *A* DISPLAY
S - ALTERNATE DEADSTART
E - EXPRESS DEADSTART DUMP
I - INSTALL CTI ON RMS
Figure 2-8. Utilities (*U*) Display
ENTER ONE OF THE FOLLOWING
(CR) - INSTALL DEADSTART
MODULE ON DISK
R - RELEASE CMSE-RESERVED
DISK SPACE
Figure 2-9. I Option
I
I
2-7
