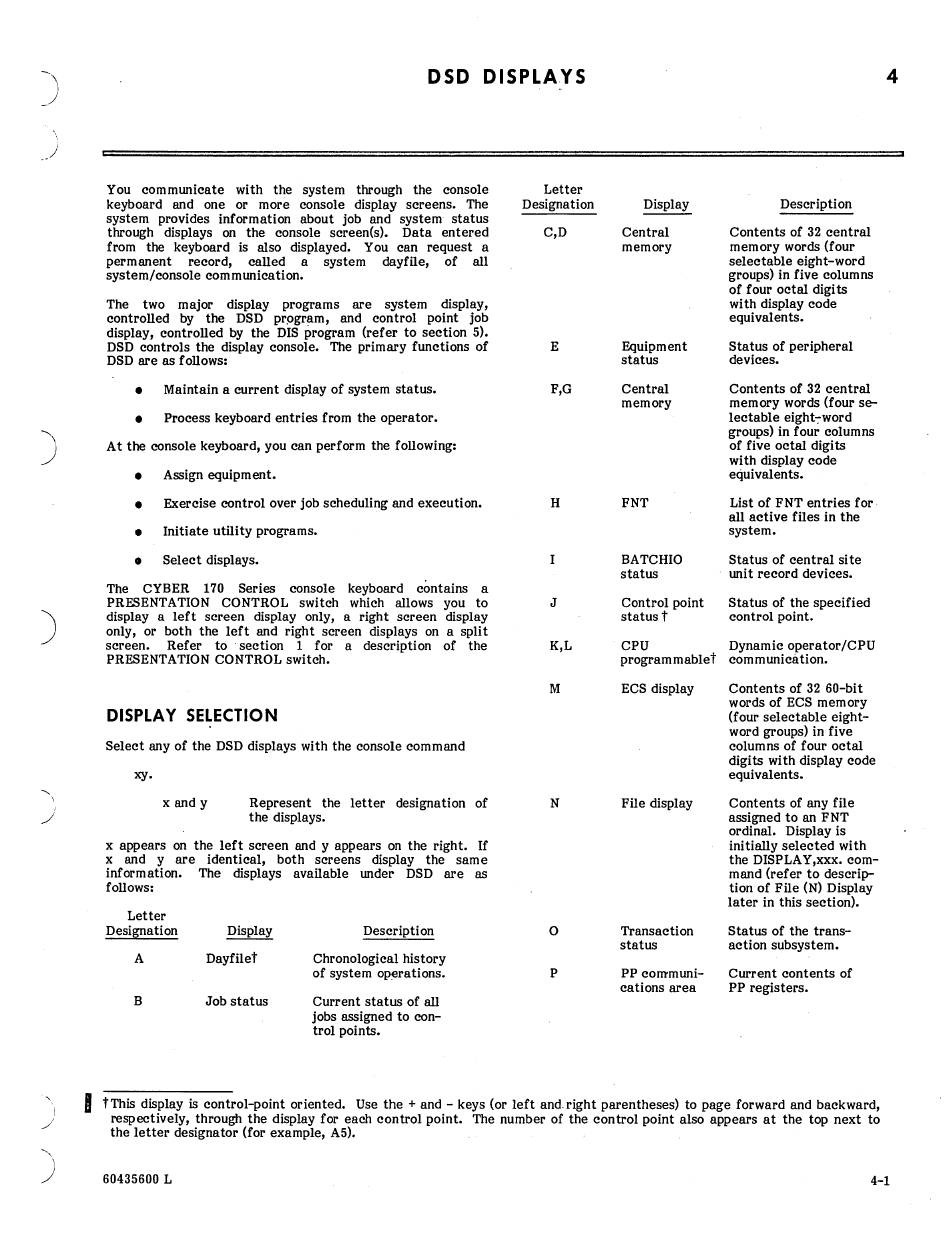

DSD DISPLAYS
You communicate with the system through the console
keyboard and one or more console display screens. The
system provides information about job and system status
through displays on the console screen{s). Data entered
from the keyboard is also displayed. You can request a
permanent record, called a system dayfile, of all
system/console communication.
The two major display programs are system display,
controlled by the DSD prpgram, and control point job
display, controlled by the DIS program (refer to section 5).
DSD controls the display console. The primary functions of
DSD are as follows:
• Maintain a current display of system status.
• Process keyboard entries from the operator.
Letter
Designation
C,D
E
F,G
4
Display Description
Central Contents of 32 central
memory memory words (four
selectable eight-word
groups) in five columns
of four octal digits
wi th display code
equivalents.
Equipment Status of peripheral
status
devices.
Central Contents of 32 central
memory memory words (four se-
lectable eight-:-word
) At the console keyboard, you can perform the following:
groups) in four columns
of five octal digits
wi th display code
)
,/1
I
./
)
• Assign equipment.
• Exercise control over job scheduling and execution.
• Initiate utility programs.
• Select displays.
The CYBER 170 Series console keyboard contains a
PRESENTATION CONTROL switch which allows you to
display a left screen display only, a right screen display
only, or both the left and right screen displays on a split
screen. Refer to· section 1 for a description of the
PRESENTATION CONTROL switch.
DISPLAY SELECTIO N
Select any of the DSD displays with the console command
xy.
x and y Represent the letter designation of
the displays.
x appears on the left screen and y appears on the right. If
x and y are identical, both screens display the same
information. The displays available under DSD are as
follows:
Letter
Designation
A
B
Display
Dayfilet
Job status
Description
Chronological history
of system op~rations.
Current status of all
jobs assigned to con-
trol points.
H
J
K,L
M
N
0
P
equivalents.
FNT List of FNT entries for
all active files in the
system.
BATCHIO Status of central site
status unit record devices.
Control point Status of the specified
status
t
control point.
CPU Dynamic operator/CPU
programmablet communication.
ECS display
Contents of 32 60-bit
words of ECS memory
(four selectable eight-
word groups) in five
columns of four octal
digi
ts
wi th display code
equivalents.
File display Contents of any file
assigned to an FNT
ordinal. Display is
initially selected with
the DISPLAY,xxx. com-
mand (refer to descrip-
tionof File (N) Display
later in this section).
Transaction Status of the trans-
status action subsystem.
PP communi- Current contents of
cations area PP registers.
I
tThis display is control-point oriented. Use the
+
and - keys (or left and. right parentheses) to page forward and backward,
respectively, through the display for each control point. The number of the control point also appears at the top next to
the letter designator (for example, AS).
60435600 L
4-1
