Control Data Corporation CYBER 170 Series Operator's Manual page 295

/
)
"
\
/
I
/
)
r---CENTERING---,
o
0
o
'0
o
HORIZONTAL VERTICAL DEAD START FOCUS INTENSITY

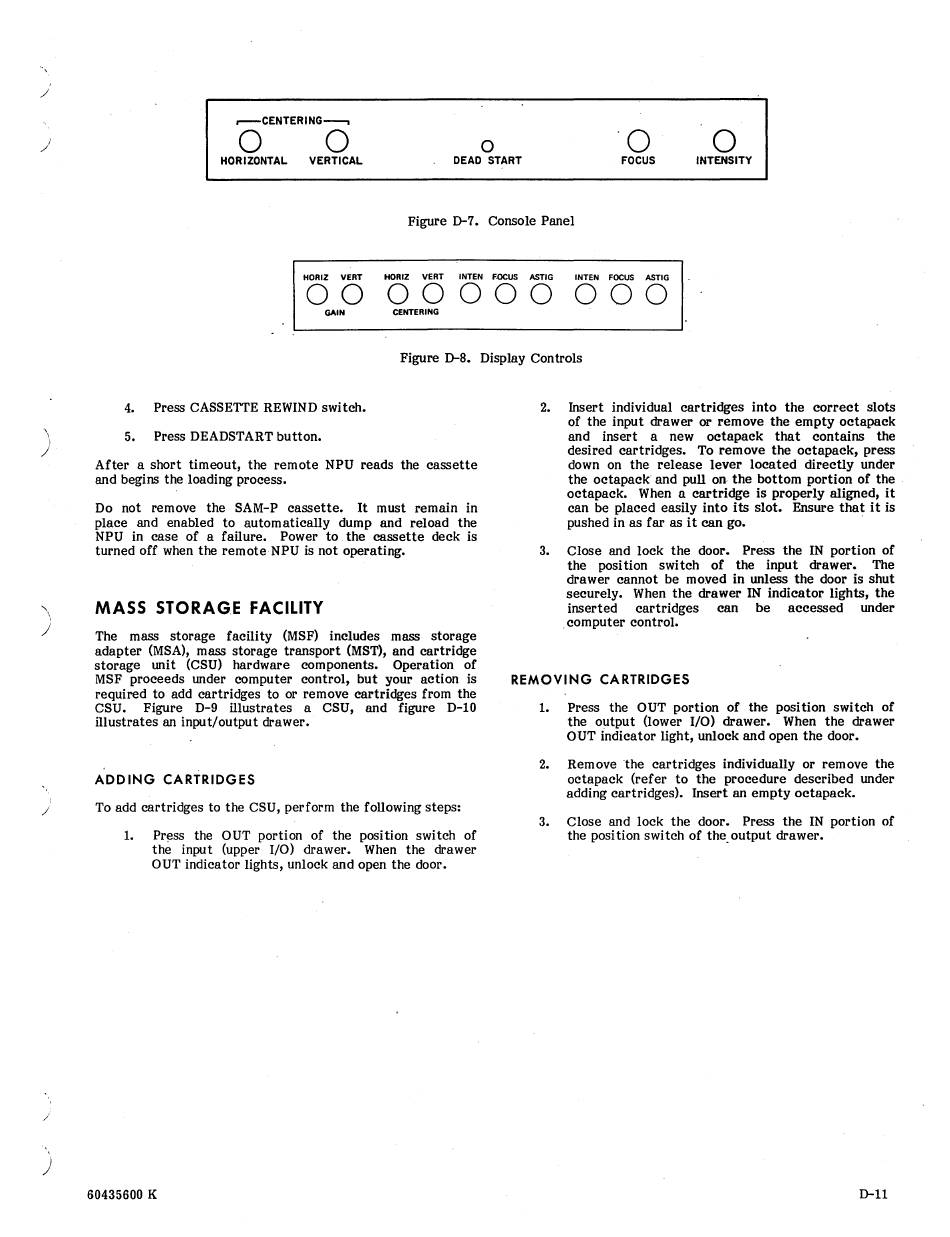

Figure D-7. Console Panel
HORIZ VERT
HORIZ VERT INTEN F.ocUS ASTIG
INTEN FOCUS ASTIG
00 00000 000
GAIN CENTERING
Figure D-8. Display Controls
4.
Press CASSETTE REWIND switch.
5.
Press DEADSTART button.
After a short timeout, the remote NPU reads the cassette
and begins the loading process.
Do not remove the SAM-P cassette. It must remain in
place and enabled to automatically dump and reload the
NPU in case of a failure. Power to the cassette deck is
turned off when the remote NPU is not operating.
MASS STORAGE FACILITY
The mass storage facility (MSF) includes mass storage
adapter (MSA), mass storage transport (MST), and cartridge
storage unit (CSU) hardware components. Operation of
MSF proceeds under computer control, but your action is
required to add cartridges to or remove cartridges from the
CSU. Figure D-9 illustrates a CSU, and figure D-10
illustrates an input/output drawer.
ADDING CARTRIDGES
To add cartridges to the CSU, perform the following steps:
1.
Pr~ss the OUT portion of the position switch of
the input (upper I/O) drawer. When the drawer
OUT indicator lights, unlock and open the door.
60435600 K
2. Insert individual cartridges into the correct slots
of the input drawer or remove the empty octapack
and insert a new octapack that contains the
desired cartridges. To remove the octapack, press
down on the release lever located directly under
the octapack and pull on the bottom portion of the
octapack. When
II
cartridge is properly aligned, it
can be placed easily into its slot. Ensure that it is
pushed in as far as it can go.
.
3.
Close and lock the door. Press the IN portion of
the position switch of the input drawer. The
drawer cannot be moved in
unless
the door is shut
securely. When the drawer IN indicator lights, the
inserted cartridges can be accessed under
. computer control.
REMOVING CARTRIDGES
1. Press the OUT portion of the position switch of
the output (lower I/O) drawer. When the drawer
OUT indicator light, unlock and open the door.
2. Remove the cartridges individually or remove the
octapack (refer to the procedure described under
adding cartridges). Insert an empty octapack.
3. Close and lock the door. Press the IN portion of
the position switch of the. output drawer.
D-11
