Transfer Of Parameter Settings Between Adjustable Frequency Drives; Navigation Keys - Danfoss VLT AutomationDrive Programming Manual

How to Program
[Info] supplies information about a command, parameter,
or function in any display window. [Info] provides detailed
information whenever help is needed.
Exit info mode by pressing either [Info], [Back], or [Cancel].

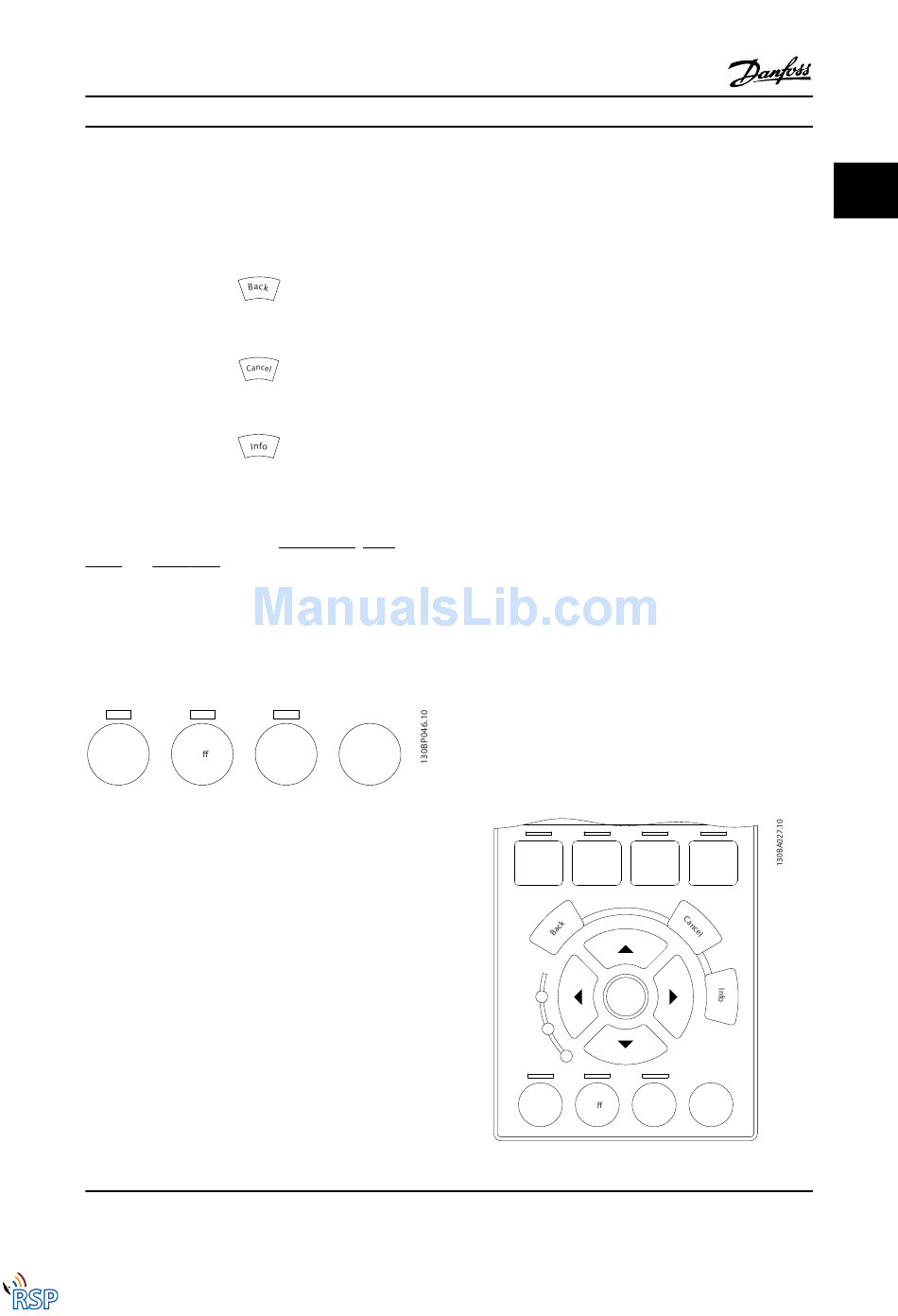

Navigation Keys

The four navigation arrows are used to navigate between
the different choices available in [Quick Menu], [Main
Menu] and [Alarm Log]. Use the keys to move the cursor.
[OK] is used for choosing a parameter marked by the
cursor and for enabling the change of a parameter.
Local Control Key for local control is found at the bottom
of the LCP.
Hand
O
on
[Hand On] enables control of the Adjustable frequency
drive via the LCP. [Hand on] also starts the motor, and it is
now possible to enter the motor speed data by means of
the arrow keys. The key can be selected as Enable [1] or
Disable [0] via 0-40 [Hand on] Key on LCP
External stop signals activated by means of control signals
or a serial bus will override a "start" command via the LCP.
The following control signals will still be active when
[Hand on] is activated.
•
[Hand on] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select bit 0 - Set-up select bit 1
•
Stop command from serial communication
•
Quick stop
