Parameter Descriptions
13-16 RS-FF Operand R
Option:
[43] Ok key
[44] Reset key
[45] Left key
[46] Right key
[47] Up key
[48] Down key
[50] Comparator 4
[51] Comparator 5
[60] Logic rule 4
[61] Logic rule 5
[70] SL Time-out 3
[71] SL Time-out 4
[72] SL Time-out 5
[73] SL Time-out 6
[74] SL Time-out 7
[75] Start command given
[76] Digital input x30/2
[77] Digital input x30/3
[78] Digital input x30/4
[79] Digital input x46/1
[80] Digital input x46/3
[81] Digital input x46/5
[82] Digital input x46/7
[83] Digital input x46/9
[84] Digital input x46/11
[85] Digital input x46/13
[90] ATEX ETR cur. warning
[91] ATEX ETR cur. alarm
[92] ATEX ETR freq. warning
[93] ATEX ETR freq. alarm
[94] RS Flipflop 0
[95] RS Flipflop 1
[96] RS Flipflop 2
[97] RS Flipflop 3
[98] RS Flipflop 4
[99] RS Flipflop 5
[100] RS Flipflop 6
[101] RS Flipflop 7

3.14.5 13-2* Timers

Use the result (TRUE or FALSE) from timers directly to
define an event (see 13-51 SL Controller Event), or as
Boolean input in a logic rule (see 13-40 Logic Rule Boolean
1, 13-42 Logic Rule Boolean 2 or 13-44 Logic Rule Boolean 3).
A timer is only FALSE when started by an action (i.e., Start
timer 1 [29]) until the timer value entered in this
parameter is elapsed. Then it becomes TRUE again.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20872-Danfoss-131H4490-VLT-Automation-VT-Drive-VFD-FC302-460V-25-HP.aspx
FC 300 Programming Guide
All parameters in this parameter group are array
parameters with index 0 to 2. Select index 0 to program
Function:
Timer 0, select index 1 to program Timer 1, and so on.
Application
dependent

3.14.6 13-4* Logic Rules

Combine up to three boolean inputs (TRUE / FALSE inputs)
from timers, comparators, digital inputs, status bits and
events using the logical operators AND, OR, and NOT.
Select Boolean inputs for the calculation in 13-40 Logic Rule
Boolean 1, 13-42 Logic Rule Boolean 2 and 13-44 Logic Rule
Boolean 3. Define the operators used to logically combine
the selected inputs in 13-41 Logic Rule Operator 1 and
13-43 Logic Rule Operator 2.

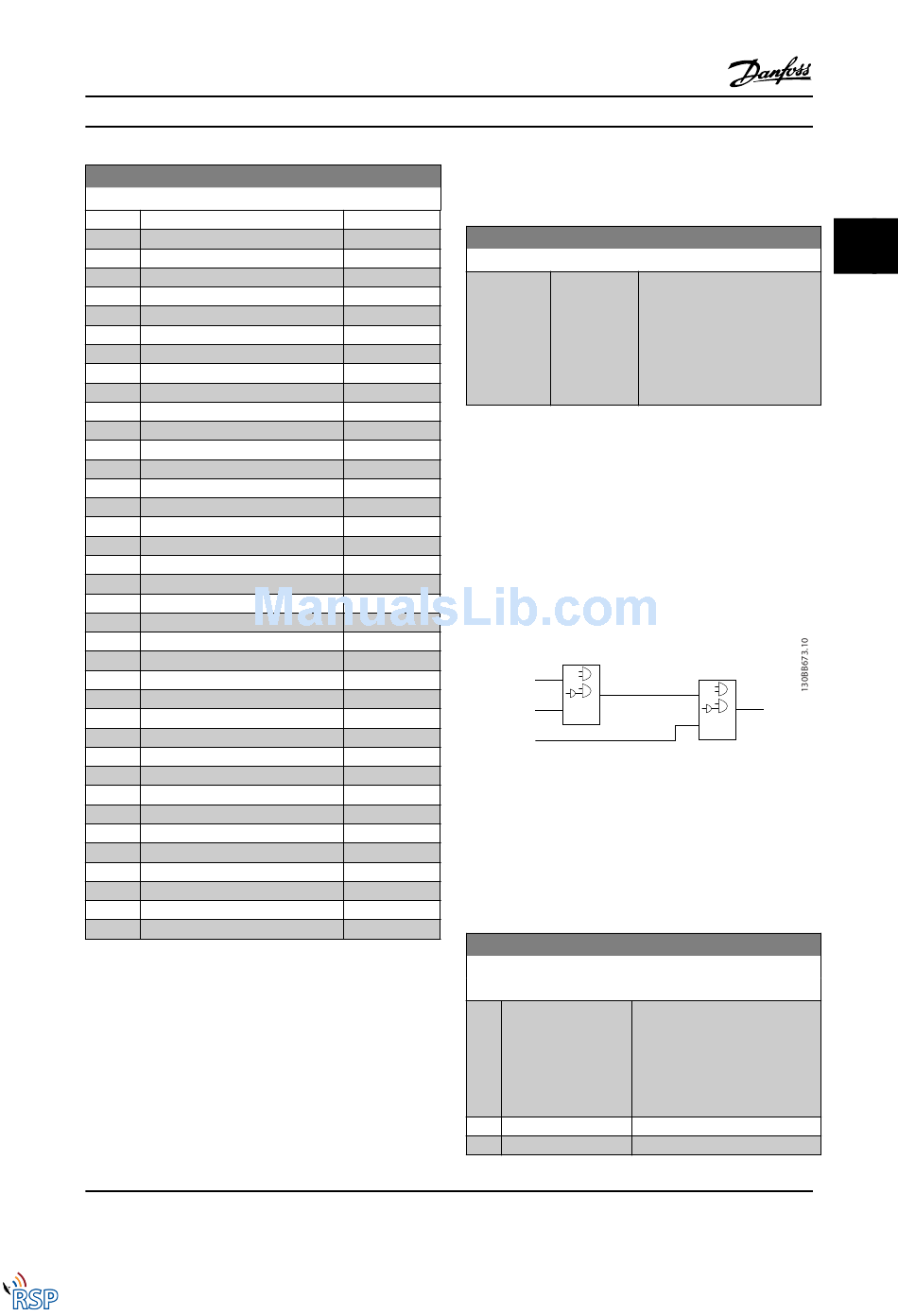

Par. LC-40

Logic Rule Boolean 1

Par. LC-42
Logic Rule Boolean 2
Priority of calculation
The results of 13-40 Logic Rule Boolean 1, 13-41 Logic Rule
Operator 1 and 13-42 Logic Rule Boolean 2 are calculated
first. The outcome (TRUE / FALSE) of this calculation is
combined with the settings of 13-43 Logic Rule Operator 2
and 13-44 Logic Rule Boolean 3, yielding the final result
(TRUE / FALSE) of the logic rule.
[0]
[1]
[2]
®
MG33MD22 - VLT is a registered Danfoss trademark

13-20 SL Controller Timer

Range:
[Application Enter the value to define the
dependant] duration of the FALSE output
*
from the programmed timer. A
timer is only FALSE if it is started
by an action (i.e., Start timer 1
[29]) and until the given timer
value has elapsed.
Par. LC-41
Logic Rule Operator 1
. . .
. . .
Par. LC-44
Logic Rule Boolean 3
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
False Select the first Boolean (TRUE or
*
FALSE) input for the selected logic
rule.
See 13-01 Start Event ([0] - [61])
and 13-02 Stop Event ([70] - [75])
for further description.
True
Running
Function:
Par. LC-43
Logic Rule Operator 2
. . .
. . .
3-119
3 3
