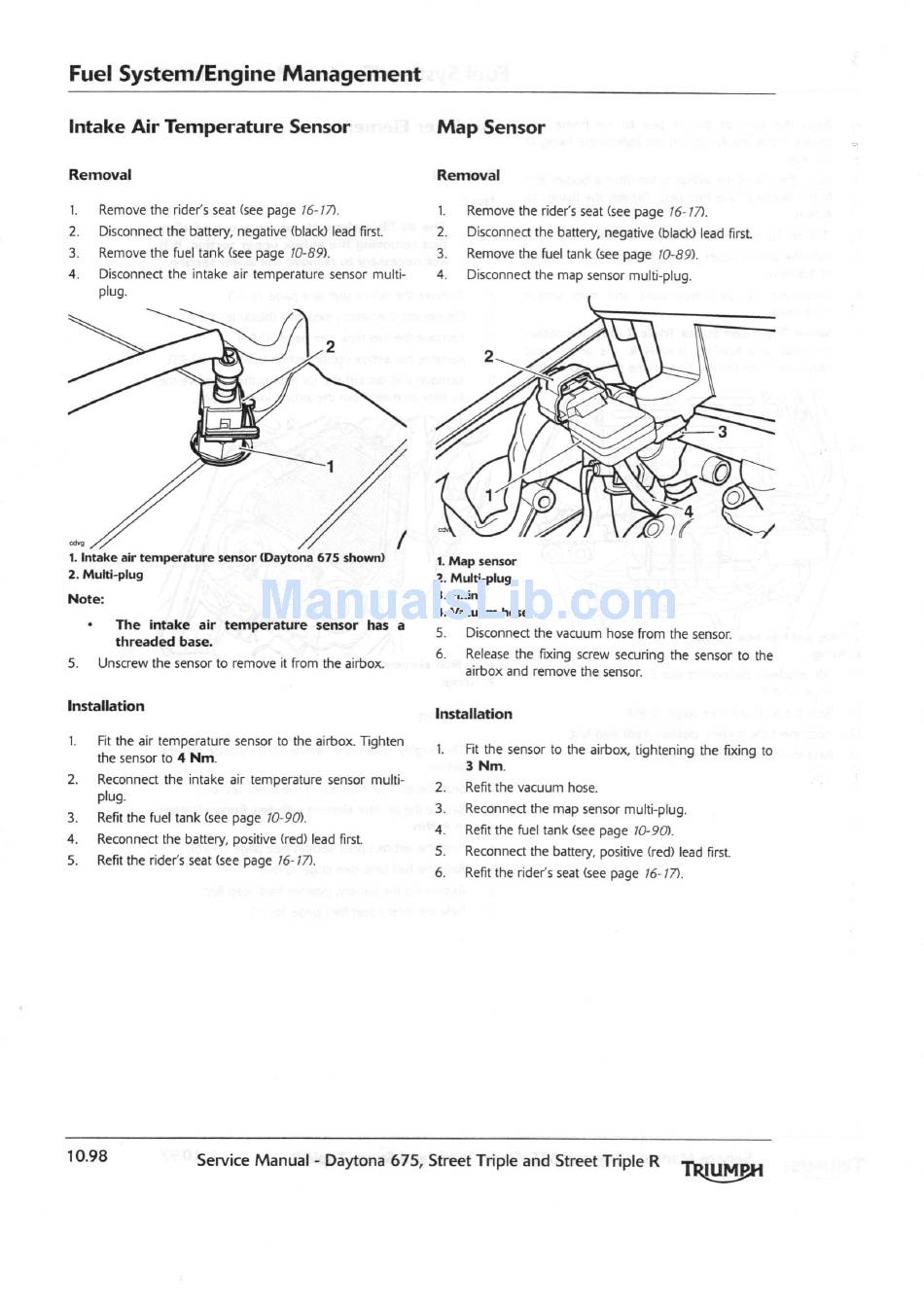

Fuel System/Engine Management
Intake Air Temperature Sensor

Removal

1. Remove the rider's seat (see page 16-17).
2. Disconnect the battery, negative (black) lead first.
3. Remove the fuel tank (see page 10-89).
4. Disconnect the intake air temperature sensor multi-
plug.
1. Intake air temperature sensor (Daytona 675 shown)
2. Multi-plug
Note:
• The intake air temperature sensor has a
threaded base.
5. Unscrew the sensor to remove it from the airbox.

Installation

1.
Fit the air temperature sensor to the airbox. Tighten
the sensor to 4 Nm.
2. Reconnect the intake air temperature sensor multi-
plug.
3. Refit the fuel tank (see page 10-90).
4. Reconnect the battery, positive (red) lead first.
5. Refit the rider's seat (see page 16-17).
1 0.98
Service Manual - Daytona 675, Street Triple and Street Triple R
Map Sensor
Removal
1.
Remove the rider's seat (see page 16-17).
2.
Disconnect the battery, negative (black) lead first.
3.
Remove the fuel tank (see page 10-89).
4. Disconnect the map sensor multi-plug.
1. Map sensor
2. Multi-plug
3. Fixing
4. Vacuum hose
5.
Disconnect the vacuum hose from the sensor.
6.
Release the fixing screw securing the sensor to the
airbox and remove the sensor.
Installation
1.
Fit the sensor to the airbox, tightening the fixing to
3 Nm.
2. Refit the vacuum hose.
3.
Reconnect the map sensor multi-plug.
4. Refit the fuel tank (see page 10-90).
5. Reconnect the battery, positive (red) lead first.
6. Refit the rider's seat (see page 16-17).
