FOREWORD

This handbook contains information on the Triumph Daytona 675 and Street Triple
motorcycles. Always store this owner's handbook with the motorcycle and refer to it for
information whenever necessary.
Warnings, Cautions and
Notes
Throughout
this
owner's
particularly
important
information
presented in the following form:
Warning
This warning symbol identifies special
instructions or procedures, which if not
correctly followed could result in personal
injury, or loss of life.
handbook
This caution symbol identifies special
is
instructions or procedures, which, if not
strictly observed, could result in damage to,
or destruction of, equipment.
Note:
•
This note symbol indicates points
of particular interest for more
efficient and convenient operation.
Foreword
Caution
1

Advertisement

Table of Contents
loading

Related Manuals for Triumph Daytona 675

Summary of Contents for Triumph Daytona 675

  • Page 1: Foreword

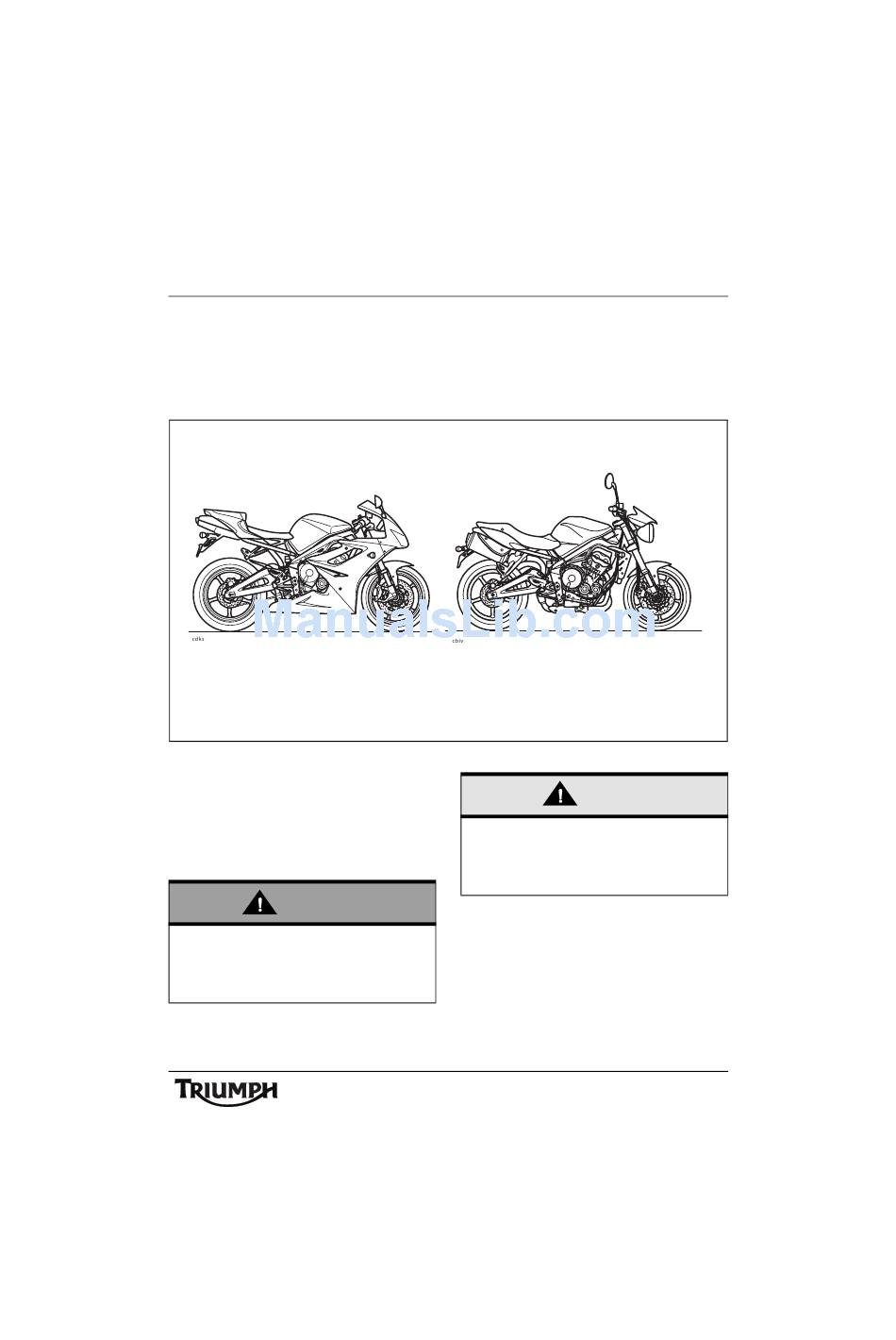

    Foreword FOREWORD This handbook contains information on the Triumph Daytona 675 and Street Triple motorcycles. Always store this owner's handbook with the motorcycle and refer to it for information whenever necessary. Warnings, Cautions and Notes Caution Throughout this owner's handbook...
  • Page 2 Maintenance To ensure a long, safe and trouble free life for your motorcycle, maintenance should only be carried out by an authorised Triumph dealer. Only an authorised Triumph dealer will have the necessary knowledge, equipment and skills to maintain your Triumph motorcycle correctly.

  • Page 3: Position

    Triumph's proven engineering, the time of printing. Triumph reserves the exhaustive testing, and continuous striving for right to make changes at any time without superior reliability, safety and performance. prior notice, or obligation.

  • Page 4: Table Of Contents

    Foreword Table of Contents This handbook contains a number of different sections. The table of contents below will help you find the beginning of each section where, in the case of the major sections, a further table of contents will help you find the specific subject required. Foreword .

  • Page 5: The Motorcycle

    Foreword - Safety First FOREWORD - SAFETY FIRST The Motorcycle Fuel and Exhaust Fumes Warning Warning This motorcycle is designed for on-road PETROL IS HIGHLY FLAMMABLE: use only. It is not suitable for off-road use. Always turn off the engine when refuelling. Off-road operation could lead to loss of Do not refuel or open the fuel filler cap control of the motorcycle resulting in an...

  • Page 6: Gear

    Foreword - Safety First Helmet and Clothing Parking Warning Warning When riding the motorcycle, both rider Always turn off the engine and remove the and passenger must always wear a ignition key before leaving the motorcycle motorcycle helmet, eye protection, gloves, unattended.
  • Page 7 Triumph motorcycle safe operation this Triumph are those which carry official Triumph motorcycle. approval and are fitted to the motorcycle Remember that continued operation of an by an authorised dealer. incorrectly performing motorcycle may...
  • Page 8 Warning collision or fall, it must be taken to an All riders must be licensed to operate the authorised Triumph dealer for inspection motorcycle. Operation of the motorcycle and repair. Any accident can cause without a licence is illegal and could lead to damage to the motorcycle that, if not prosecution.
  • Page 9 Foreword - Safety First Handlebars and Footrests Warning Warning This Triumph motorcycle should operated within the legal speed limits for The rider must maintain control of the the particular road travelled. Operating a vehicle keeping hands motorcycle high speeds handlebars at all times.

  • Page 10: Warning Labels

    The labels detailed on this and the following pages draw your attention to important safety information in this handbook. Before riding, ensure that all riders have understood and complied with all the information to which these labels relate. Warning Label Locations - Daytona 675 Windscreen Running-In...
  • Page 11 Warning Labels WARNING LABELS Warning Label Locations - Daytona 675 (continued) Daily Safety Checks Unleaded Fuel (page 49) (page 43) Helmet (page 6) ccov Engine Oil (page 71)
  • Page 12 Warning Labels Warning Label Locations - Street Triple Running-In Coolant (page 48) (page 74) R.P.M. Gear Position (page 54) Drive Chain Tyres (page 81) (page 94)
  • Page 13 Warning Labels Warning Labels Location - Street Triple (continued) Daily Safety Checks Unleaded Fuel (page 49) (page 43) Helmet (page 6) Fuel Tank Support S upport de rés ervoir de c arbura T anks tütze S upporto s erbato io c arbura nte Soporte del depósito de combustible S töd för bräns letank S teun bra nds toftank...

  • Page 14: Parts Identification

    Parts Identification PARTS IDENTIFICATION Daytona 675 cdku 1. Front indicator 8. Gear-change pedal 2. Headlight 9. Front brake disc 3. Rear light 10.Front brake caliper 4. Radiator/Coolant pressure cap 11. Fuel tank 5. Oil cooler/Heat exchanger 12.Fuel filler cap 6. Drive chain 13.Seat lock...
  • Page 15 Parts Identification PARTS IDENTIFICATION Daytona 675 (continued) 15.Battery 21. Oil filler cap 16.Tool kit 22.Clutch cable 17. Rear brake disc 23.Front fork 18.Rear brake caliper 24.Rear brake pedal 19.Rear brake fluid reservoir 25.Dipstick 20.Rear suspension unit 26.Silencer...
  • Page 16 Parts Identification Street Triple c b la 1. Front indicator 8. Gear-change pedal 2. Headlight 9. Front brake disc 3. Rear light 10.Front brake caliper 4. Radiator/Coolant pressure cap 11. Fuel tank 5. Oil cooler/Heat exchanger 12.Fuel filler cap 6. Drive chain 13.Seat lock 7.
  • Page 17 Parts Identification Street Triple (continued) c b lb 15.Battery 21. Oil filler cap 16.Tool kit 22.Clutch cable 23.Front fork 17. Rear brake disc 18.Rear brake caliper 24.Rear brake pedal 19.Rear brake fluid reservoir 25.Dipstick 26.Silencer 20.Rear suspension unit...
  • Page 18 Parts Identification Both Models (Daytona 675 shown) 11 12 M I N 1 0 0 0 1. Clutch lever 8. Front brake lever 2. Passing button 9. Engine stop switch 3. Headlight dip switch 10.Starter button 4. Horn button 11. Tachometer 5.

  • Page 19: Serial Numbers

    Vehicle Identification Engine Serial Number Number (VIN) cdly cdlx 1. Engine serial number (Daytona 675 shown) 1. VIN number (Daytona 675 shown) The engine serial number is stamped on the The Vehicle Identification Number (VIN) is engine crankcase, immediately above the stamped into the steering head area of the clutch cover.
  • Page 20 Serial Numbers This page intentionally left blank...

  • Page 21: General Information

    Instrument Panel Layout (Daytona 675 shown) ........
  • Page 22 General Information Brake Lever Adjuster ............40 Right Handlebar Switches .

  • Page 23: Instrument Panel Layout (Daytona 675 Shown)

    General Information Instrument Panel Layout (Daytona 675 shown) 1000 ccmr 1. Tachometer 10.Engine management malfunction 2. Tachometer 'red zone' indicator light 3. Speedometer 11. Low fuel level indicator light 4. Odometer/Trip meters 12.Neutral indicator light 5. Clock/Trip computer display 13.High beam indicator light 6.

  • Page 24: General Information

    General Information Speedometer and Odometer Odometer/Trip Meter The digital speedometer indicates the road speed of the motorcycle. The read-out displays the motorcycle road speed in increments of one kilometre (or mile) per hour. In the speedometer face is the electronic odometer and two trip meters.

  • Page 25: Clock/Trip Computer

    General Information Use the 'Trip' button to switch between the Clock/Trip Computer odometer and trip meter display modes. Press the 'Trip' button repeatedly until the desired display is visible. The display will scroll through in the order: • Odometer • Trip Meter 1 •...

  • Page 26: Trip Computer Operation

    General Information Journey Time Clock Adjustment The total time elapsed, since the last reset. Warning Average Speed The average speed is calculated from when Do not attempt to adjust the clock with the the trip computer was last reset. After a reset motorcycle in motion as this may lead to the display will show dashes until 1 mile/km loss of motorcycle control and an accident.

  • Page 27: Trip Computer Reset

    General Information will begin to flash. The minutes display is Lap Timer adjusted in the same way as for the hours. Once both hours and minutes are correctly set, press the 'Set' button to confirm the setting. The display will cease to flash. Trip Computer Reset 1.

  • Page 28: Data Recording Mode

    General Information Maximum Speed Data Recording Mode The maximum speed achieved per lap (the lap number will be displayed in the speedometer display position) maximum speed achieved during recorded laps. Average Speed The average speed per lap (the lap number will be displayed in the speedometer display position) or the average speed during all recorded laps.

  • Page 29: Data Retrieval Mode

    General Information New Lap Recording Data Retrieval Mode 1000 ccpc1 1. Starter button 1. Lap time 2. Lap number Each new lap is recorded by a brief press of 3. Set button the starter button (with the engine running 4. Trip button only).
  • Page 30 General Information Data Retrieval Mode The lap timer display will scroll through in the order: When the Data Retrieval Mode is accessed, the lap time for the first lap will be displayed. • Lap Time The lap number will be displayed in the •...

  • Page 31: Gear Change Lights

    General Information letters 'Ltt' will appear Gear Change Lights speedometer display. Pressing the 'Scroll' button repeatedly will display the following: • Total Time for All Laps • Maximum Speed Achieved • Average Speed of All Laps • Total Distance Travelled 1000 1000 1.

  • Page 32: Gear Change Light Modes

    General Information Gear Change Light Modes Adjusting Gear Change Light Modes gear change lights have four programmable operating modes To adjust the gear change light modes, turn described below: the ignition to the ON position. • SCALE mode: lights will Press 'Trip' 'Scroll'...
  • Page 33 General Information The corresponding lights for the current If the OFF mode is selected at this point, the mode will be illuminated and the clock will instruments will return to their normal mode display the selected mode - either SCALE, of operation, otherwise the gear change lights LEd 3, LEd 7, or OFF.

  • Page 34: Setting Gear Change Light Limits

    General Information Setting Gear Change Light Limits To change the setting, press the 'Scroll' button. The clock display will now show Select the desired gear change light mode as 'A1000'. described above. Press the 'Trip' and 'Scroll' buttons simultaneously for 4 seconds. After 4 seconds, the tachometer needle will move round to the last set position and the word 'tAcHo' will appear in the clock display.

  • Page 35: Gear Position Display

    General Information When the correct setting is shown press the Gear Position Display 'Set' button to confirm. The clock display will now show 'A100'. 1000 1. Gear position display (neutral position shown) The gear position display indicates the gear 1. Gear change lights position.

  • Page 36: Coolant Temperature Gauge

    General Information Coolant Temperature Gauge Caution Do not continue to run the engine if either of the high temperature warnings are displayed as severe engine damage may result. 1. Coolant temperature gauge The coolant temperature gauge indicates the temperature of the engine coolant. When the ignition is switched on, all 10 bars of the display will be shown.

  • Page 37: Warning Lights

    General Information Warning Lights Caution Direction Indicators Stop the engine immediately if the low oil When the indicator switch is pressure warning light illuminates. Do not pushed to the left or right, the restart the engine until the fault has been turn indicator light will flash on rectified.

  • Page 38: Engine Management System Malfunction Indicator Light

    Reduced engine performance could cause a dangerous riding condition, leading to loss of control and an accident. Contact an authorised Triumph dealer as soon as possible to have the fault checked and rectified. Note: • If the malfunction indicator light...

  • Page 39: Ignition Key

    OFF, LOCK or P (PARK) from the motorcycle. position. Your authorised Triumph dealer can supply a TO LOCK: Turn the key to the OFF position, replacement key cut from details of the key push and fully release the key, then rotate it number or can cut a new key using the to the LOCK position.

  • Page 40: Brake Lever Adjuster

    Daytona 675 or four positions for Street Triple, to suit the span of the operator's hands. To adjust the lever, push the lever forward...

  • Page 41: Right Handlebar Switches

    General Information Right Handlebar Switches Warning Do not attempt to adjust the lever with the motorcycle in motion as this may lead to loss of motorcycle control and an accident. After adjusting the lever, operate the motorcycle in an area free from traffic to gain familiarity with the new lever setting.

  • Page 42: Starter Button

    General Information Left Handlebar Switches Caution Do not leave the ignition switch in the ON position unless the engine is running as this may cause damage to electrical components and will discharge the battery. Starter Button The starter button operates the electric starter.

  • Page 43: Direction Indicator Switch

    Horn Button Your Triumph engine is designed to use When the horn button is pushed, with the unleaded fuel and will give optimum ignition switch turned to the ON position, the performance if the correct grade of fuel is horn will sound.

  • Page 44: Fuel Tank Cap

    General Information Fuel Tank Cap Warning To help reduce hazards associated with refuelling, always observe the following fuel safety instructions: Petrol (fuel) is highly flammable and can be explosive under certain conditions. When refuelling, turn the ignition switch to the OFF position.

  • Page 45: Filling The Fuel Tank

    Tool Kit and Handbook The tool kit is located beneath the seat(s). The handbook is located beneath the seat (rear seat on Daytona 675). cbdf 1. Maximum fuel level 2. Fuel filler neck...

  • Page 46: Stand

    General Information Stand Whenever the side stand is used, before riding, always ensure that the side stand is fully up after first sitting on the motorcycle. Side Stand For instructions on safe parking, refer to the 'How to Ride the Motorcycle' section. cdmg 1.

  • Page 47: Seat Lock

    1. Seat lock (Daytona 675 shown) covered with a soft cloth. The seat lock is located on the left hand side Do not place any item on the seat which...

  • Page 48: Rear Seat/Seat Cover

    General Information Rear Seat/Seat Cover Running-In Daytona 675 only Running-in is the name given to the process that occurs during the first hours of a new vehicle's operation. In particular, internal friction in the engine will be higher when components are new. Later...

  • Page 49: Safe Operation

    If any irregularities are found during these checks, refer to the Maintenance and Adjustment section or see your authorised Triumph dealer for the action required to return the motorcycle to a safe operating condition. Warning Failure to perform these checks every day...
  • Page 50 General Information fastened. Inspect all areas for loose/damaged Front Forks: Smooth action. No leaks from fixings. fork seals (page 90). Steering Action: Smooth but not loose from Throttle: Throttle grip free play 2 - 3 mm. lock to lock. No binding of any of the control Ensure that the throttle grip returns to the cables (page 89).

  • Page 51: How To Ride The Motorcycle

    How to Ride the Motorcycle HOW TO RIDE THE MOTORCYCLE Table of Contents To Stop the Engine ............52 To Start the Engine .

  • Page 52: To Stop The Engine

    How to Ride the Motorcycle To Stop the Engine 1000 ccpc1 1. Engine stop switch To Start the Engine 2. Starter button Check that the engine stop switch is in the 3. Neutral indicator light RUN position. 4. ON position Ensure the transmission is in neutral.

  • Page 53: Moving Off

    How to Ride the Motorcycle Leaving the throttle fully closed, push the • The motorcycle is equipped with starter button until the engine starts. starter lockout switches. The switches prevent the electric starter from operating when the transmission is Warning not in neutral with the side stand down.

  • Page 54: Changing Gears

    How to Ride the Motorcycle Changing Gears Note: • The gear change mechanism is the 'positive stop' type. This means that, for each movement of the gear change pedal, you can only select each gear, one after the other, in ascending or descending order.

  • Page 55: Braking

    How to Ride the Motorcycle Braking cdmk cdmi 1. Rear brake pedal (Daytona 675 shown) 1. Front brake lever (Daytona 675 shown) Warning Warning For emergency braking, disregard down changing, and concentrate on applying the WHEN BRAKING, OBSERVE THE front and rear brakes as hard as possible FOLLOWING: without skidding.
  • Page 56 How to Ride the Motorcycle Warning Warning For your safety, always exercise extreme When descending a long, steep gradient, caution when braking, accelerating or use engine braking by down changing and turning as any incautious action can cause use the brakes intermittently. Continuous loss control accident.

  • Page 57: Parking

    How to Ride the Motorcycle Parking Do not leave the switch in the P position for long periods of time as this will discharge the battery. Warning Do not park on a soft or on a steeply inclined surface. Parking under these conditions may cause the motorcycle to fall over causing damage to property and personal injury.

  • Page 58: Considerations For High-Speed Operation

    A problem, which may not be noticed at normal Warning operating speeds, greatly Only operate this Triumph motorcycle at exaggerated at high speeds. high speed in closed-course on-road competition or on closed-course racetracks. General High-speed operation should only then be...

  • Page 59: Tyres

    How to Ride the Motorcycle Tyres Engine Oil High-speed operation is hard on tyres, and Make certain that the engine oil level is tyres that are in good condition are crucial to correct. Ensure that the correct grade and riding safely. Examine their overall condition, type of oil is used when topping up.
  • Page 60 How to Ride the Motorcycle This page intentionally left blank...

  • Page 61: Accessories, Loading And Passengers

    Warning Never exceed the maximum vehicle loading weight of 195 kg. Only operate this Triumph motorcycle at This maximum loading weight is made up high speed in closed-course on-road from the combined weight of the rider, competition or on closed-course racetracks.
  • Page 62 Accessories and Loading Warning Warning Your passenger should be instructed that The handling and braking capabilities of a he or she can cause loss of motorcycle motorcycle will be affected by the presence control by making sudden movements or of a passenger. The rider must make by adopting an incorrect seated position.
  • Page 63 Accessories and Loading Warning Warning Do not carry a passenger unless he or she If the passenger seat is used to carry small is tall enough to reach the footrests objects, they must not exceed 5 kg in provided. weight, must not impair control of the motorcycle, must be securely attached and A passenger who is not tall enough to must not extend beyond the rear or sides...
  • Page 64 Accessories and Loading This page intentionally left blank...

  • Page 65: Maintenance And Adjustment

    Disc Brake Fluid............85 Front Brake Fluid Level Inspection and Adjustment - Daytona 675 ....86 Front Brake Fluid Level Inspection and Adjustment - Street Triple .
  • Page 66 Suspension Setting Chart - Daytona 675 only........
  • Page 67 Bulb Replacement - Daytona 675........

  • Page 68: Maintenance And Adjustment

    Triumph dealer maintenance chart. Only an authorised carry out the scheduled maintenance of Triumph dealer will have this knowledge this motorcycle.
  • Page 69 Maintenance and Adjustment Operation Description Odometer Reading in Miles (Kms) or Time Period, whichever comes first First A Service B Service C Service D Service A Service Service Every 6,000 12,000 18,000 24,000 30,000 (800) (10,000) (20,000) (30,000) (40,000) (50,000) 1 month 1 year 2 years...
  • Page 70 • • • • • • • • • • Exhaust butterfly valve cables - check/adjust (Daytona 675 only) • • • • • • Secondary exhaust clamp bolts - check/adjust • Fuel and evaporative loss* hoses - renew *Evaporative system fitted to California models only.

  • Page 71: Engine Oil

    Maintenance and Adjustment Engine Oil Oil Level Inspection In order for the engine, transmission, and clutch to function correctly, maintain the engine oil at the correct level, and change the oil and oil filter in accordance with scheduled maintenance requirements. Warning cdlq Motorcycle operation with insufficient,...

  • Page 72: Oil And Oil Filter Change

    Warm up the engine thoroughly, and then stop the engine and secure the motorcycle in an upright position on level ground. Remove the lower fairing (Daytona 675 only). Place an oil drain pan beneath the engine. Remove the oil drain plug.
  • Page 73 Refit the oil drain plug and tighten to 25 Nm. Refit the lower fairing (Daytona 675 only). Fill the engine with a 10W/40 or 15W/50 semi or fully synthetic motorcycle engine oil that meets specification API SH (or higher) AND JASO MA.

  • Page 74: Disposal Of Used Engine Oil And Oil Filters

    Oil Specification and Grade is low. Triumph high performance fuel injected engines are designed to use 10W/40 or 15W/50 semi or fully synthetic motorcycle Caution...

  • Page 75: Coolant Level Inspection

    Maintenance and Adjustment Coolant Level Inspection Warning Daytona 675 Always use the anti-freeze in accordance with the instructions of the manufacturer. Coolant mixture that contains anti-freeze and corrosion inhibitors contains toxic chemicals that are harmful to the human body. Never swallow anti-freeze or any of the motorcycle coolant.

  • Page 76: Coolant Level Adjustment

    Contact with this hot, pressurised coolant will cause scalds and skin damage. Allow the engine to cool. Daytona 675 The expansion tank cap can be removed 1. Expansion tank from the left hand of the motorcycle, 2. Tank cap between the rear of the lower fairing and the 3.

  • Page 77: Coolant Change

    Check the radiator grille and fins for obstructions by insects, leaves or mud. Clean off any obstructions with a stream of low-pressure water. 1. Throttle grip (Daytona 675 shown) 2. Correct setting 2 - 3 mm Warning The fan operates automatically when the engine is running.

  • Page 78: Inspection

    4. Throttle grip (Daytona 675 shown) Check that there is 2 - 3 mm of throttle grip 5. Opening cable – free play free play when lightly turning the throttle grip measurement point back and forth.
  • Page 79 Ride carefully to your nearest authorised With the throttle fully closed, ensure that Triumph dealer and have him check the there is 2 - 3 mm of free play in the 'closing' throttle system thoroughly before riding cable at the throttle cam attached to the again.

  • Page 80: Clutch

    Maintenance and Adjustment Clutch Adjustment Loosen the knurled locknut at the lever end of the clutch cable and turn the adjuster sleeve until the correct amount of clutch lever free play is achieved. Tighten the knurled locknut against the clutch lever assembly. If correct adjustment cannot be made using the lever adjuster, use the cable adjuster at the lower end of the cable.

  • Page 81: Drive Chain

    If the chain is especially dirty, clean first and Therefore, always replace worn or damaged then apply oil as mentioned above. chains using genuine Triumph parts supplied by an authorised Triumph dealer. Caution Do not use a pressure wash to clean the...

  • Page 82: Chain Free-Movement Inspection

    Maintenance and Adjustment Chain Free-Movement Inspection Chain Free-Movement Adjustment For Daytona 675, the vertical movement of the drive chain must be in the range 35 - 40 mm. For Street Triple, the vertical movement of the drive chain must range 20 - 25 mm.

  • Page 83: Chain And Sprocket Wear Inspection

    Also inspect the sprockets for unevenly or It is dangerous to operate the motorcycle excessively worn or damaged teeth. with defective brakes and you must have your authorised Triumph dealer take WORN TOOTH WORN TOOTH remedial action before you attempt to ride...

  • Page 84: Brakes

    The use of non-approved chains may result in a broken chain or may cause the chain to jump off the sprockets. Use a genuine Triumph supplied chain as specified in the Triumph Parts Catalogue. Never neglect chain maintenance and always have chains installed by an authorised Triumph dealer.

  • Page 85: Brake Pad Wear Compensation

    It is dangerous to operate the motorcycle fittings, seals and joints and also check the under such conditions and your authorised brake hoses for splits, deterioration and Triumph dealer must rectify the fault damage. before riding. Always rectify any faults before riding.

  • Page 86: Front Brake Fluid Level Inspection And Adjustment - Daytona 675

    Maintenance and Adjustment Front Brake Fluid Level Inspection Front Brake Fluid Level Inspection and Adjustment - Daytona 675 and Adjustment - Street Triple jajc 1. Front brake fluid reservoir, upper 1. Front brake fluid reservoir, upper level line level line 2.

  • Page 87: Rear Brake Fluid Inspection And Adjustment

    Warning If there has been an appreciable drop in the level of the fluid in either fluid reservoir, consult your authorised Triumph dealer for advice before riding. Riding with depleted brake fluid levels, or with a brake fluid leak is dangerous and will cause...

  • Page 88: Windscreen Cleaning

    Maintenance and Adjustment Windscreen Cleaning Warning Daytona 675 only Never attempt to clean the windscreen while the motorcycle is in motion as releasing the handlebars may cause loss of vehicle control and an accident. Operation of the motorcycle with a...

  • Page 89: Steering/Wheel Bearings

    If any free play can be detected in the steering (headstock) bearings, ask your authorised Triumph dealer to inspect and rectify any faults before riding. Warning Riding the motorcycle with incorrectly...

  • Page 90: Wheel Bearings Inspection

    Examine each fork for any sign of damage, your authorised Triumph dealer inspect the scratching of the slider surface, or for oil wheel bearings.

  • Page 91: Suspension Setting Chart - Daytona 675 Only

    Maintenance and Adjustment Suspension Setting Chart - Daytona 675 only Note: • The Street Triple model has no front suspension adjustment. LOADING FRONT REAR Spring Rebound Compression Rebound Compression Pre-Load* Damping* Damping* Damping* Damping* Solo Riding Standard Softer Firmer Rider and Passenger * Number of adjuster turns out from the fully screwed in position.

  • Page 92: Front Suspension Settings

    Maintenance and Adjustment Front Suspension Settings Rebound Damping Adjustment The rebound damping adjusters are located Daytona 675 only at the top of each fork. To change the rebound damping force, rotate the slotted adjuster clockwise to increase, or anti-clockwise to decrease. Always count the turns out from the screwed fully in position and set both forks to the same setting.

  • Page 93: Compression Damping Adjustment

    • The Street Triple model has no wheel spindle. rear suspension adjustment. Daytona 675 only The rear suspension unit is adjustable for both rebound and compression damping. Rebound Damping Adjustment cdlj 1.

  • Page 94: Compression Damping Adjustment

    Maintenance and Adjustment Compression Damping Adjustment Tyres cdlk ccom1 1. Compression damping adjuster Tyre Marking compression damping adjuster situated adjacent to the rear suspension unit reservoir. To adjust the compression damping setting rotate the slotted adjuster clockwise to increase, or anti-clockwise to decrease. This motorcycle is equipped with tubeless tyres, valves and wheel rims.

  • Page 95: Tyre Inflation Pressures

    Maintenance and Adjustment Tyre Inflation Pressures Tyre Wear Correct inflation pressure will provide As the tyre tread wears down, the tyre maximum stability, rider comfort and tyre life. becomes more susceptible to punctures and Always check tyre pressures before riding failure.

  • Page 96: Tyre Replacement

    Maintenance and Adjustment Tyre Replacement All Triumph motorcycles are carefully and Warning extensively tested in a range of riding Only operate this Triumph motorcycle at conditions to ensure that the most effective high speed in closed-course on-road tyre combinations are approved for use on competition or on closed-course racetracks.
  • Page 97 If tyre damage is suspected, such as after riding distance (approximately 100 miles) striking the kerb, ask your authorised to become accustomed to the new Triumph dealer to inspect the tyre both handling characteristics. internally and externally. Remember, tyre 24 hours after fitting, the tyre pressures...

  • Page 98: Battery

    ATTENTION IMMEDIATELY. When wheel balancing is required, such as after tyre replacement, see your authorised KEEP BATTERY ACID OUT OF THE Triumph dealer. REACH OF CHILDREN. Only use self-adhesive weights. Clip on weights may damage the wheel and tyre resulting in tyre deflation, loss of control Warning and an accident.

  • Page 99: Battery Removal

    Maintenance and Adjustment Battery Removal Take the battery out of the case. Daytona 675 Warning Ensure that the battery terminals do not touch the motorcycle frame as this may cause a short circuit or spark, which would ignite battery gases causing a risk of personal injury.

  • Page 100: Battery Discharge

    Voltage or battery Under normal conditions, the motorcycle charging, contact your local authorised charging system will keep the battery fully Triumph dealer. charged. However, if the motorcycle is unused, the battery will gradually discharge due to a normal process called self discharge;...

  • Page 101: Battery Installation

    Should the battery Voltage fall below 12.7 Volts, the battery should be charged using a Triumph approved battery charger. Always follow the instructions supplied with the battery charger. For extended periods of storage (beyond two...
  • Page 102 Maintenance and Adjustment Street Triple locate the fuel tank support into the fuel tank fixing points on the frame and fuel tank. Arrowed: Fuse Box 1. Fuel tank support The fuse box is located beneath the fuel tank. 2. Fuel tank To access the fuse box, remove the seat.

  • Page 103: Fuse Identification

    Horn, indicators, alarm fuse box cover, as shown. Spare fuses are located at right angles to the main fuses and Cooling fan should be replaced if used. Engine management Daytona 675 Circuit Protected Position Rating (Amps) Dip and main beam...

  • Page 104: Headlights

    Maintenance and Adjustment Headlights Headlight Adjustment - Daytona 675 Headlights Each headlight can be adjusted by means of vertical and horizontal adjustment screws located on the rear of each headlight. Warning Adjust road speed to suit the visibility and weather conditions in which the motorcycle is being operated.

  • Page 105: Headlight Adjustment - Street Triple

    Maintenance and Adjustment Turn the vertical adjustment screws on each Headlight Adjustment - Street Triple headlight clockwise to raise the beam or Vertical Adjustment anti-clockwise to lower the beam. On the right hand headlight turn the horizontal adjustment screw clockwise to move the beam to the left or anti-clockwise to move the beam to the right.

  • Page 106: Headlight Bulb Replacement - Daytona 675

    Caution The use of non-approved headlight bulbs may result in damage to the headlight lens. Use a genuine Triumph supplied headlight bulb as specified in the Triumph Parts Catalogue. Always have replacement headlight bulbs installed by an authorised Triumph dealer.

  • Page 107: Headlight Bulb Replacement - Street Triple

    Maintenance and Adjustment To replace a bulb: Headlight Bulb Replacement - Street Triple Remove the rider's seat. Disconnect the battery, negative (black) lead first. Remove the four screws and remove the bulb cover from the bulb to be replaced. Disconnect the multi-plug from the bulb retainer.

  • Page 108: Rear Light

    Direction Indicator Lights To remove the position lamp bulb: Without pulling the wires, ease the bulb Bulb Replacement - Daytona 675 holder from its socket. The bulb is removed from its holder by pulling gently upwards. Installation for both bulbs is the reverse of the removal procedure.

  • Page 109: Bulb Replacement - Street Triple

    Maintenance and Adjustment Bulb Replacement - Street Triple Licence Plate Light Bulb Replacement - Both Models Carefully remove the rubber bulb retainer from the back of the number plate light unit and detach the bulb. Caution To avoid cable damage, do not pull the bulb retainer using the cables.

  • Page 110: Cleaning

    Maintenance and Adjustment Cleaning Preparation for Washing Before washing, precautions must be taken Frequent, regular cleaning is an essential part to keep water off the following places. of the maintenance of your motorcycle. If regularly cleaned, the appearance will be Rear opening of the exhausts: Cover with a preserved for many years.

  • Page 111: Where To Be Careful

    Maintenance and Adjustment Where to be Careful After Washing Avoid spraying water with any great force Remove the plastic bags and tape, and clear near the following places: the air intakes. • Instruments; Lubricate the pivots, bolts and nuts. • Brake cylinders and brake calipers;...

  • Page 112: Cleaning Of The Exhaust System

    Maintenance and Adjustment Cleaning of the Exhaust System Protecting All parts of the exhaust system of your When the exhaust system is dry, rub motorcycle must be cleaned regularly to 'Motorex 645 Clean and Protect' into the avoid a deterioration of its appearance. surface.

  • Page 113: Storage

    Storage STORAGE Preparation for Storage unpainted metal surfaces to prevent rusting. Prevent oil from getting on rubber parts, Clean and dry the entire vehicle thoroughly. brake discs or in the brake calipers. Fill the fuel tank with the correct grade of Lubricate and if necessary adjust the drive unleaded fuel and add a fuel stabiliser (if chain (see page 81).
  • Page 114 Storage Preparation after Storage Replace the spark plugs, tightening to 12 Nm, and start the engine. Install the battery (if removed) (see page 101). Check and if necessary correct the tyre If the motorcycle has been stored for more pressures (see page 118). than four months, change the engine oil (see Clean the entire vehicle thoroughly.

  • Page 115: Specifications

    Specifications SPECIFICATIONS Daytona 675 Street Triple Dimensions Overall Length ....2,010 mm (79. 1 in) 2,000 mm (78.7 in) Overall Width .....
  • Page 116 Specifications Daytona 675 Street Triple Lubrication Lubrication......Pressure Lubrication Pressure Lubrication (wetsump) (wetsump) Engine Oil Capacities Dry Fill ......
  • Page 117 Specifications Daytona 675 Street Triple Ignition Ignition System ....Digital Inductive Digital Inductive Electronic Rev Limiter (r/min) ..
  • Page 118 Specifications Daytona 675 Street Triple Tyres Tyre Pressures (Cold): Front ......2.35 bar (34 lb/in 2.35 bar (34 lb/in...
  • Page 119 Specifications Daytona 675 Street Triple Electrical Equipment Battery Type..... . . YT7B - BS YTX9 - BS Battery Rating .....
  • Page 120 Specifications All Models Tightening Torques Oil Filter ......10 Nm Oil Drain Plug ......25 Nm Spark Plug .
  • Page 121 Index INDEX Accessories ......61 Dimensions ..... . . 115 Direction Indicator Lights .
  • Page 122 Index Gear Change Lights ....31 Rear Light ......108 Gears Rear Seat .
  • Page 123 Index Tachometer......24 Warning Lights ..... 37 Throttle Control .
  • Page 124 Index This page intentionally left blank...

This manual is also suitable for:

Street triple

Table of Contents
