4.3.34

PWB Box

[1]
[2]
[1]
[1]
[4]
[3]
[7]
[9]
bizhub C350 Field Service Ver. 2.0 April 2004

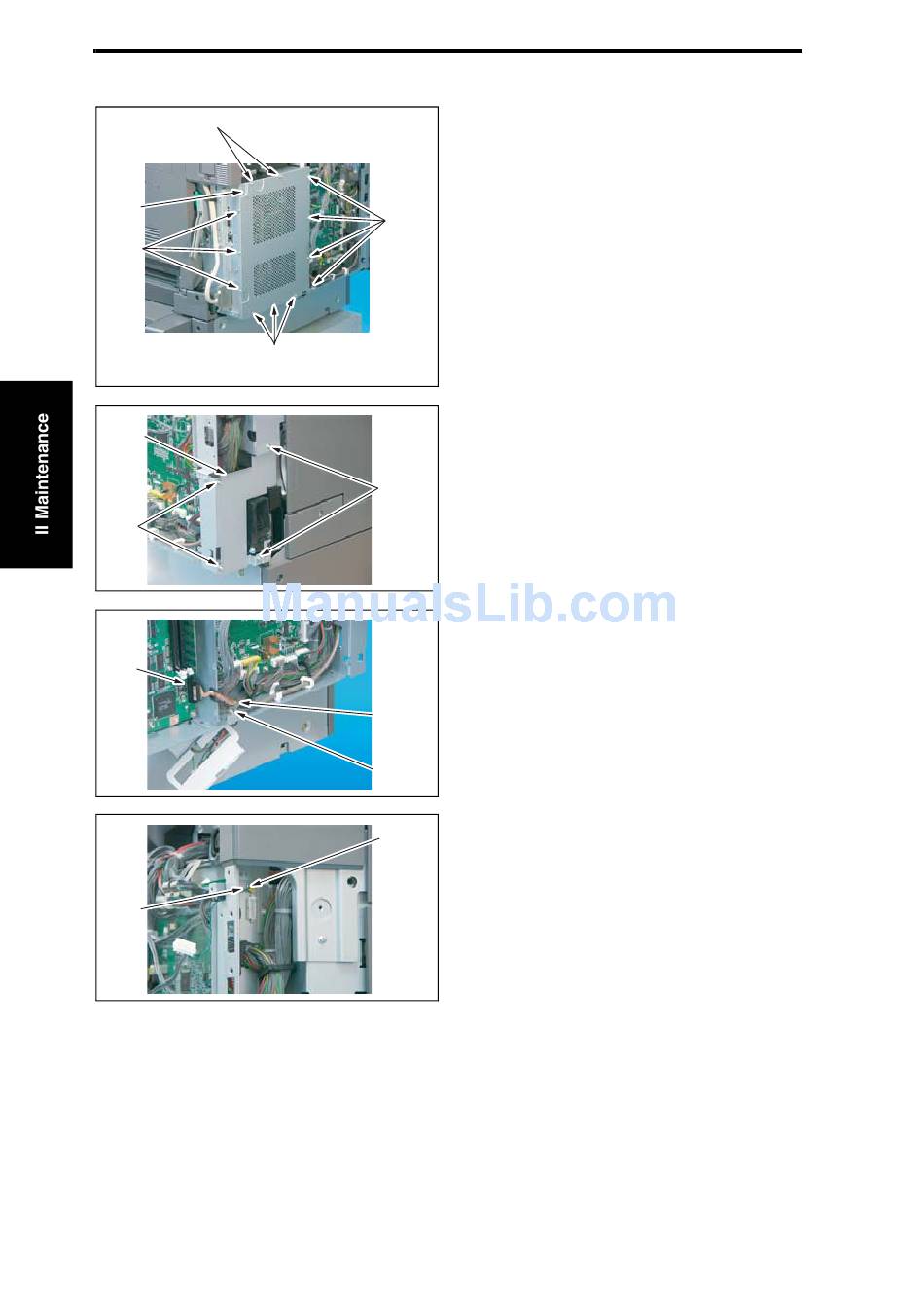

1. Remove the Rear Right Cover, Rear
Left Cover, Rear Cover and Upper
Rear Cover.
☞ 2-41
2. Remove 12 Screws [1], and remove
[1]
the Protective Shield [2].
4036fs2061c1
3. Remove four Screws [3], and remove
the Harness Protective Cover [4].
[3]
4036fs2096c0
4. Remove the Screw [5], and remove
the Wire Saddle [6].
5. Remove the Connector [7] on the
MFP Control Board.
[6]
[5]
4036fs2097c0
6. Remove the Screw [8], and remove
[8]
the Earth cable [9].
7. Remove all the Connectors on the
Control Board.
☞ See the procedure 2 of 2-49
"Removing of Control Board".
4036fs2098c0
2-76
