bizhub C350 Field Service Ver.1.0 Mar. 2004
Standard:0 ± 2 mm
<To - side>
A
B
13. Make the copy and check again.
NOTE
• Set five or more sheets of original under the ADF, and then take copies and bind
them into a booklet.
3.1.2

DF-601-unequipped machine

1. Set A3 or 11 x 17 to the Feed Tray.
2. Select the functions as follows: Orig
3. Set A3 or 11 x 17 original (blank paper acceptable) on the Original Glass.
4. Press the "Start" Key five times (to cause reading operation five times) Adjust the varia-
tion to the minimum by using five sheets.
5. Touch the "Finish" of the panel.
6. Press the "Start" Key.
7. Take the Steps from 5 to 14 of (1) "DF-601-equipped machine" in 3.1.1 "Adjustment of
the stapling position".

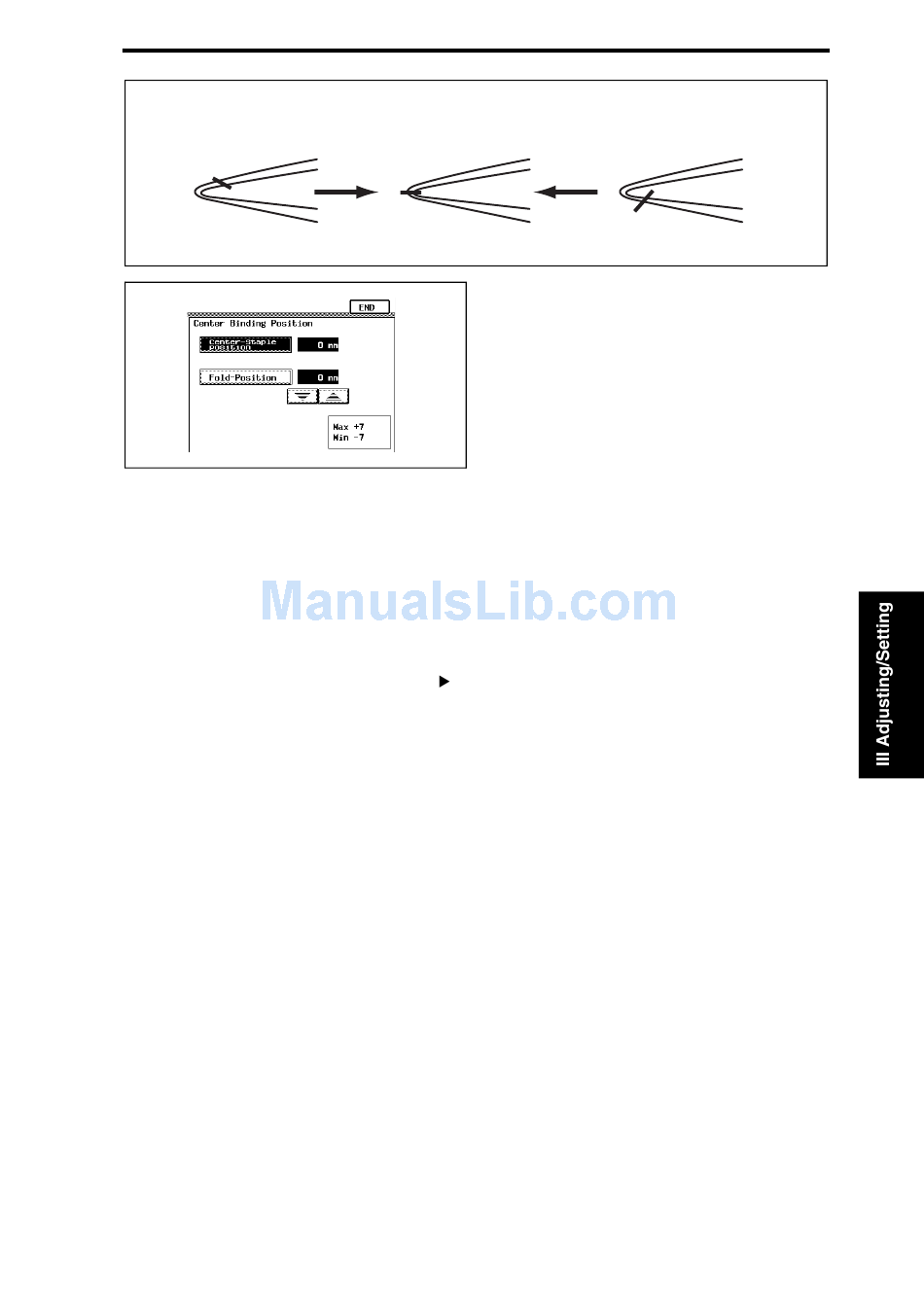

<Standard> <Standard>
A
B
11. Adjust with the ▲ and ▼ Keys.
When the stapling position is shifted
to the direction A: Adjust the value to
the - side.
When the stapling position is shifted
to the direction B: Adjust the value to
the + side.
12. Touch "END".
4583fs3524e0
→
Copy 4in1/Booklet
3-5
Mechanical adjustment
<To + side> <To + side>
A
B
4583fs3501c0
→ →
Booklet Bind.
