Cautions in replacing the Control Board:

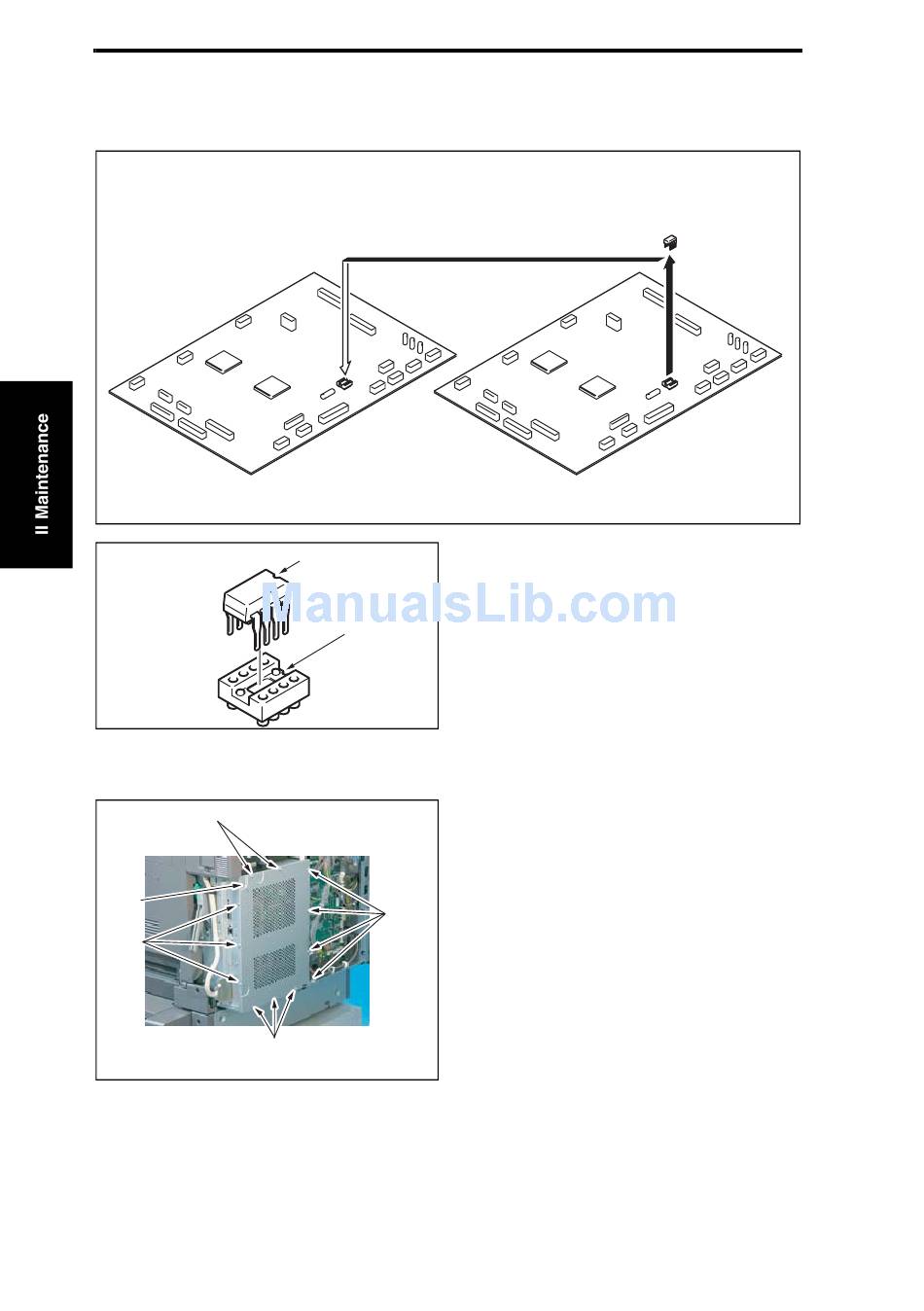

• When Control Board (PWB-MC) is replaced, relocate the EEPROM (IC45).
Mount the EEPROM (IC45) of old Control Board onto the new Control Board.
4.3.14

MFP Control Board

[1]
[2]
[1]
[1]
bizhub C350 Field Service Ver. 2.0 April 2004
A
A
4036fs2590c0
[1]
4036fs2061c1
2-50
NOTE
• When the EEPROM (IC45) is
mounted, precisely fit the direc-
tions of each "A".
1. Remove the Rear Right Cover, Rear
Cover and Upper Rear Cover.
☞ 2-42
2. Remove 12 Screws [1], and remove
the Protective Shield [2].
4036fs2591c0
