Cleaning of the Mirrors (1st/2nd/3rd)

[2]
1.5.13

Cleaning of the Lens

[1]
bizhub C350 Field Service Ver. 2.0 April 2004
4036fs2506c0
[1]
4036fs2507c0
[2]
4036fs2613c0
[3]
4036fs2041c1
2-18

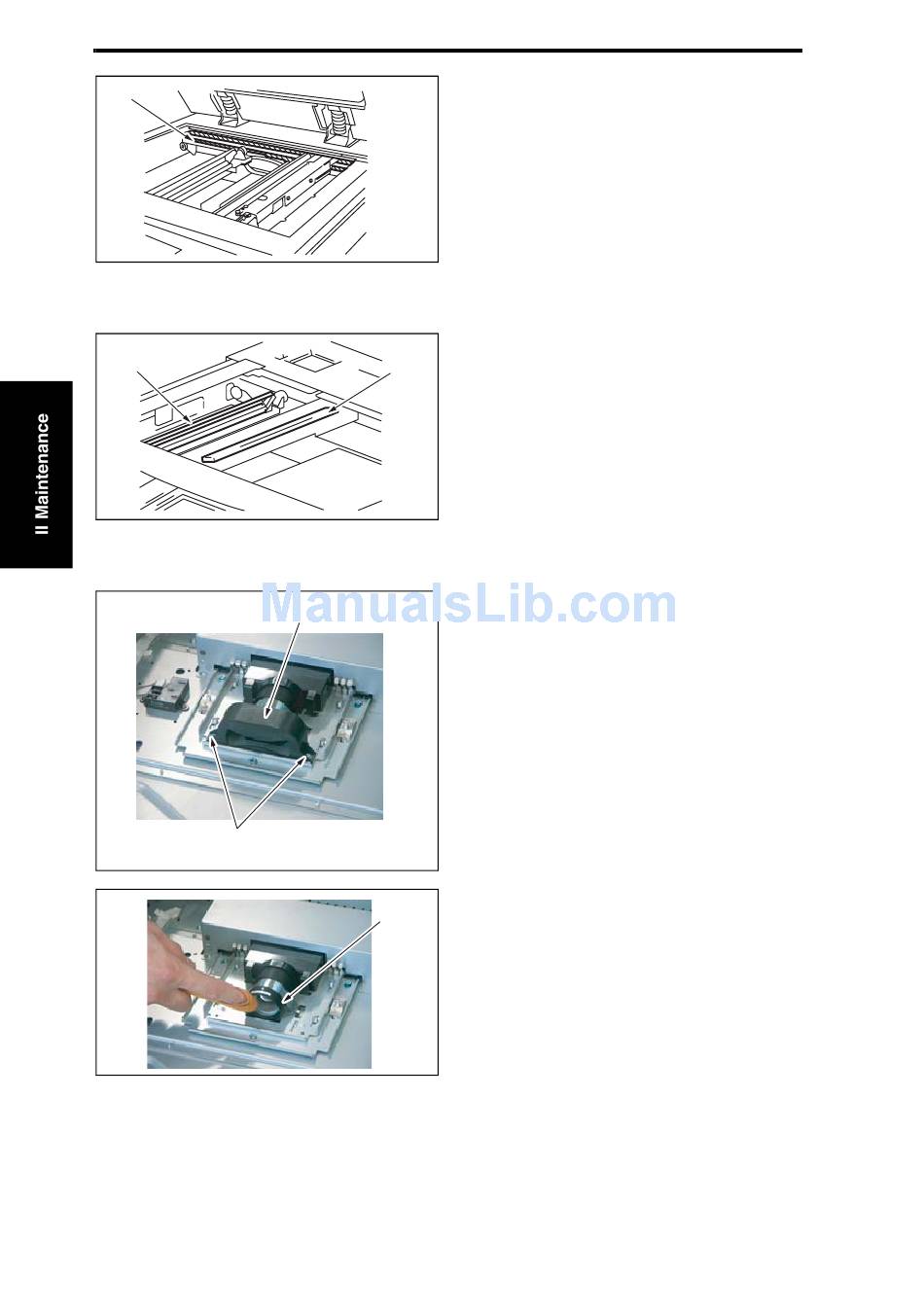

4. Using a soft cloth dampened with
alcohol, wipe the Scanner Rails [4]
clean of dirt.
NOTE
• Apply lubricant after cleaning.
1. Remove the Original Glass.
☞ 2-44
2. Using a soft cloth dampened with
alcohol, wipe the Mirror 1 [1] and
Mirror 2/3 [2].
1. Remove the Original Glass.
☞ 2-44
2. Remove two Screws [1] and Lens
cover [2].
3. Using a soft cloth dampened with
alcohol, wipe the Lens [3] clean of
dirt.
