Engine Section - Konica Minolta Bizhub C350 Service Manual

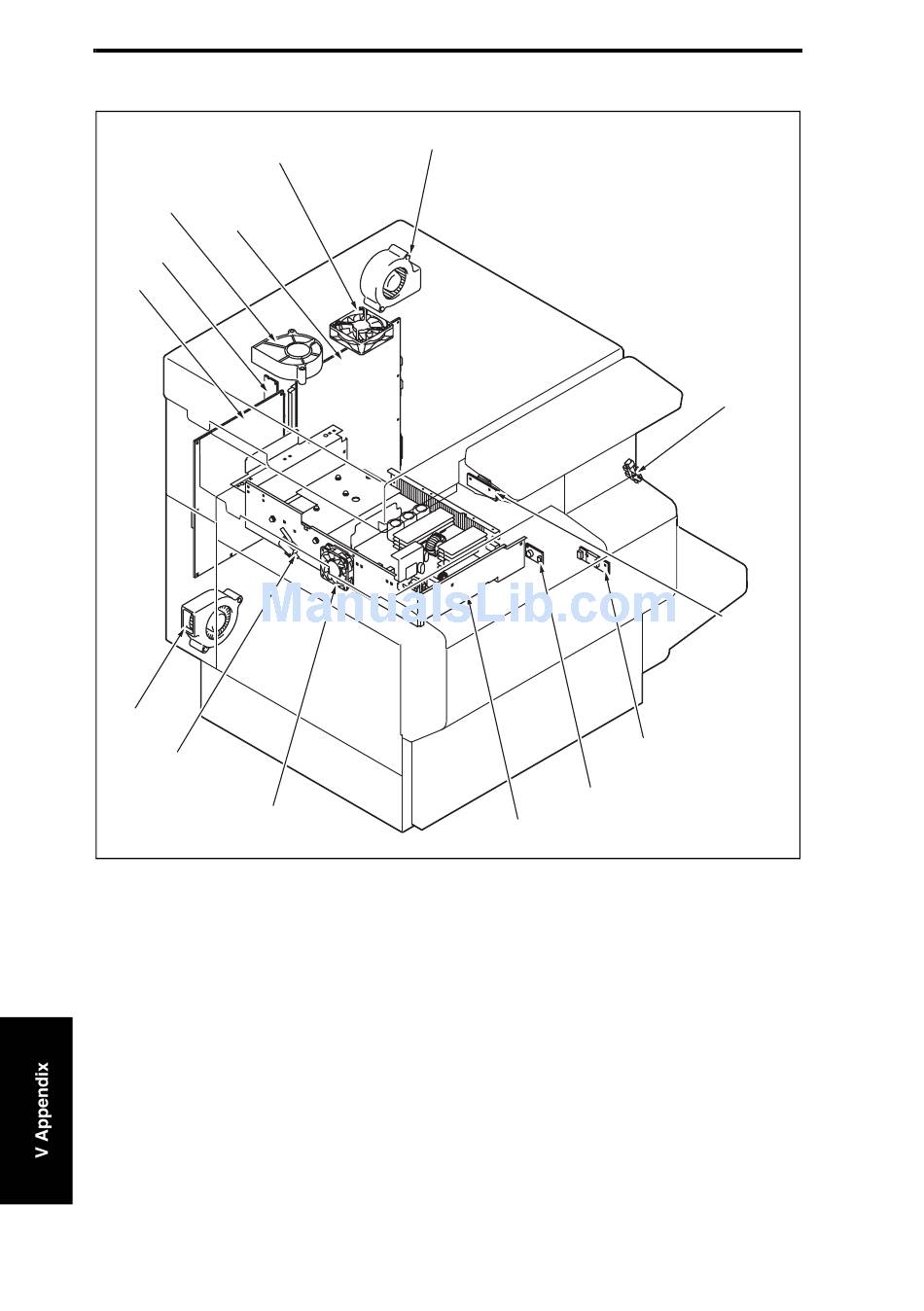

Parts layout drawing
1.1.2

Engine section

[1]
[13]
[14]
[12]
[11]
[10]
[9]
[8]
[1] Cooling Fan Motor/2 (M10)
[2] Fusing Cooling Fan Motor/1 (M9)
[3] Fusing Pressure/Retraction Sensor (PC33)
[4] AIDC/Registration Sensor/2 (PC9)
[5] AIDC/Registration Sensor/1 (PC8)
[6] Temperature/humidity Sensor (PC7)
[7] DC Power Supply (PU1)
bizhub C350 Field Service Ver. 2.0 April 2004
[2]
[6]
[7]
[8] Power Supply Cooling Fan Motor (M21)
[9] Left Door Switch (SW3)
[10] Ozone Ventilation Fan Motor (M18)
[11] Control Board (PWB-MC)
[12] Standard Memory (DIMMS0)
[13] Toner Suction Fan Motor (M20)
[14] MFP Control Board (PWB-MFP)
5-2
[3]
[4]
[5]
