Mechanical adjustment
[2]
[3]
[3]
30 mm
6.4

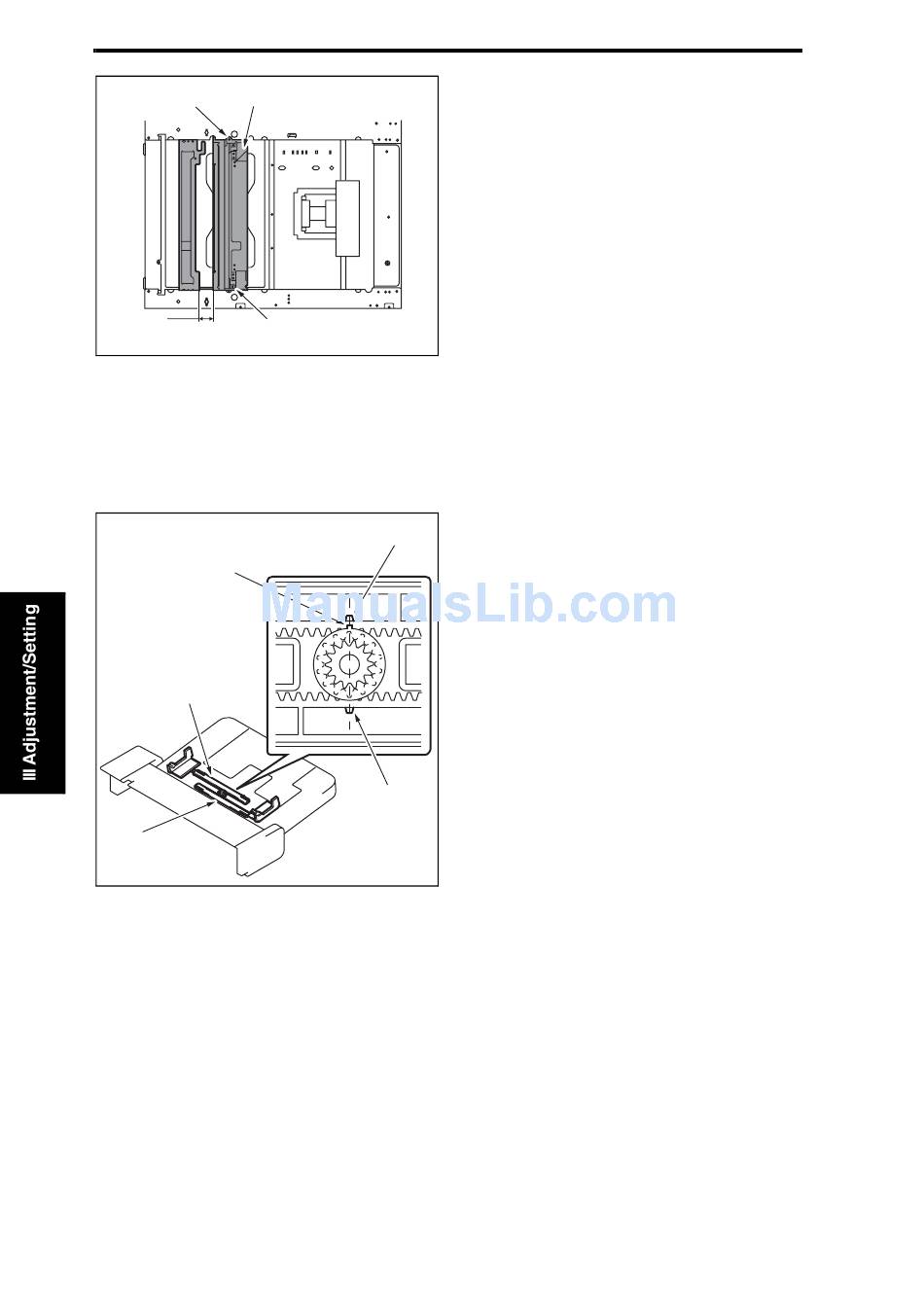

Adjustment of the Bypass Paper Size Unit

This adjustment must be made in the following case:
• The Bypass Paper Size Unit has been removed.
[1]
[2]
[2]
bizhub C350 Field Service Ver 2.0 April 2004
2. Secure the Scanner [2] in the posi-
tion shown on the left using the two
Scanner positioning screws [3].
3. Make the FD-Mag. adjustment.
☞ 3-52
4036fs3040c0
1. Install the gear so that the protrusion
[3]
of the gear [1] and the mark [3] on
the Bypass Guide Rack Gear [2] are
aligned in a straight line.
[3]
4036fs3050c0
3-102
