bizhub C350 Field Service Ver.2.0 April 2004
[3]
[2]
[4]

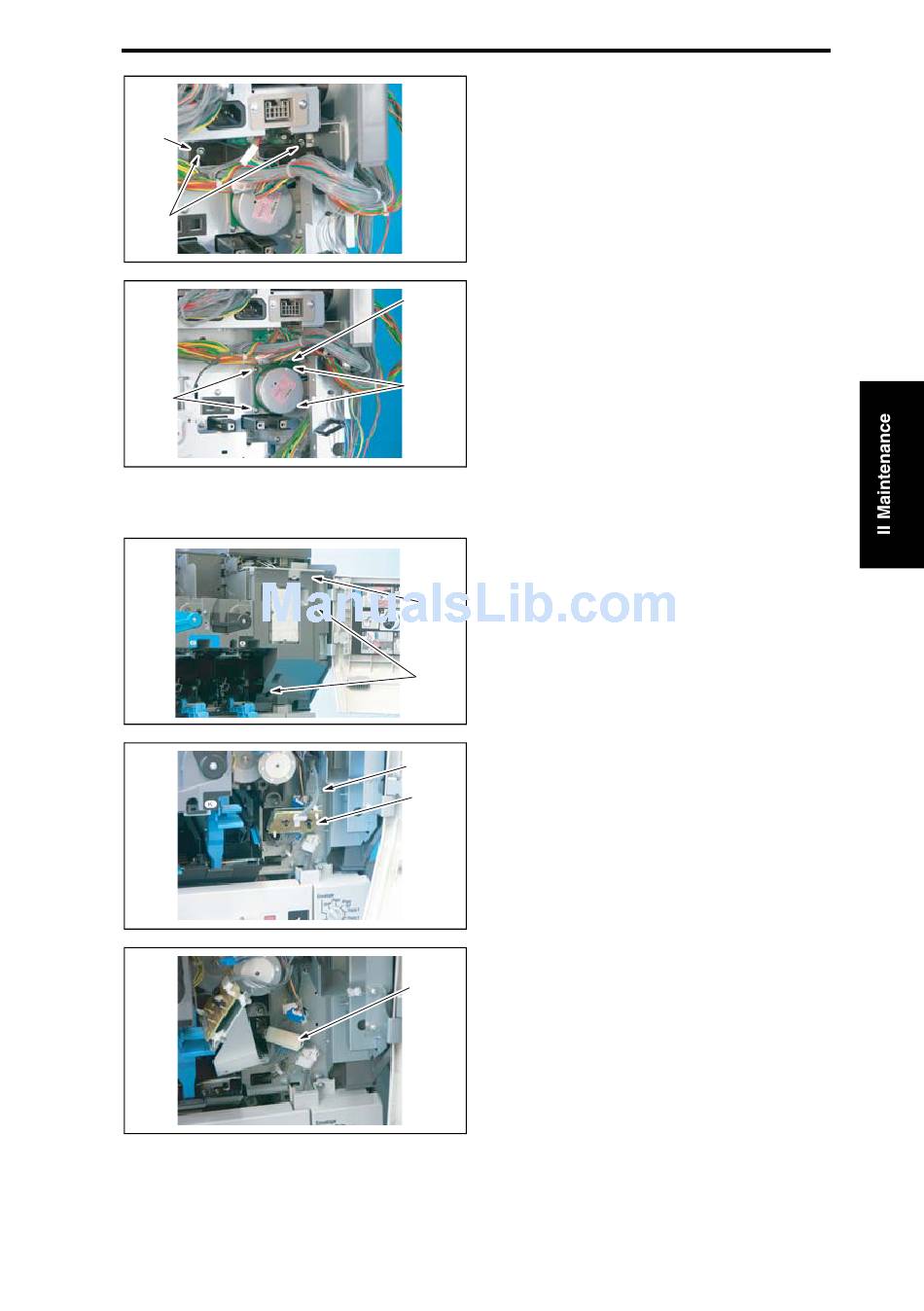

4.3.47

AIDC/Registration Sensor/1,2

3. Remove two Screws [2], and remove
the Harness Holder [3].
4036fs2135c0
4. Remove four Screws [4], and remove
[5]
the Cleaning Brush Motor [5].
[4]
4036fs2136c1
1. Open the Front Door.
2. Remove the Panel Cover.
☞ 2-42
[2]
3. Remove two Screws [1], and remove
the Front Right Cover [2].
[1]
4036fs2082c0
4. Remove the screw [3] and the Tech.
[3]
Rep. Setting Switches Board Assy
[4]
[4].
4036fs2137c0
5. Remove the Connector [5].
[5]
4036fs2138c0
2-89
