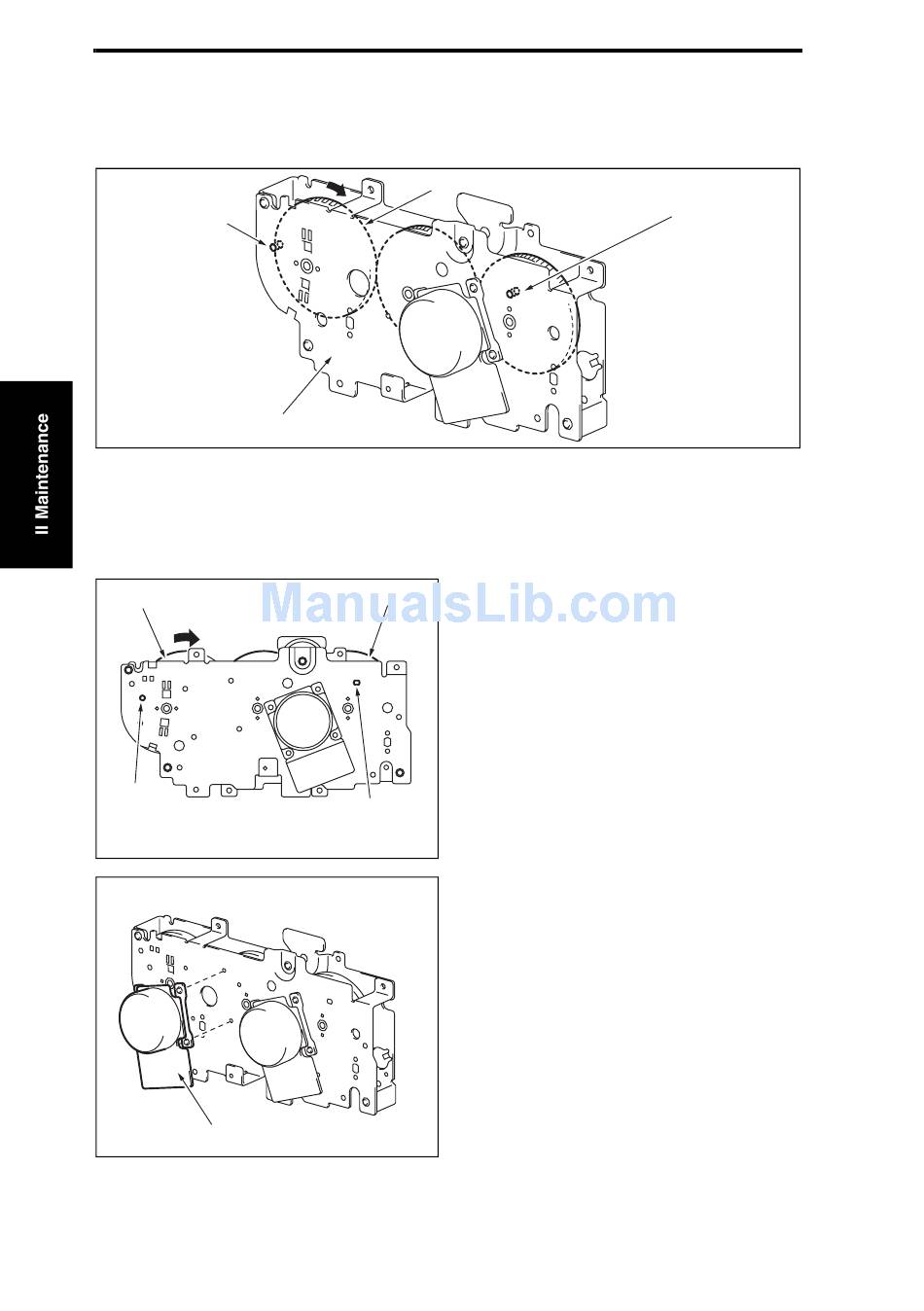

Cautions when mounting the Color PC Drum Motor:
• Before mounting the Color PC Drum Motor, be sure to check the assembled posi-
tion of PC Gear. If its position is improper, make positioning adjustment.
A. Checking method
[3]
[2]
1. Slowly turn the PC Gear/1 [1], and fit the hole A [3] and B [4] with the Gear holes as
shown on the above figure.
2. Visually check if the hole A [3] and B [4] are fit with each Gear hole at the same time.
[1]
[2]
[5]
bizhub C350 Field Service Ver. 2.0 April 2004
[1]
B. Adjusting method
1. Turn the PC Gear/1 [1], and fit the
[4]
hole A [2] with the PC Gear/1 [1] hole
while visually checking.
2. Fix the PC Gear/1 [1], and then fit
the hole B [3] with the PC Gear/2 [4]
hole while visually checking.
[3]
4036fs2173c1
3. Mount the Color PC Drum Motor [5]
while two hole positions are well set.
4036fs2171c1
