4.3.40

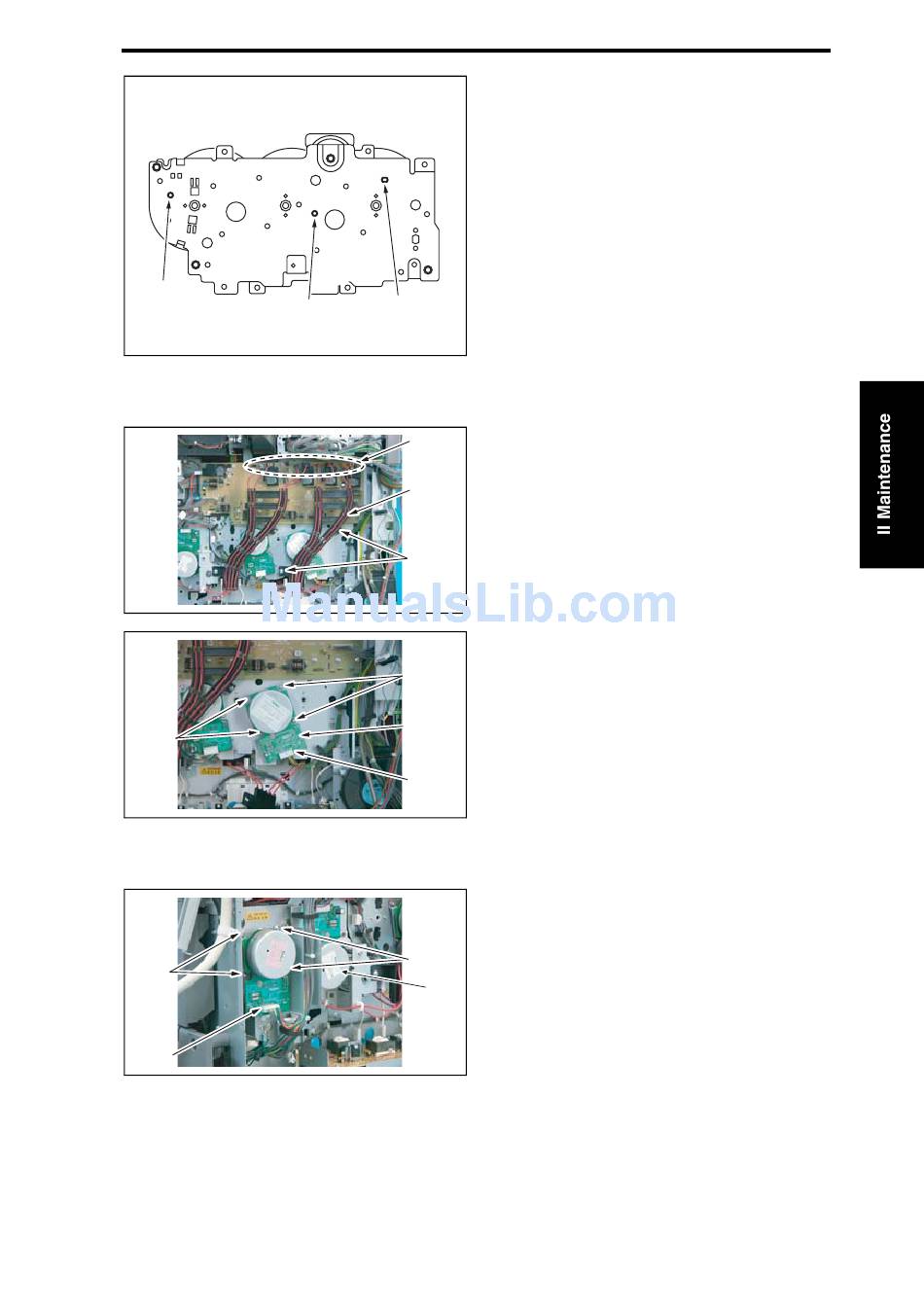

Color Developing Motor

[4]
4.3.41

Bk PC Motor

[1]
[2]
[2]
[3]
4036fs2612c0
[1]
[3]
[2]
4036fs2107c1
[4]
[6]
[5]
4036fs2108c1
[1]
[3]
4036fs2109c0
2-81
NOTE
• When the Upper Frame Assy is
removed, adjustment should be
performed at hole A [1], hole B [2]
and hole C [3] while the Color
Developing Motor is being
removed.
1. Remove the PWB Box.
☞ 2-76
2. Remove eight Connectors [1] on the
High Voltage Unit/1.
3. Remove two Screws [2], and remove
the Harness Holder [3].
4. Remove four Screws [4] and Con-
nector [5], and remove the Color
Developing Motor [6].
1. Remove the PWB Box.
☞ 2-76
2. Remove four Screws [1] and Con-
nector [2], and remove the Bk PC
Motor [3].
