I/O check
2.2

I/O check list

2.2.1

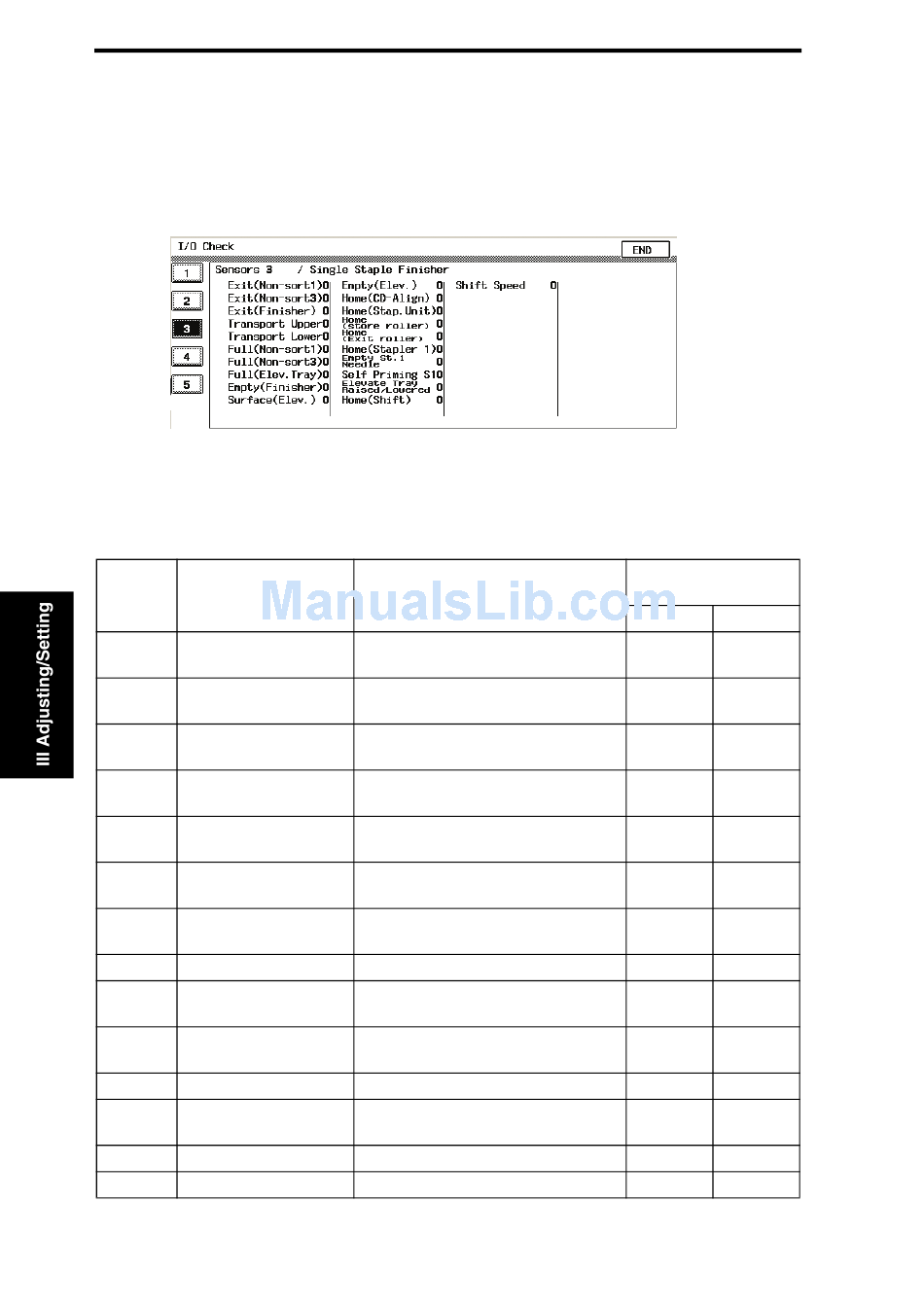

I/O check screen

• This is only typical screen which may be different from what are shown on each individ-
ual main unit.
2.2.2 I/O check list
A. Sensor monitor 3
Symbol Panel display
PC1-FN Exit
(Non-sort1)
PC19-FN Exit
(Non-sort3)
PC3-FN Exit
(Finisher)
PC4-FN Transport Upper
PC2-FN Transport Lower
PC6-FN Full
(Non-sort1)
PC20-FN Full
(Non-sort3)
PC7-FN Full (Elev. Tray)
PC5-FN Empty
(Finisher)
PWB-D Surface (Elev.)
FN
PC8-FN Empty (Elev.)
PC9-FN Home
(CD-Align)
PC14-FN Home (Stap. Unit)
PC12-FN Home (store roller)
bizhub C350 Field Service Ver.1.0 Mar. 2004
Part/Signal name
1st Tray Exit Sensor
Job Tray Exit Sensor
Storage Sensor
Upper Entrance Sensor
Lower Entrance Sensor
1st Tray Full Sensor
job Tray Full Sensor
Elevator Tray Full Sensor
Finisher Tray Paper Sensor
Elevator Tray Upper Limit Sensor PQ
Elevator Tray Paper Sensor
CD Aligning Home Position Sensor
Staple Home Position Sensor
Storage Roller Home Position Sensor
3-2
4036fs3028e0
Operation characteris-
tics/Panel display
1 0
Paper Paper not
present present
Paper Paper not
present present
Paper Paper not
present present
Paper Paper not
present present
Paper Paper not
present present
Blocked Unblocked
Paper Paper not
present present
Blocked Unblocked
Paper Paper not
present present
Paper Paper not
present present
Blocked Unblocked
Blocked Unblocked
Blocked Unblocked
Blocked Unblocked
