Auto Adjust: Fd 2-Sided Stop Position - Konica Minolta Bizhub C350 Service Manual

Mechanical adjustment
4.4.2

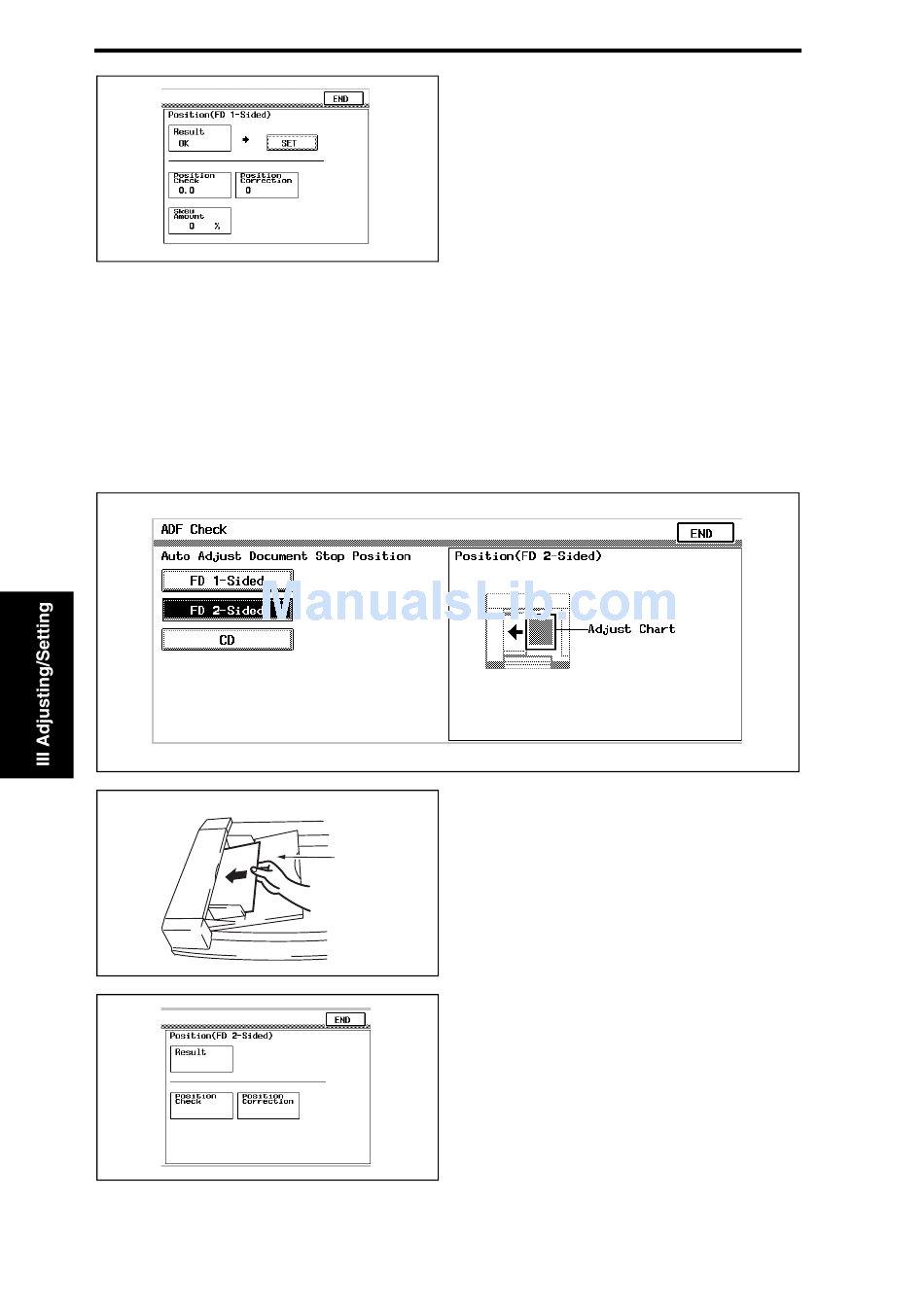

Auto adjust: FD 2-Sided stop position

A. Adjustment procedure
1. Set the mode to the Tech. Rep. Mode.
2. Touch "ADF Check".
3. Touch "Auto Adjust Stop Position".
4. Touch "FD 2-Sided".
bizhub C350 Field Service Ver.1.0 Mar. 2004
7. Make sure that Result is "OK". Then,
8. Touch "END".
9. Touch "Fin. Time" on the Tech. Rep.
If the Result is "NG":
• Check and correct the skew of the
4582fs3533e0
document.
• Manually correct the value of "Position
Correction".
5. Place the chart furnished with the
[1]
NOTE
• Make sure that the blank surface of
the chart faces up.
6. Press the "Start key".
4582fs3508c0
7. Check that Result is "OK" and then
8. Touch "END".
9. Touch "Fin. Time" on the Tech. Rep.
If the Result is "NG":
• Check and correct the skew of the
document.
4582fs3535e0
• Manually correct the value of "Position
Correction".
3-10
touch "SET".
Mode screen.
Document Feeder [1] in the docu-
ment feeding tray.
