bizhub C350 Field Service Ver.1.0 Mar. 2004

II Maintenance

1.

Periodical check

1.1

Maintenance procedure (Periodical check parts)

NOTE
• The alcohol described in the cleaning procedure of Maintenance represents the
isopropyl alcohol.
1.1.1

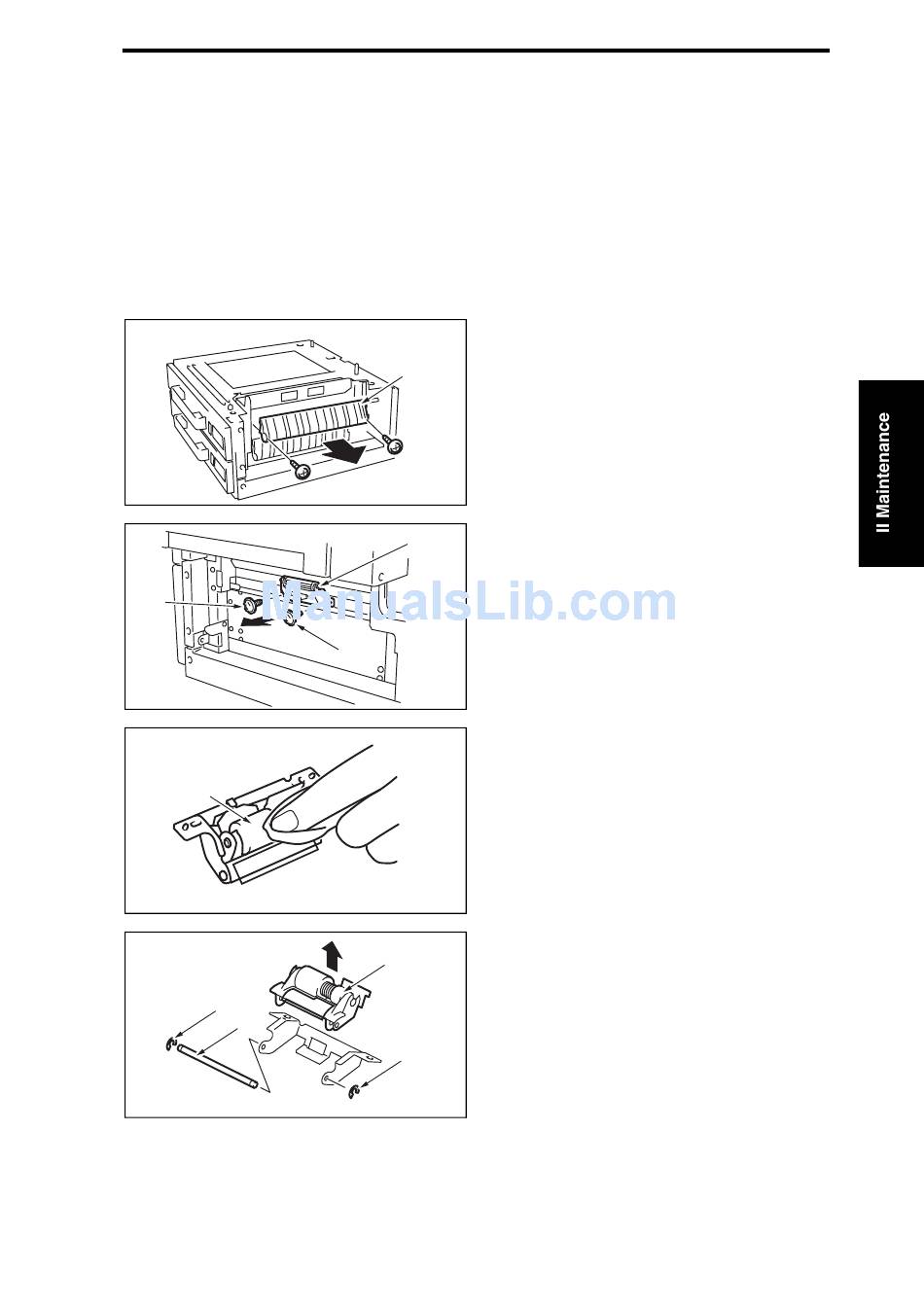

Separation Roller Assy

[3]
[5]
[6]
[7]
[2]
[1]
[1]
4348fs2611c0
[4]
[3]
4348fs2612c0
4348fs2613c0
[8]
[6]
4348fs2614c0
2-1
A. Cleaning procedure
1. Remove the Right Door.
☞ 2-8
2. Remove two screws [1] and remove
the Jam Access Cover [2].
3. Remove two screws [3] and remove
the Paper Separation Roller Mount-
ing Bracket Assy [4].
4. Using a soft cloth dampened with
alcohol, wipe the Separation Roller
[5] clean of dirt.
5. Repeat steps 1 to 4 similarly for the
4th Drawer.
B. Replacing procedure
1. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ 2-1
2. Remove two C-rings [6] and the
shaft [7], and remove the Paper Sep-
aration Roller Fixing Bracket Assy
[8].
NOTE
• Be careful not to lose spring at this
time.
Periodical check
