bizhub C350 Field Service Ver. 2.0 April 2004

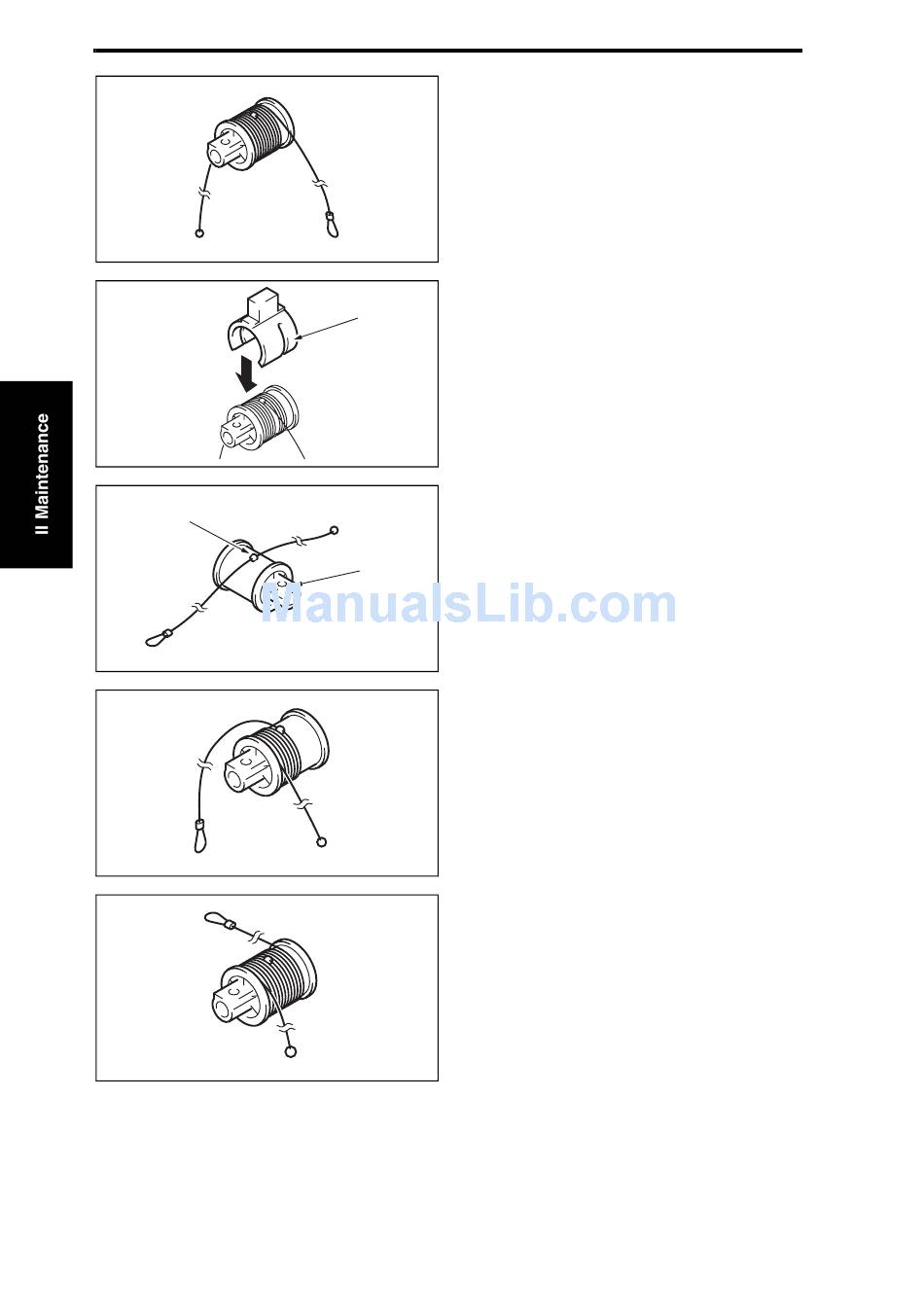

3. Wind the hook end of the cable
around the pulley five turns counter-
clockwise, from the front toward the
rear side.
NOTE
• Make sure that no part of the cable
rides on the other.
4036fs2556c0
4. Slip the Cable Holding Jig [3] onto
the pulley to secure the cable in posi-
[3]
tion.
4036fs2557c0
<Rear>
5. Position the round bead [4] of the
Scanner Drive Cable in the pulley [5]
as shown.
[5]
NOTE
• Make sure that the bead snugly
rests in the slit in the pulley.
4036fs2558c0
6. Wind the fixed bead end of the cable
around the pulley five turns clock-
wise, from the front toward the rear
side.
NOTE
• Make sure that no part of the cable
rides on the other.
4036fs2559c0
7. Wind the hook end of the cable
around the pulley five turns counter-
clockwise, from the rear toward the
front side.
NOTE
• Make sure that no part of the cable
rides on the other.
4036fs2560c0
2-72
