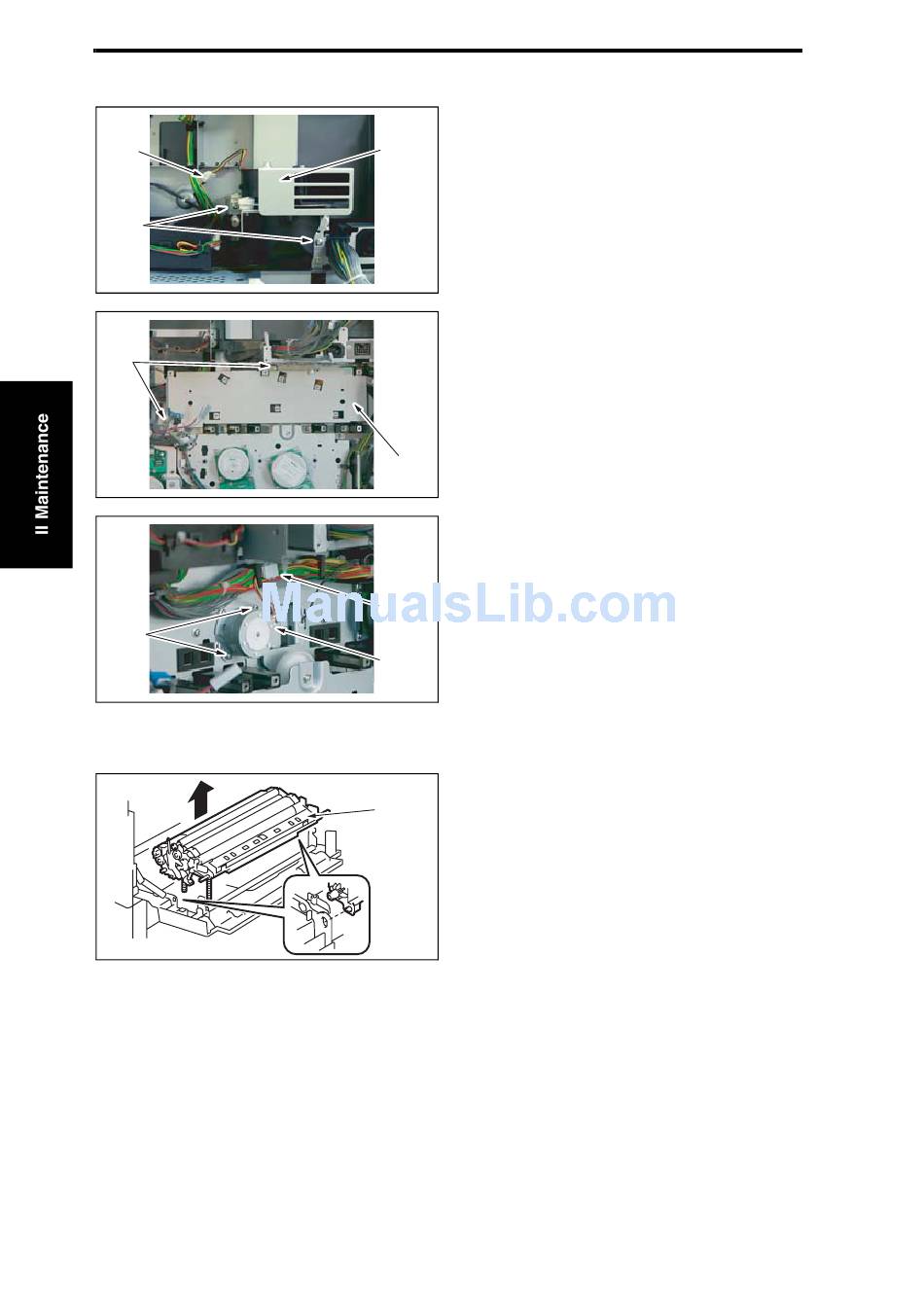

4.3.42

1st Image Transfer Pressure/Retraction Motor

[2]
[1]
[4]
[6]
4.3.43

2nd Image Transfer Pressure/Retraction Motor

bizhub C350 Field Service Ver. 2.0 April 2004
1. Remove the PWB Box.
☞ 2-76
[3]
2. Remove the High Voltage Unit/1.
☞ 2-52
3. Remove two Screws [1] and Connec-
tor [2], and remove the Dust Suction
Fan Assy [3].
4036fs2110c1
4. Remove two Screws [4], and remove
the High Voltage Unit/1 Fixing plate
[5].
[5]
4036fs2111c1
5. Remove two Screws [6] and Connec-
tor [7], and remove the 1st Image
Transfer Pressure/Retraction Motor
[8].
[7]
[8]
4036fs2112c1
1. Open the Right Door.
[1] 2. Unlock the tab and remove the
Transport Unit Assy [1].
4036fs2528c0
2-82
