bizhub C350 Field Service Ver. 2.0 April 2004
6.2

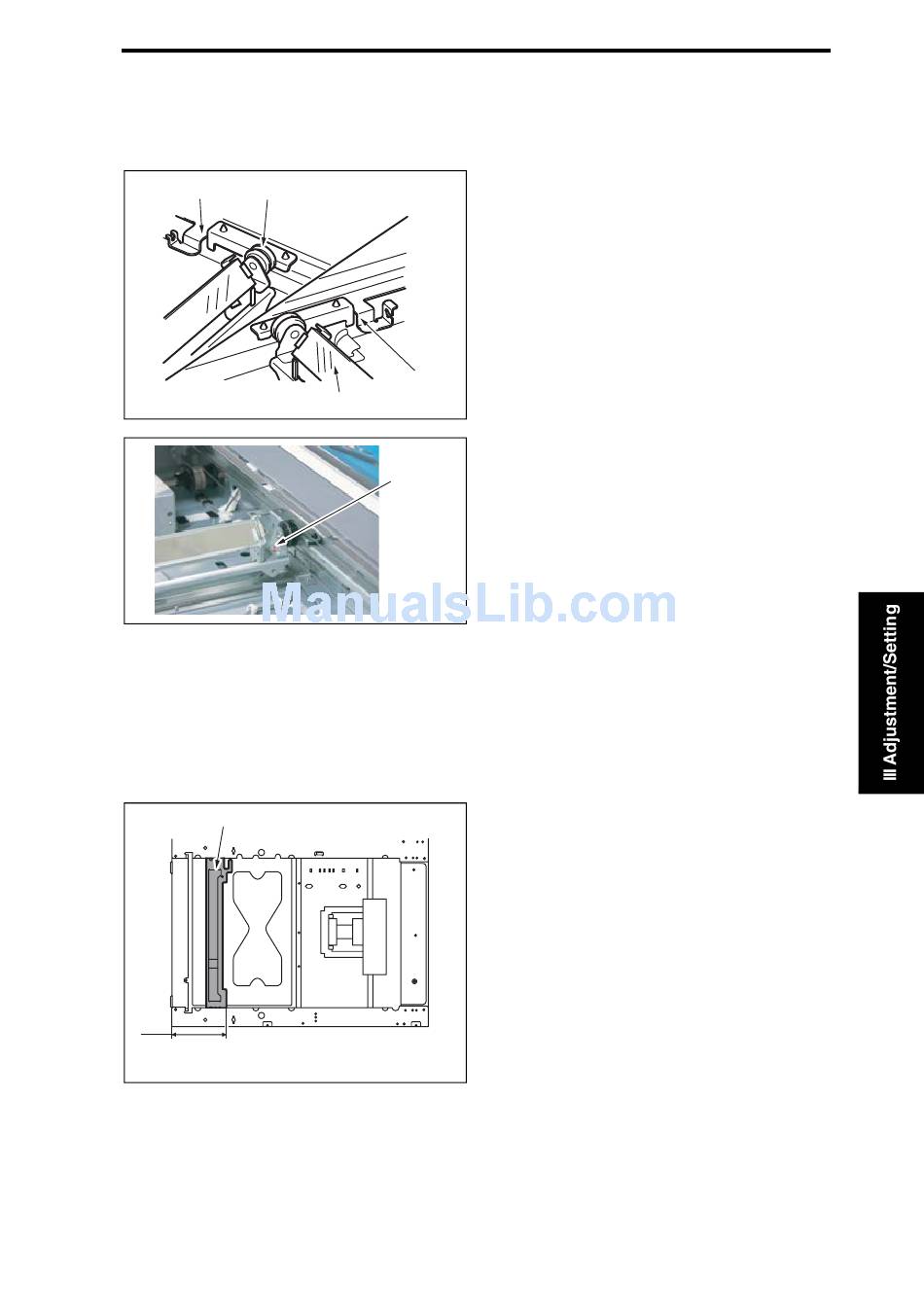

Focus Positioning of the Scanner and Mirrors Unit

This adjustment must be made in the following case:
• The Scanner Drive Cables have been rewound
[2] [1]
6.3

Scanner Position Adjustment

This adjustment must be made in the following case:
• The Scanner Drive Cables have been rewound.
• Focus Positioning of the Scanner and Mirrors Unit must be completed.
[1]
118 mm
[2]
[1]
4036fs3038c0
[3]
4036fs3049c0
4036fs3041c0
3-101
Mechanical adjustment
1. Slide the Mirrors Unit [1] to the cen-
ter until it is pressed up against the
cutouts in the rails [2].
2. If the Mirrors Unit is not pressed up
against the cutouts, loosen the
adjusting screw (to which red paint is
applied) [3] of the Mirrors Unit and
press the carriage up against the
cutouts. Then, tighten the adjusting
screw.
1. Slide the Mirrors Unit [1] to the posi-
tion shown on the left.
