Ir Upper Front Cover/Ir Upper Right Cover/Ir Upper Rear Cover - Konica Minolta Bizhub C350 Service Manual

bizhub C350 Field Service Ver.2.0 April 2004
[12]
[11]
[13]

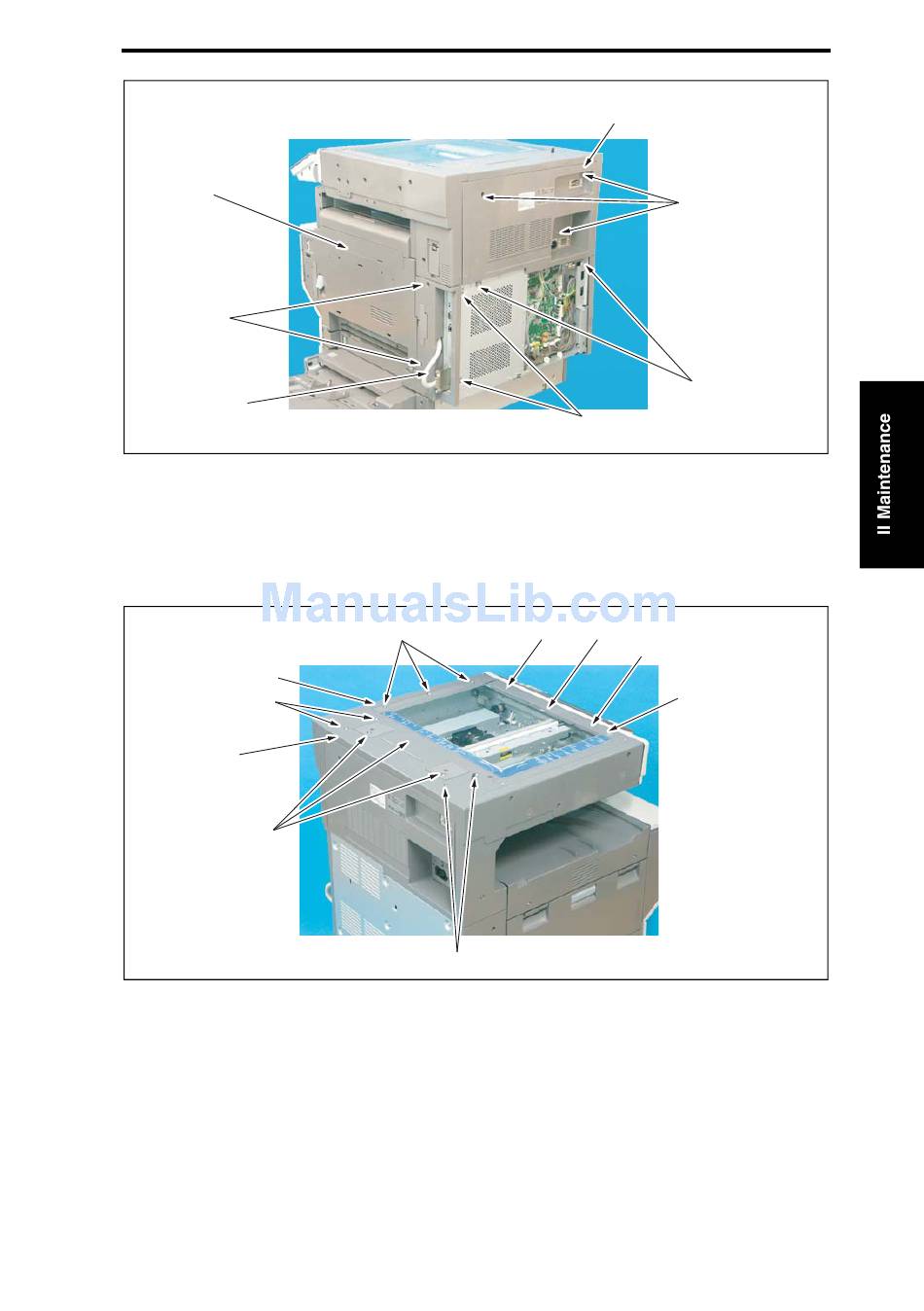

5. Remove five Screws [9], and remove the Rear Cover [10].
6. Remove four Screws [11].
7. Open the Right Door [12], and remove the Rear Right Cover [13].
4.3.5

IR Upper Front Cover/IR Upper Right Cover/IR Upper Rear Cover

[5]
[6]
[8]
[7]
1. Remove two Shoulder Screws [1] and a Screw [2], and remove the IR Upper Front
Cover [3].
2. Remove three Screws [4], and remove the IR Upper Right Cover [5].
3. Remove four Shoulder Screws [6] and three Screws [7], and remove the IR Upper Rear
Cover [8].
[1]
[4]
[6]
2-43
[10]
[9]
[9]
[11]
[2]
[1]
[3]
Other
4036fs2157c1
4036fs2158c1
