bizhub C350 Field Service Ver.2.0 April 2004
4.3.16
High Voltage Unit/2
[1]
[2]
[3]
[4]
[4]

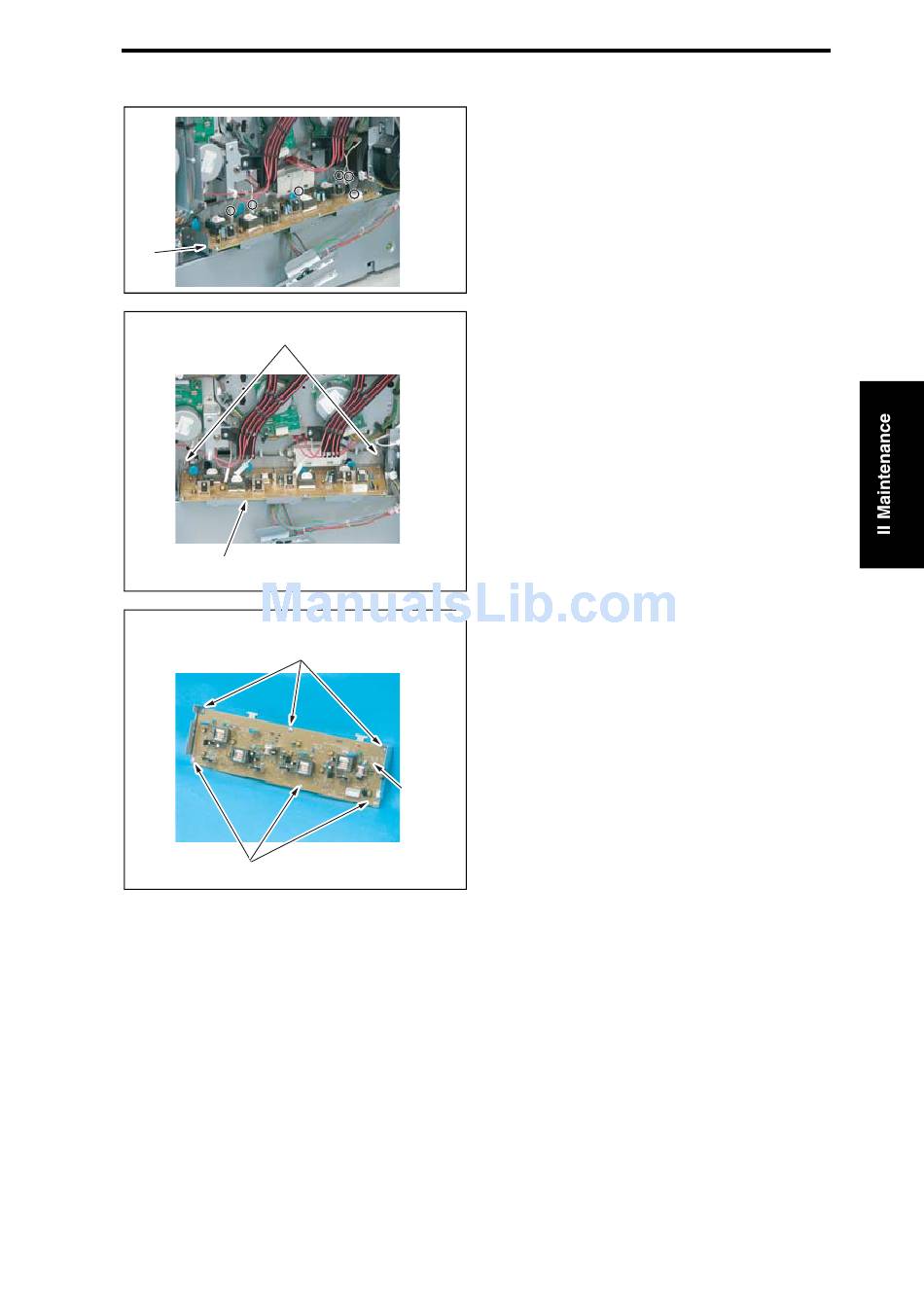

1. Remove the PWB Box.
☞ 2-76
2. Remove all the Connectors on the
High Voltage Unit/2 [1].
4036fs2068c1
3. Remove two Screws [2], and remove
the High Voltage Unit/2 Assy [3].
4036fs2069c1
4. Remove six Screws [4], and remove
the High Voltage Unit/2 [5].
[5]
4036fs2070c1
2-53
