bizhub C350 Field Service Ver.2.0 April 2004
4.4

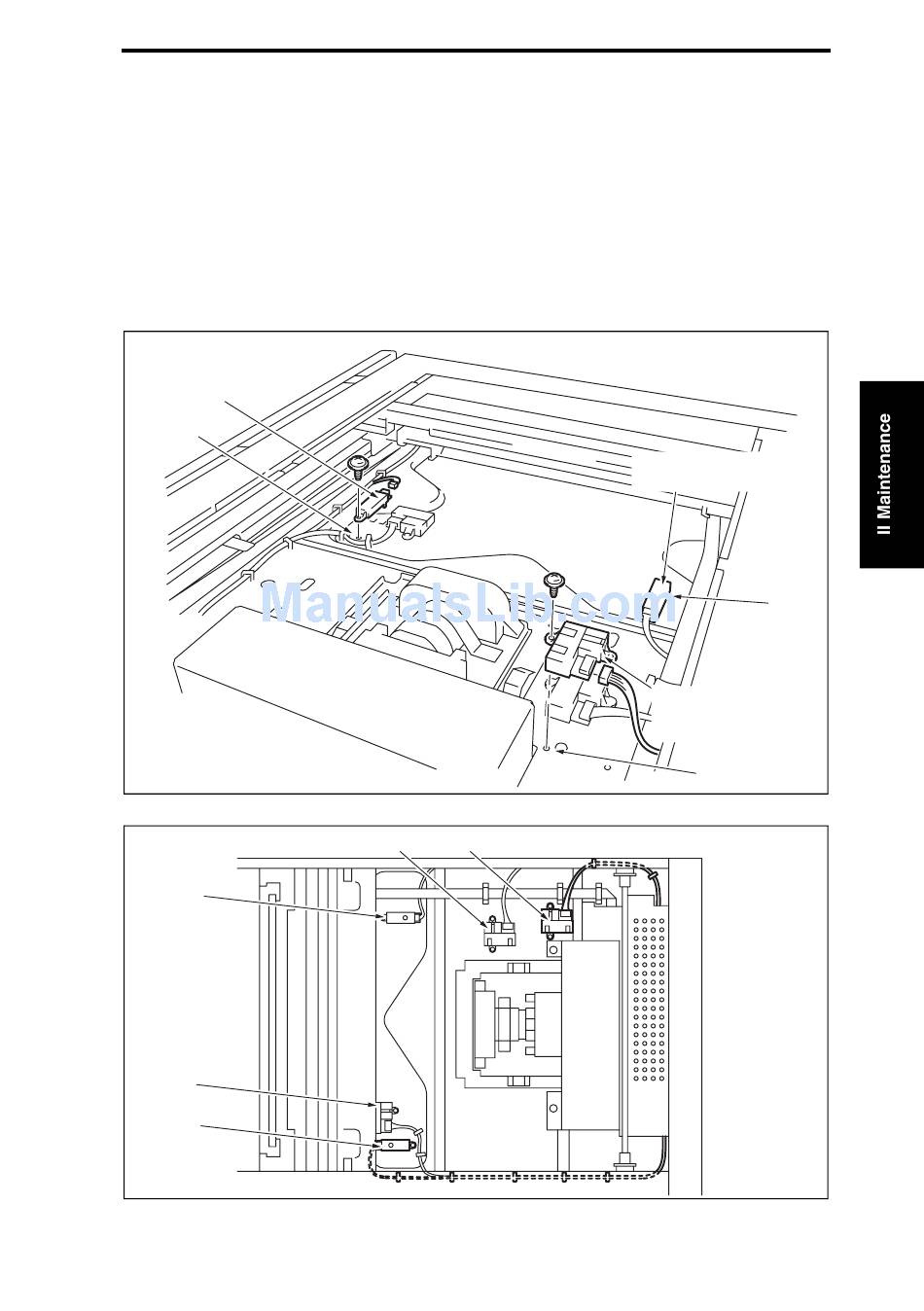

Mount the optional original size detecting sensors

NOTE
• When an Original Size Detecting Sensor has been added, select "SET" in "Org.
Detect Option Sensor" of "System Input" available from the "Tech. Rep. Mode"
and run "Org. Detect Sensor" of "Machine Adjust."
1. Remove the PWB Cover.
☞ See the procedures 1 to 4 of 2-48 "Image Processing Board".
2. Connect the connector of the Original Size Detecting Sensor to be added to the Image
Processing Board.
3. Replacing the PWB Cover.
4. Mount the Original Size Detecting Sensor (option).
CD2
Optional for the
Europe, U.S.A., Taiwan
G
<How the Harness should be Placed>
FD1
CD1
CD2
FD2 FD3
2-95
Other
FD1
Optional for the U.S.A.
A
FD3
Optional for the
Europe, U.S.A., Taiwan
E
