2282 C 132: V
HAPTER OICE
One-to-One Binding
between FXS and FXO
n
E C
NTITY ONFIGURATION
Network requirements
Router A and Router B are both connected to an IP network and a PSTN.
■
Telephone A attached to Router A can make calls to Telephone B attached to
Router B over the IP network or the PSTN.
Usually, Telephone A makes calls to Telephone B over the IP network. In the
■
case that the IP network is unavailable, Telephone A selects the PSTN via the
bound FXO voice subscriber line to call Telephone B.
Network diagram

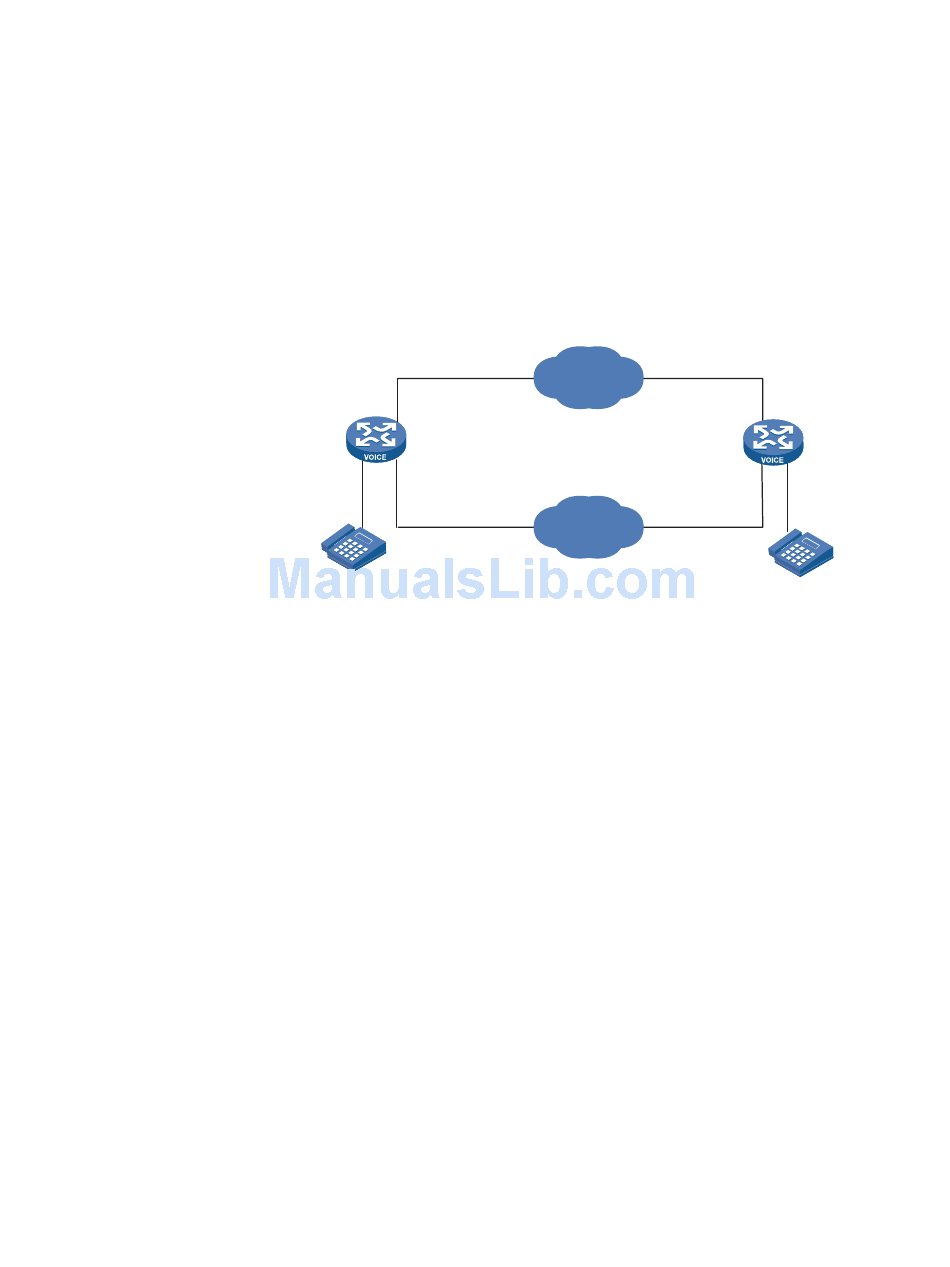

Figure 662 Network diagram for one-to-one binding between FXS and FXO
Router A
FXS:line 6/24
TelephoneA
0101001
Configuration idea
There is one-to-one binding between FXS and FXO voice subscriber lines.
■
When the IP network is available, the VoIP entity is preferably used to make
■
calls over the IP network.
When the IP network is unavailable, the POTS entity is used to make calls via
■
the bound FXO voice subscriber line.
Configuration procedure
Router A and Router B are both reachable
■
The configuration of interface IP addresses is omitted.
■
1 Configure Router A
<Sysname> system-view
[Sysname] voice-setup
[Sysname-voice] dial-program
# Configure a VoIP entity for IP calls and set the match template to "210...".
[sysname-voice-dial] entity 210 voip
[sysname -voice-dial-entity210] match-template 210....
[sysname -voice-dial-entity210] address ip 192.168.0.76
[sysname -voice-dial-entity210] quit
# Configure a POTS entity for the FXS voice subscriber line.
[sysname-voice-dial] entity 0101001 pots
[sysname-voice-dial-entity101001] match-template 0101001
IP network
192.168.0.71/24
FXO:line 6/0
PSTN
network
Router B
192.168.0.76/24
FXO:line 6/0
FXS:line 6/24
TelephoneB
2101002
