3Com MSR 50 Series Configuration Manual page 2353

Network diagram

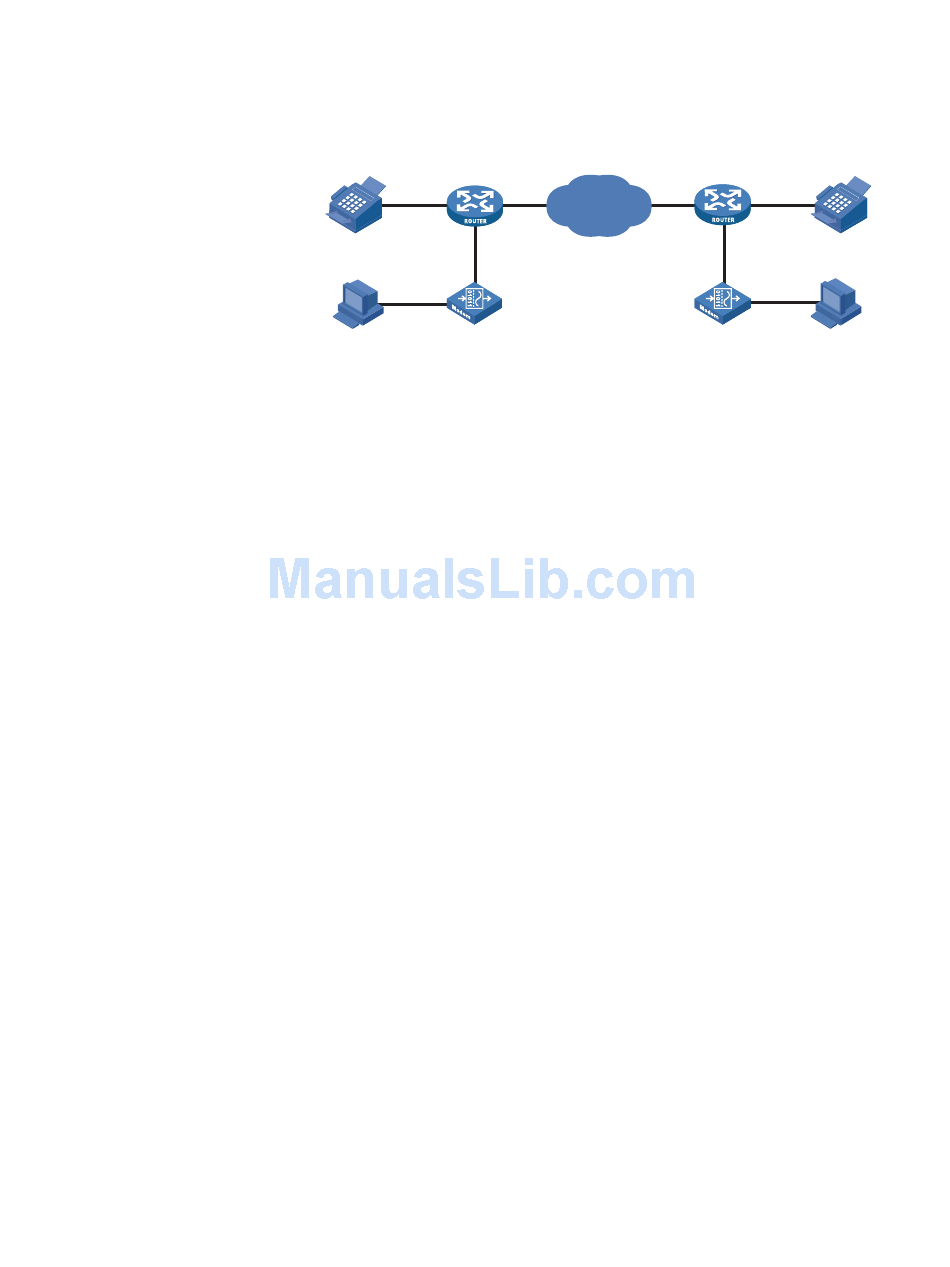

Figure 679 Network diagram for FoIP configuration
010- 1001
Line 1/1
City A
Fax
010- 1002
Configuration procedure
1 Configure Router A.
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 0755 voip
[RouterA-voice-dial-entity755] match-template 0755....
[RouterA-voice-dial-entity755] address ip 2.2.2.2
[RouterA-voice-dial-entity755] quit
[RouterA-voice-dial] entity 1001 pots
[RouterA-voice-dial-entity1001] match-template 0101001
[RouterA-voice-dial-entity1001] line 1/1
[RouterA-voice-dial-entity1001] quit
[RouterA-voice-dial] entity 1002 pots
[RouterA-voice-dial-entity1002] match-template 0101002
[RouterA-voice-dial-entity1002] line 1/0
2 Configure Router B.
<RouterB> system-view
[RouterB] voice-setup
[RouterB-voice] dial-program
[RouterB-voice-dial] entity 010 voip
[RouterB-voice-dial-entity10] match-template 010....
[RouterB-voice-dial-entity10] address ip 1.1.1.1
[RouterB-voice-dial-entity10] quit
[RouterB-voice-dial] entity 2001 pots
[RouterB-voice-dial-entity2001] match-template 07552001
[RouterB-voice-dial-entity2001] line 1/1
[RouterB-voice-dial-entity2001] quit
[RouterB-voice-dial] entity 2002 pots
[RouterB-voice-dial-entity2002] match-template 07552002
[RouterB-voice-dial-entity2002] line 1/0
Router A
1.1 .1.1/24
Internet
Line 1/0
Modem
FoIP Configuration Example
0755- 2001
Router B
2.2.2.2/24
Line 1/1
Line 1/0
0755 - 2002
Modem
2353
City B
Fax
