3.10 Replacing Maintenance
3.10.3

Replacing Wiper

● Tools & Jigs & Maintenance part
Name
Cleaner Head Assy
Phillips screwdriver No.2
Tweezers
This section describes the procedure to replace the maintenance part,Cleaner Head
Assy.
In this section, it is referred to as Wiper.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Move Carriage to the opposite side of Platen.
3.8.1 Releasing Carriage Lock
3

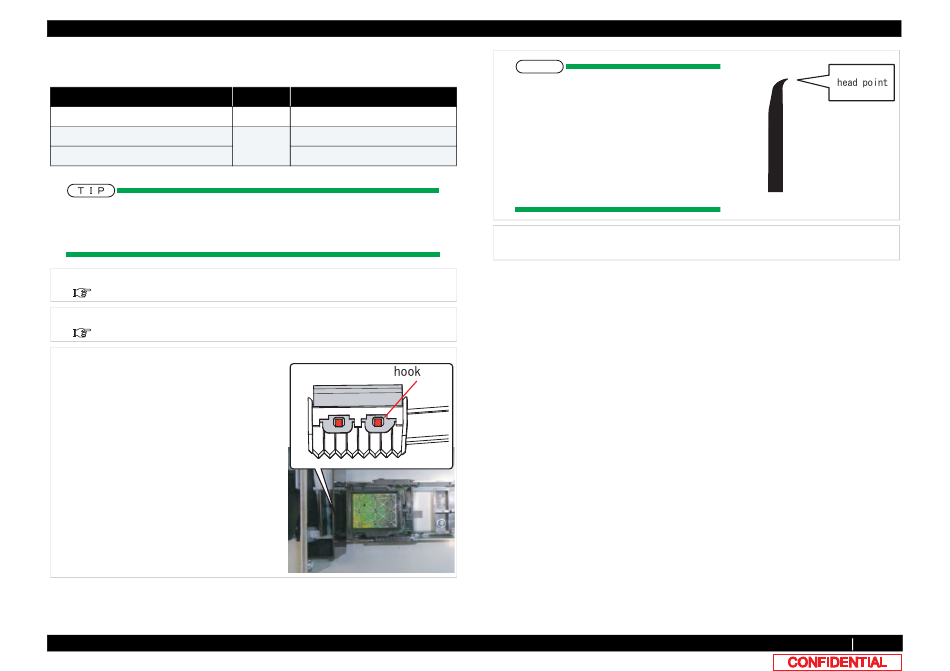

Remove the wiper by tweezers and so on.
3.10.3 Replacing Wiper
No. Remarks
DF-49687
Exploded View Maintenance
Generic -
products
-
NOTE
When reassembling the Wiper, pay
attention to the following.
• Do not touch the Wiper with bare
hands.
• Make sure that the Wiper gets no dust
or oil.
• Install the Wiper so that the point of the
Wiper is located to the observer's right
side.
4
To reassemble unit, reverse the removal
procedure.
VJ628XE-M-00
159
