3.8 Replacing Cursor section
3.8.6

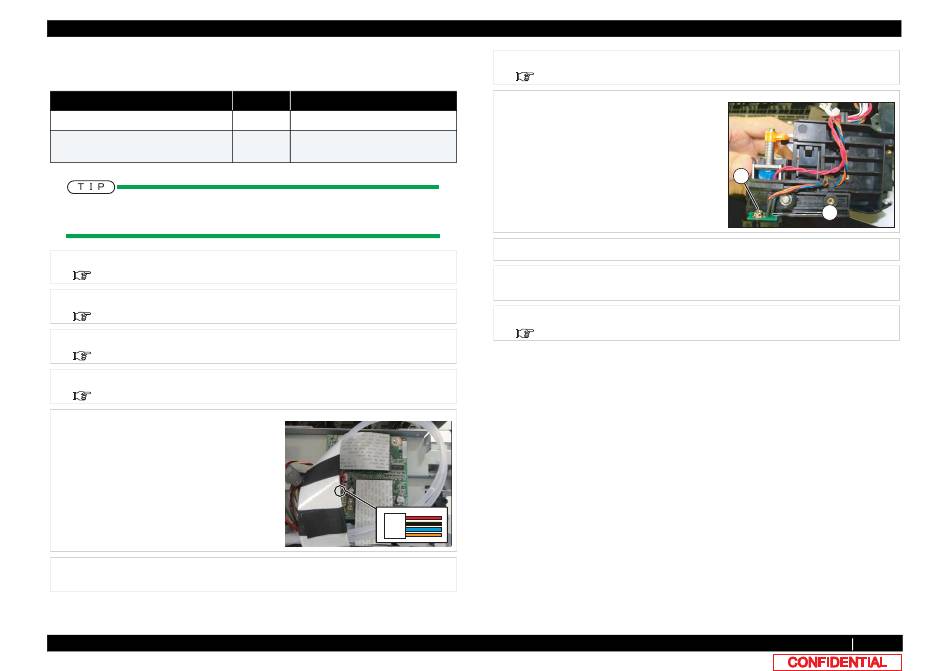

Replacing P_EDGE Sensor

● Tools & Jigs & Maintenance part
Name
P-Edge Sensor Assy
Phillips screwdriver No.2
This section describes the procedure to replace the maintenance part,P-Edge
Sensor Assy.In this section n this section, it is reffered to as P_EDGE Sensor.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Remove Top Cover.
3.2.1 Removing Top Cover
3
Remove Carriage Cover.
3.8.2 Removing Carriage Cover
4
Remove CR Board Cover.
3.8.3 Removing CR Board Cover
5
Remove P_EDGE Sensor from CR Board.
6
Remove P_EDGE Sensor from the clamps on
the path.
3.8.6 Replacing P_EDGE Sensor
No. Remarks
DG-43319 Exploded View Cursor
Generic -
products
J11
7
Remove Cutter Holder Assy.
3.8.9 Replacing Cutter Holder Assy
8
Remove the screw retaining P_EDGE Sensor.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : P_EDGE Sensor
9
Replace P_EGDE Sensor.
10
To reassemble unit, reverse the removal
procedure.
11
Perform various adjustments.
4.2 Adjustment Item
VJ628XE-M-00
A
B
121
