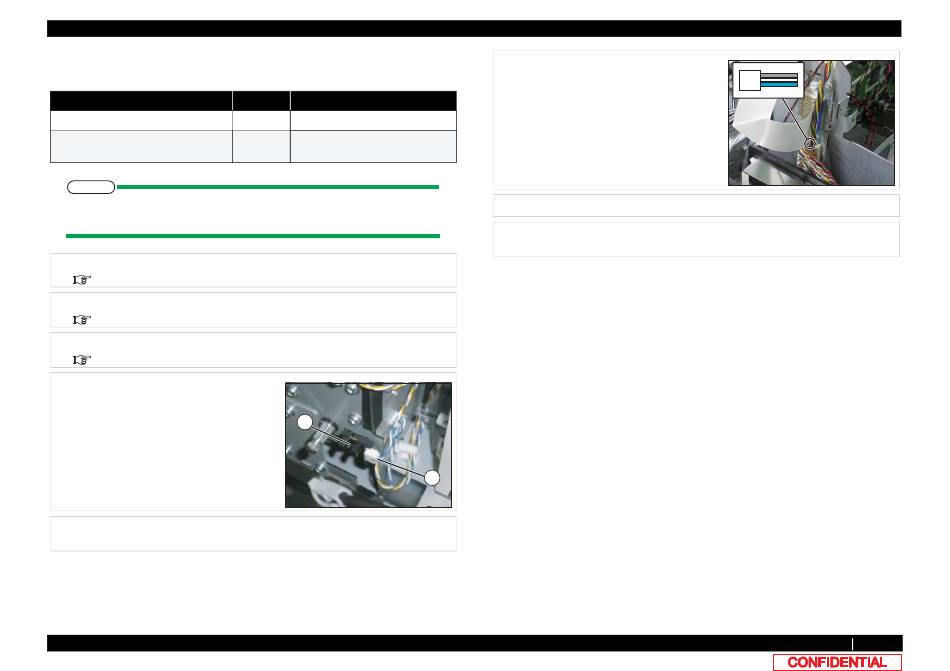

3.6 Replacing Y Rail part
3.6.6
Replacing Lever Sensor Cable
● Tools & Jigs & Maintenance part
Name
Lever Sensor Cable Assy
Phillips screwdriver No.2
NOTE
This section describes the procedure to replace the maintenance part, Lever Sensor
Cable Assy.In this section, it is reffered to as Lever Sensor Cable.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Removing Pump Stay.
3.11.1 Removing Pump stay
3
Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
4
Remove Lever Sensor Cable from Lever
Sensor.
A : Lever Sensor Cable
B : Lever Sensor
5
Remove Lever Sensor Cable from the clamps
on the path.
3.6.6 Replacing Lever Sensor Cable
No.
Remarks
DG-44692
Exploded View Y Rail Assy
Generic
-
products
B
6
Remove Lever Sensor Cable from JUNCTION
Board.
7
Replace Lever Sensor Cable.
8
To reassemble unit, reverse the removal
procedure.
A
VJ628XE-M-00
J15
99
