3.9 Replacing Cable Guide section
3.9.2

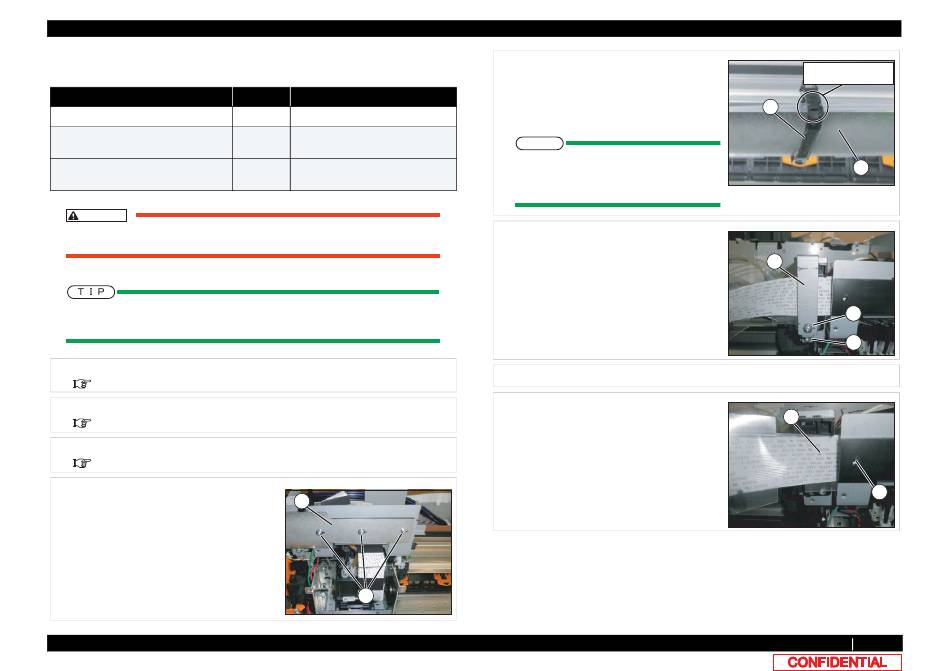

Replacing Tube Guide Film Assy

● Tools & Jigs & Maintenance part
Name
Tube Guide Film Assy
Phillips screwdriver No.2
slotted screwdriver（precision）
CAUTION
Work not to cut a hand etc. with Steel Bare, wearing gloves.
This section describes the procedure to replace the maintenance part, Tube Guide
Film Assy.In this section, it is reffered to as Tube Guide Film.
1
Remove Top Cover.
3.2.1 Removing Top Cover
2
Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
3
Remove CR Board Cover.
3.8.1 Releasing Carriage Lock
4
Remove the screws (3 pieces) retaining Steel
Bare.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : Steel Bare
3.9.2 Replacing Tube Guide Film Assy
No. Remarks
DG-44705 Exploded View Cable Guide
Generic -
products
Generic -
products
B
A
5
Remove the clamp that is the nearest to
Carriage.
A : Steel Bare
B : Clamp_Bare
NOTE
Work, while you press down Steel Bare by
hand. There is a possibility that it may be
injured by Steel Bare being over.
6
Remove the screws (2 pieces) retaining CR
FFC Fixing Plate.
A : CR_FFC Fixing Plate
B : Tapping screw M3ｘ8 P Tight cup
C : Tapping screw M3ｘ6 S Tight cup
7
Remove CR_FFC Fixing Plate.
8
Remove Tube Guide Film from CR Board
Base.
A : Tube Guide Film
B : CR Board Base
VJ628XE-M-00
Release the hook
with a slotted screwdriver
B
A
A
B B
C
A
B B
