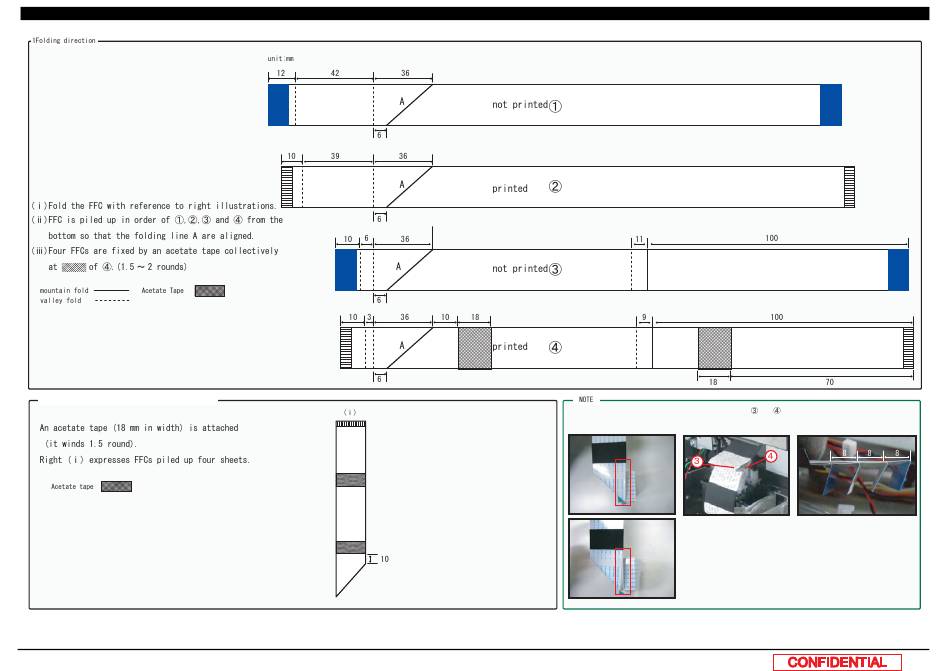

Folding Direction Head FFC
Folding Direction Head FFC
2 Means of Attachment of Acetate Tape and Ferrite Core
421P.11-421
Head side
When acetate tape is attached,
In the following part,
make sure FFCs are not
are bent in piles.
misalignment.
OK
OK
NG
NG
VJ628XE-M-00
CR side
and
The intervals of FFCs on CR board
connection side are 8 mm.
