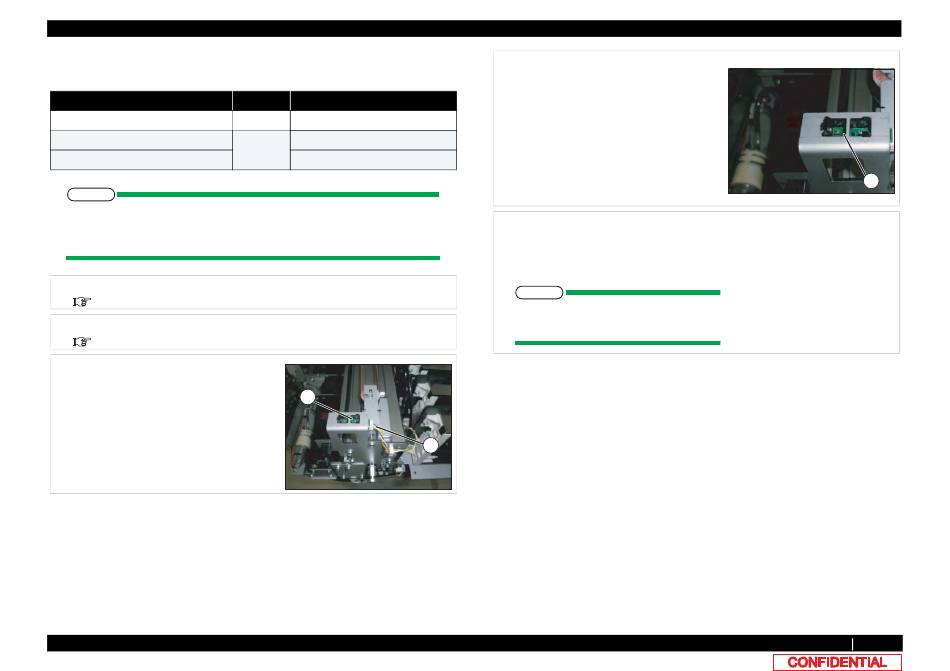

3.6 Replacing Y Rail part
3.6.4

Replacing CR Origin Sensor

● Tools & Jigs & Maintenance part
Name
CR_HP Sensor, Lever Sensor
Phillips screwdriver No.2
Thread locker
NOTE
• This section describes the procedure to replace the maintenance part,CR_HP
Sensor, Lever Sensor.In this section, it is reffered to as CR Origin Sensor.
• CR Origin Sensor is locked with Thread locker.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
3
Remove CR Origin Sensor Cable from CR
Origin Sensor.
A : CR Origin Sensor Cable
B : CR Origin Sensor
3.6.4 Replacing CR Origin Sensor
No. Remarks
DF-49471 Exploded View Y Rail Assy
Generic -
products
Three bond401
B
4
Remove CR Origin Sensor.
A : CR Origin Sensor
5
Replace CR Origin Sensor.
6
To reassemble unit, reverse the removal
procedure.
NOTE
Apply Thread Locker to the new CR
Origin Sensor when installing it.
A
