3.4 Replacing Frame section
3.4.4

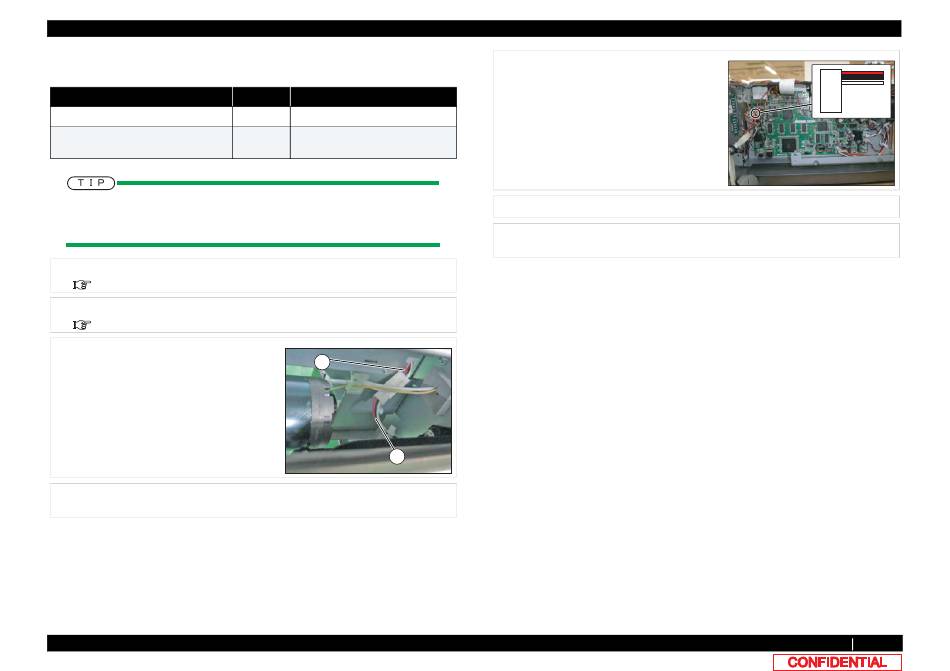

Replacing Adsorption Fan Cable
● Tools & Jigs & Maintenance part
Name
Adsorption Fan Cable Assy
Phillips screwdriver No.2
This section describes the procedure to replace the maintenance part, Adsorption
Fan Cable Assy.
In this section, it is referred to as Adsorption Fan Cable Assy.
1
Remove Top Cover.
3.2.1 Removing Top Cover
2
Removing L Side Cover.
3.2.2 Removing Side Cover
3
Remove Adsorption Fan Cable from
Adsorption Fan.
A : the cable of Adsorption Fan
B : Adsorption Fan Cable
4
Remove Adsorption Fan Cable from the
clamps on the path.
3.4.4 Replacing Adsorption Fan Cable
No.
Remarks
DG-44694
Exploded View Frame L•Scroller
Generic
-
products
B
A
5
Remove Adsorption Fan Cable from MAIN
Board.
6
Replace Adsorption Fan Cable.
7
To reassemble unit, reverse the removal
procedure.
VJ628XE-M-00
J13
75
