5.6 Adjustment Menu
5.6.7

Margin adjustment Menu

Perform printing and cut the media. Enter the distance between the front sensor heads, cutter
heads, and edge sensor heads (print start position), and then adjust the top, bottom, and side
margins.
Default values are as it is the following table.
Item
TopMargin
BottomMargin
SideMargin
[Enter]
[Cancel]
[Enter]
After printing
[>]
1
Set media as necessary.
2
After media is set, the printer prints out band feed correction adjustment patterns in the
following modes.
• Black, 1 pass, Uni-D, 360 dpi, 320cps, VSD4, Large dot
5.6.7 Margin adjustment Menu
default
values
40.0mm
5.0mm
5.0mm
Indication during media cut and the media
detection
Indication during media cut and the media
detection
[<]
Set by 0.1mm increments using
+/- key
Top margin 35.0mm~45.0mm
Bottom margin 0.0mm~10.0mm
SIde margin 0.0mm~10.0mm
At "Side margin"
Press [Enter] ,and
storing an input level
3
Check the printed margin adjustment patterns for the measurement.

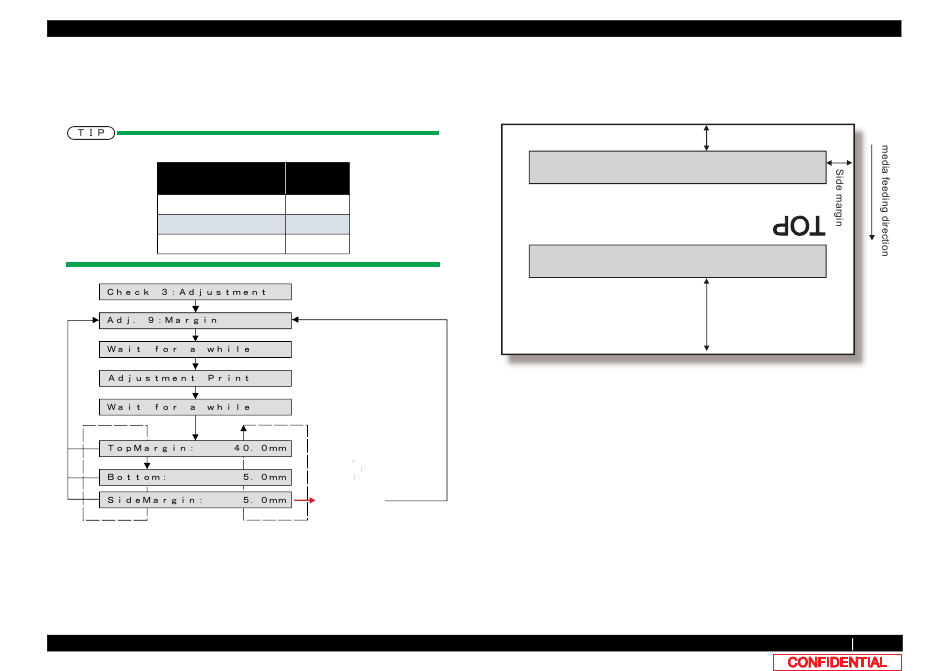

1 : Top margin (Front sensor position)
2 : Bottom margin (Rear sensor position)
3 : Side margin (Print start position)
Measure each margins with a scale and so on.
4
Enter each measured values as the parameter.Prints put the margin adjustment pattern
again.
5
Measure the followings on the print result and check that the print margins are adjusted.
1:Top margin
2:Bottom margin
3:Side margin
6
If the margins are not adjusted, repeat (2) to (5).
VJ628XE-M-00
Bottom margin
Top margin
305
