TECHNICAL INFORMATION
Release Date
Important
Preventive Action report No

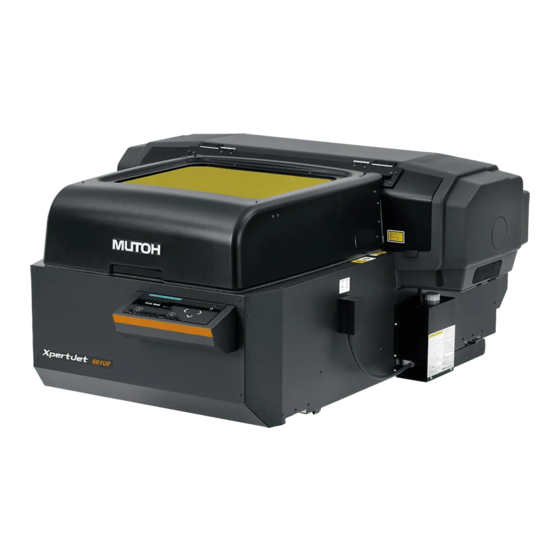

Model
VJ-series/XPJ-series
A kit for cleaning and lubricating the roller guide is supplied as a consumable item for the VJ series
and XPJ series. (Some models are excluded.)
[Background]
If the printer runs while the roller guide on the Y rail is dirty, a noise may occur during printing or
the cursor roller may break down before its life time. Keeping the roller guide clean is a good way to
use the printer stably in a good condition.
[Item]
Product code
: 1U021220
Product name
: IJ-RLCLNK-01
Description
: Rail Cleaner Kit
Note
: Rail Cleaner tool (1 pc), Oil (3 ml)
[How to use]
Refer to the attached manual. (IJ-RLCLNK-01-A-00.pdf)
Rail Cleaner Kit
November 22, 2021
☐
-
Title
1 / 2
MUTOH INDUSTRIES LTD.
3-1-3, Ikejiri, Setagaya-Ku,
Tokyo, 154-8560 JAPAN
Bulletin No
Maintenance parts
TB0133
☐
-
Advertisement
Table of Contents
Related Manuals for MUTOH VJ Series
Summary of Contents for MUTOH VJ Series
- Page 1 Title Model VJ-series/XPJ-series A kit for cleaning and lubricating the roller guide is supplied as a consumable item for the VJ series and XPJ series. (Some models are excluded.) [Background] If the printer runs while the roller guide on the Y rail is dirty, a noise may occur during printing or the cursor roller may break down before its life time.
- Page 2 MUTOH INDUSTRIES LTD. 3-1-3, Ikejiri, Setagaya-Ku, Tokyo, 154-8560 JAPAN [Usable Models] XPJ-series XPJ-461UF, 661UF XPJ-1641SR/SRK, 1682SR/SRK, 1682WR/WRK, 1642WR/WRK VJ-series VJ-628, 628X VJ-1604X/WX VJ-1614 VJ-1618 VJ-1624/W, 1624X/WX, 1924W/WX VJ-1628X, 2628, 2628X VJ-1638/W, 1638X/WX, 1938X/WX, 2638, 2638X VJ-1638TX, 1938TX VJ-1948WX VJ-1628TD, 2628TD...
- Page 3 If irritation is present, seek medical advice/attention immediately. Use only dedicated carriage rail oil. 1. Check that the power of the printer is off. 2. Remove paper if it is loaded in the printer. 3. Open the front cover. November, 2021 IJ-RLCLNK-01-A-00 MUTOH INDUSTRIES LTD.
- Page 4 ・ Lightly press the two protrusions of the cleaner against the rail. 6. Clean the running surface on the lower side of carriage rail in the same way. 7. Close front cover. When oil dropped in the printer, wipe it clean. November, 2021 IJ-RLCLNK-01-A-00 MUTOH INDUSTRIES LTD.
