3.11 Replacing IH
3.11.4

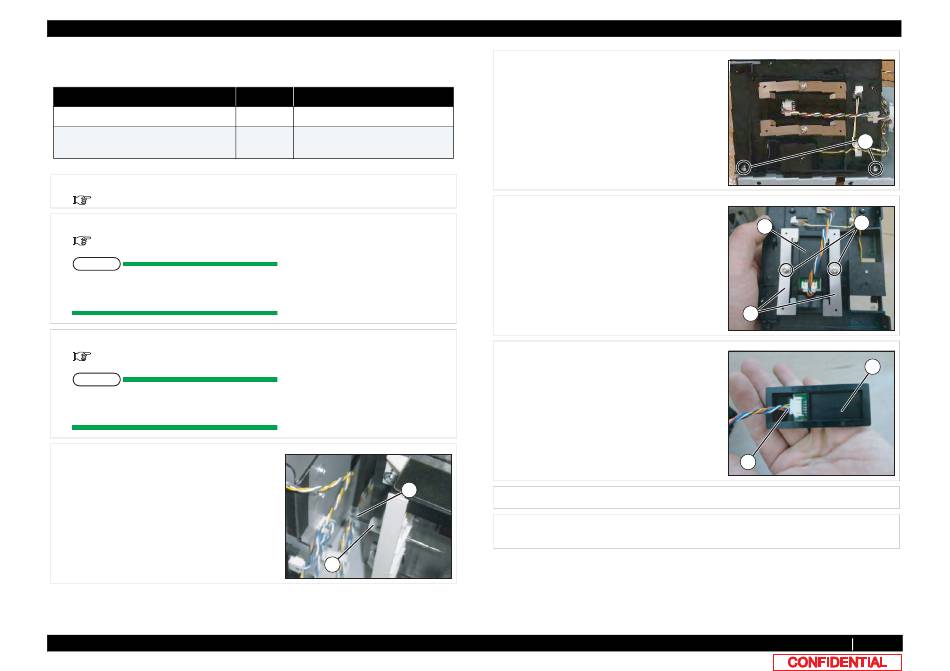

Replacing INK ID Board Assy

● Tools & Jigs & Maintenance part
Name
INK ID Board Assy
Phillips screwdriver No.2
1
Removing Side Cover (R or L).
3.2.2 Removing Side Cover
2
Removing Pump Stay.
3.11.1 Removing Pump stay
NOTE
This procedure is needed for replacing R-
side.
3
Removing Heater Board Stay.
3.11.2 Removing Heater Board Stay
NOTE
This procedure is needed for replacing L-
side.
4
Loosen the joint screw and remove the ink
tube (fitting) from Cartridge holder.
A : Joint Screw
B : L Fitting
3.11.4 Replacing INK ID Board Assy
No. Remarks
DF-43968
Exploded View IH R/IH L
Generic -
products
B
A
5
Remove the screws (2 pieces) retaining
Cartridge Holder to Cartridge Base.
A : Tapping screw M3ｘ12S Tight cup
6
Remove the screws (2 pieces) retaining
Holder Pressure Spring (2 pieces).
A : Holder Pressure Spring
B : P Tight cupM3ｘ6
C : INK ID Board Assy
7
Remove Holder Pressure Spring.
8
Remove INK ID Board Assy.
9
Remove INK ID Cable Assy from INK ID Board
Assy.
A : INK ID Cable Assy
B : INK ID Board Assy
10
Replace INK ID Board Assy.
11
To reassemble unit, reverse the removal
procedure.
VJ628XE-M-00
A
B
C
A
B
A
