3.8 Replacing Cursor section

3.8.18 Replacing Head FG Assy

● Tools & Jigs & Maintenance part
Name
Head FG Assy
Phillips screwdriver No.2
slotted screwdriver
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Remove Carriage Cover.
3.8.2 Removing Carriage Cover
3
Remove CR Board Cover.
3.8.3 Removing CR Board Cover
4
Remove Cutter Holder Assy.
3.8.9 Replacing Cutter Holder Assy
5

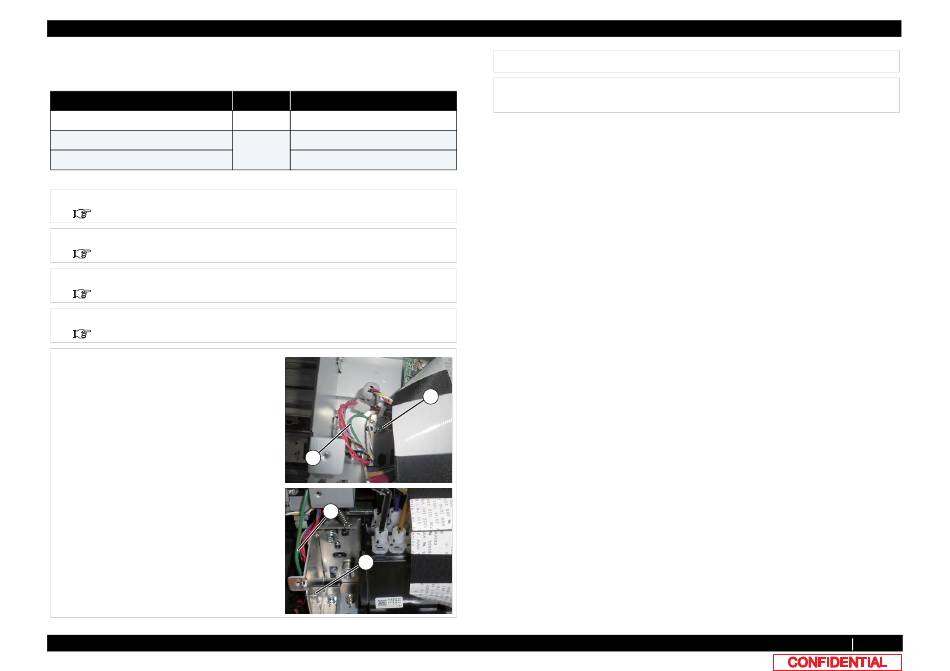

Removing the screws (2 pieces) retaining
Head FG Assy.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : Head FGAssy
3.8.18 Replacing Head FG Assy
No. Remarks
DF-49018 Exploded View Head Base
Generic -
products
-
B
B
A
6
Replace Head FG Assy.
7
To reassemble unit, reverse the removal
procedure.
A
VJ628XE-M-00
145
