5.3 Operations in Self-Diagnosis Mode
5.3.2

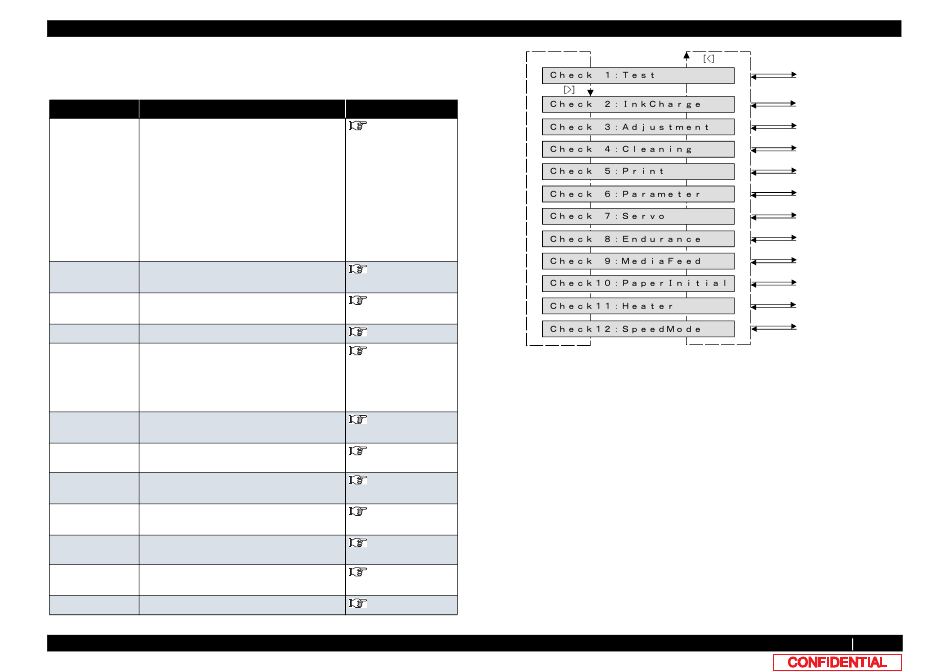

Diagnosis Items in Self-Diagnosis Menu

The self-diagnosis menu includes the following diagnosis items.
Diagnosis item Contents
Test Display the following items on Operation
panel.
Memory size
Firmware version
Panel
Sensor
Encoder
Fan
History
Head waveform
Time Check
InkCharge Performs initial cleaning of Print head and ink
charging.
Adjustment Head Adjustment, Sensor Position,
Sensitivity adjustment
Cleaning Performs cleaning of Print head.
Print Performs printing of the following items:
Adjustment pattern ALL
Parameter ALL
Error history
S/C Log
Parameter Performs the setting and initialization of the
adjustment parameter.
Servo Performs setting for Servo motor.
Endurance Performs endurance running of the printer
mechanism.
MediaFeed The media is fed forward and backward, and
then cut.
MediaInitial Performs media detection setting.
Heater The status of the sensors related to the
heater is displayed on the panel.
SpeedMode Set the print speed for user mode.
5.3.2 Diagnosis Items in Self-Diagnosis Menu
Reference
"5.4 Test Menu
"5.5 Ink Charging
Menu
"5.6 Adjustment
Menu
"5.7 Cleaning Menu
"5.8 Sample printing
Menu
"5.9 Parameter
Menu
"5.10 Servo Setting
Menu
"5.11 Endurance
Running Menu
"5.12 Media Feed
Menu
"5.13 Media Initial
Menu
"5.14 Heater
"5.15 Speed mode
VJ628XE-M-00
[Enter]
Test Menu
[Cancel]
InkCharge Menu
Adjustment Menu
Cleaning Menu
Print Menu
Parameter Menu
Servo Menu
Endurance Menu
PaperFeed Menu
PaperInitial Menu
Heater Menu
SpeedMode Menu
