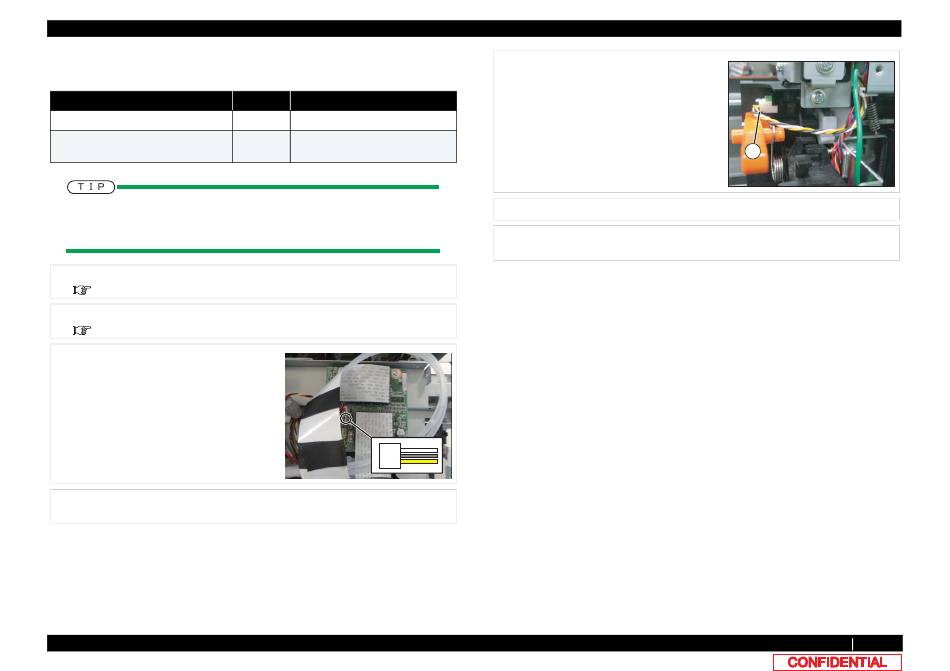

3.8 Replacing Cursor section
3.8.8

Replacing PG Origin Sensor Cable

● Tools & Jigs & Maintenance part
Name
PG Origin Sensor Cable Assy
Phillips screwdriver No.2
This section describes the procedure to replace the maintenance part,PG Origin
Sensor Cable.
In this section, it is reffered to as PG Origin Sensor Cable.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Remove CR Board Cover.
3.8.3 Removing CR Board Cover
3
Remove PG Origin Sensor Cable from CR
Board.
4
Remove PG Origin Sensor Cable from the
clamps on the path.
3.8.8 Replacing PG Origin Sensor Cable
No. Remarks
DG-43315 Exploded View Cursor
Generic -
products
J12
5
Remove PG Origin Sensor Cable from PG
Origin Sensor.
A : PG Origin Sensor Cable
6
Replace PG Origin Sensor Cable.
7
To reassemble unit, reverse the removal
procedure.
VJ628XE-M-00
A
