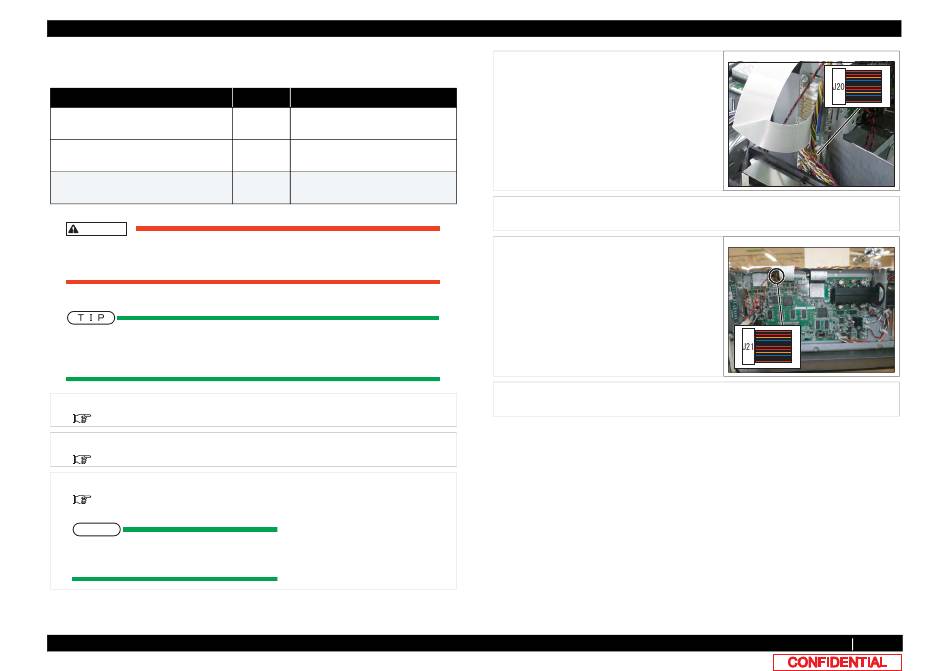

3.5 Replacing Board Base section
3.5.12
Replacing JUNC_ID Cable
● Tools & Jigs & Maintenance part
Name
JUNC_ID Cable Assy
JUNC_ID Cable 2Assy
Phillips screwdriver No.2
CAUTION
Unplug Power cable set before replacing parts. There may be a risk of electric shock
by standby electricity.
This section describes the procedure to replace the maintenance
part,JUNC_IDCable Assy and JUNC_ID Cable 2 Assy. In this section, it is referred
to as JUNC_ID Cable
1
Remove Top Cover.
3.2.1 Removing Top Cover
2
Replace R Side Cover or L Side Cover.
3.2.2 Removing Side Cover
3
Removing Pump Stay.
3.11.1 Removing Pump stay
NOTE
This procedure is needed for replacing R-
side.
3.5.12 Replacing JUNC_ID Cable
No.
Remarks
DG-44717
Exploded View Board Box
(for R)
DG-44718
Exploded View Board Box
(for L)
Generic
-
products
4
Remove JUNC_IDCable from JUNCTION
board.
5
Remove JUNC_ID Cable from clamps on the
path.
6
Remove JUNC_IDCable from MAIN board.
R side: J21
L side: J22
7
To reassemble unit, reverse the removal
procedure.
